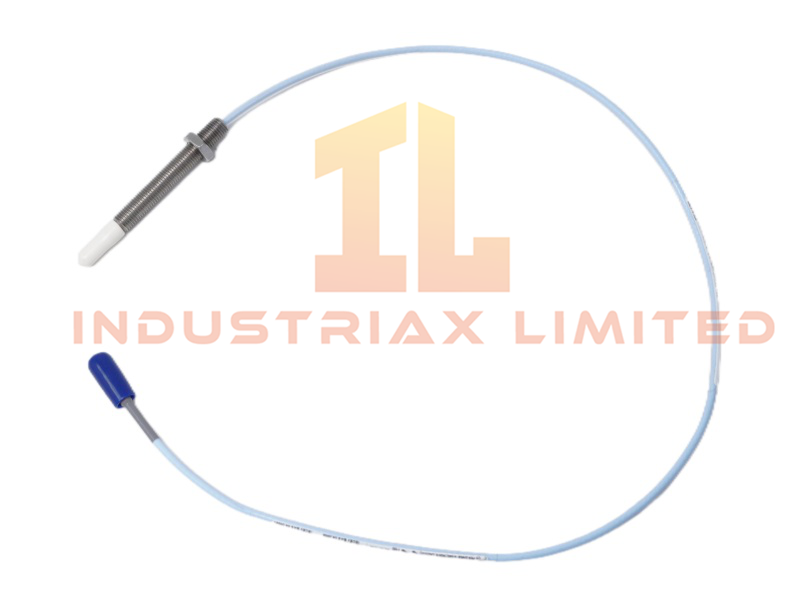

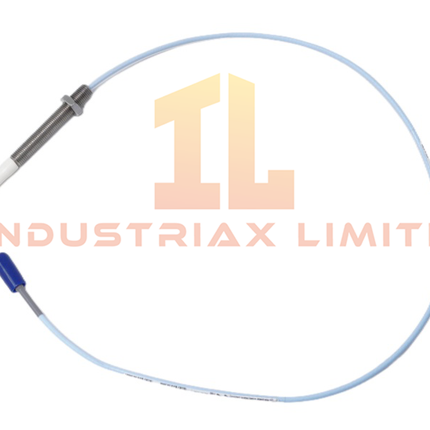

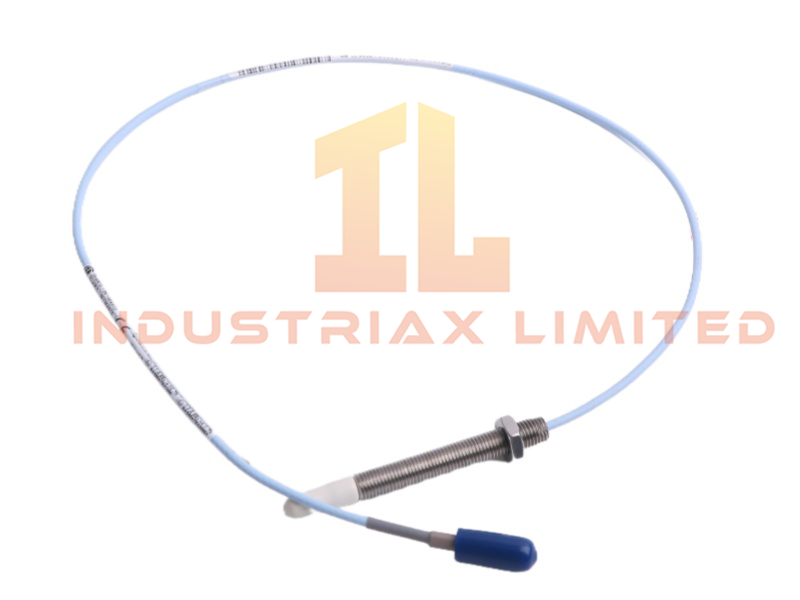

The Bently Nevada 330903‑00‑04‑05‑02‑CN proximity probe assembly is part of the 3300 NSv (Narrow Side‑View) transducer system, engineered for precise shaft displacement and vibration measurement in compact or restricted‑access machinery. This model provides stable signal transmission and secure mechanical connections, ensuring dependable performance in demanding industrial environments.
Technical Specifications
| Parameter |
Specification |
| Model |
330903‑00‑04‑05‑02‑CN |
| Product Type |
3300 NSv Proximity Probe Assembly |
| Brand |
Bently Nevada |
| Weight |
0.06 kg |
| Dimensions |
1.8 × 1.6 × 123 cm |
| Thread Compatibility |
1/4‑28, 3/8‑24, M8×1, M10×1 |
| Reverse‑Mount Support |
3/8‑24 or M10×1 |
| Connector Type |
Gold‑plated brass ClickLoc |
| Pull Strength |
220 N (50 lb) CableLoc retention |
| System Compatibility |
3300 NSv Proximity Transducer System, TSI |
| Condition |
New |
| Origin |
USA |
| MOQ |
1 |
| Availability |
In Stock |
| HS Code |
8537101190 |
| Approvals |
CN‑specific industrial certifications |
Functional Description
The 330903‑00‑04‑05‑02‑CN probe assembly is designed to interface with 3300 NSv extension cables and Proximitor sensors, forming a complete transducer chain for shaft vibration and position monitoring. Its compact NSv design is optimized for small‑diameter bearing housings and limited‑clearance installations.
Gold‑plated ClickLoc connectors ensure a secure, vibration‑resistant connection that prevents accidental loosening. The TipLoc molding process reinforces the probe tip, improving mechanical durability, while CableLoc technology provides high tensile strength to protect against cable pull‑out during installation or maintenance.
The probe supports multiple thread configurations, enabling integration with armored or unarmored housings. Connector protectors are recommended to prevent moisture ingress and maintain signal integrity in harsh environments.
Application Scenarios
-
Small and medium‑frame turbines
-
Gearboxes with limited mounting space
-
Pumps, compressors, and motors requiring NSv‑type probes
-
High‑vibration or moisture‑prone industrial environments
FAQ
Q: What systems is this probe compatible with? A: It is designed for the 3300 NSv Proximity Transducer System and integrates with matching extension cables and Proximitor sensors.
Q: Does it support reverse‑mount installations? A: Yes. Reverse‑mount configurations using 3/8‑24 or M10×1 threads are supported.
Q: What ensures the connector will not loosen? A: The ClickLoc mechanism locks the connector in place, preventing vibration‑induced loosening.
Q: Is this model approved for CN‑regulated environments? A: Yes. It meets CN‑specific industrial compliance requirements.
