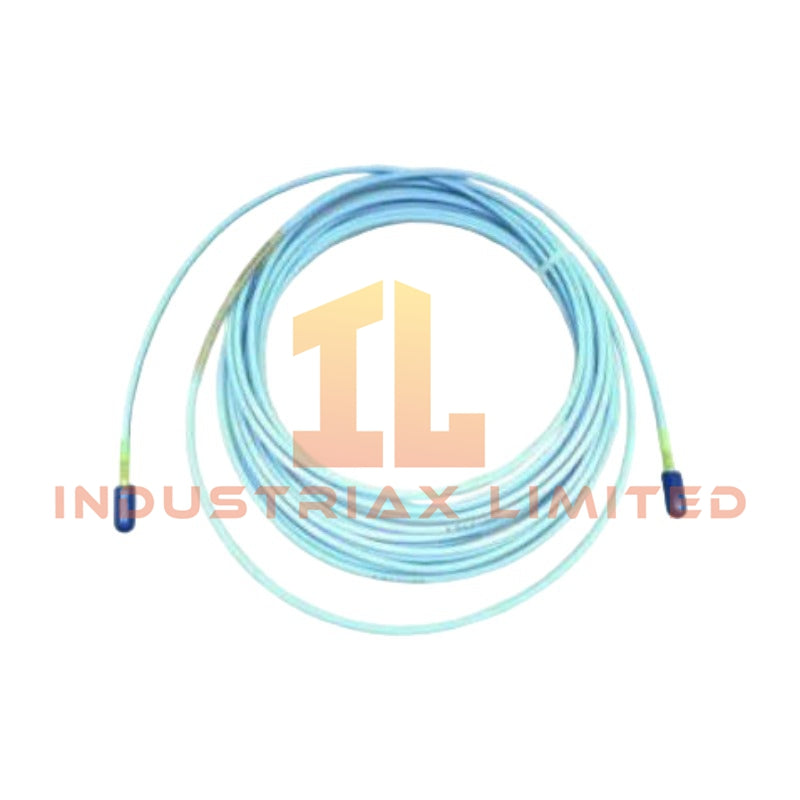

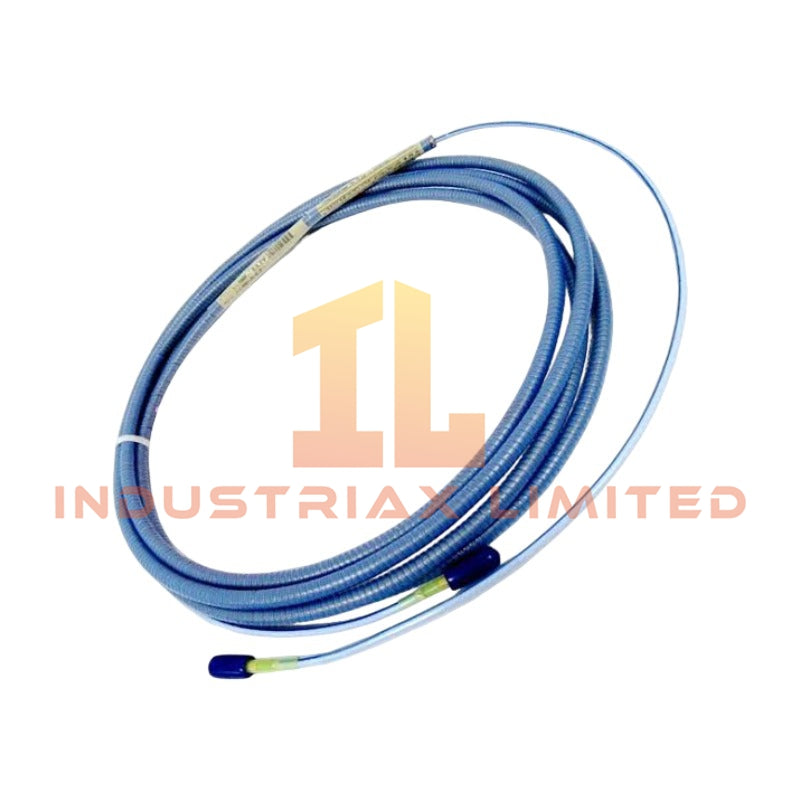

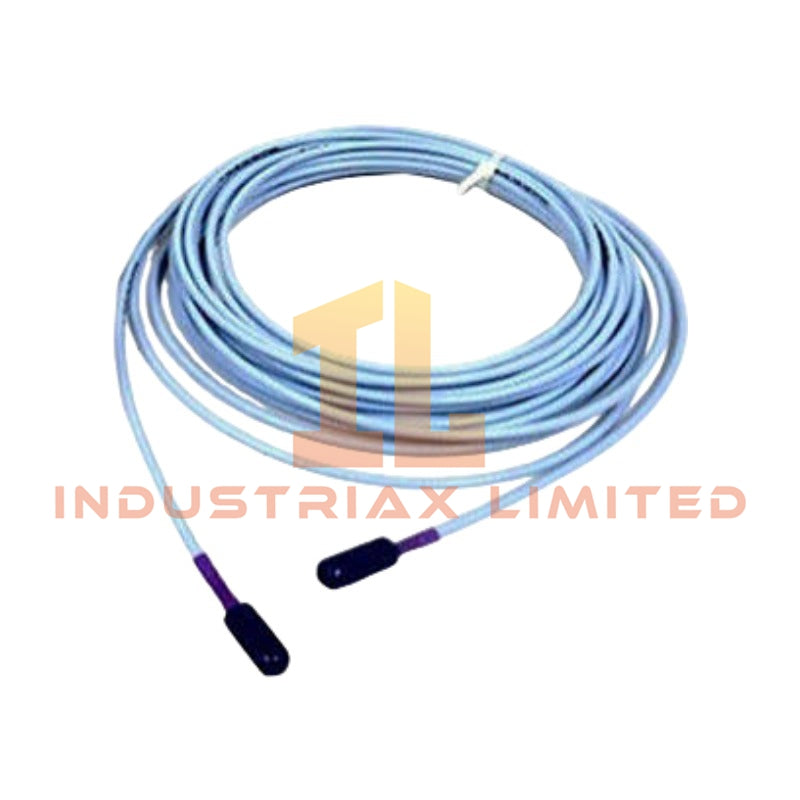

Bently Nevada 330854-040-24-00 3300 XL 25 mm Extension Cable
The Bently Nevada 330854-040-24-00, also cataloged as the 330854 3300 XL 25 mm Extension Cable, provides direct signal connection between a 25 mm proximity probe and a Proximitor Sensor within the 3300 XL Transducer System.
Hardware Specifications
Parameter
Specification
Model
330854-040-24-00
Brand
Bently Nevada
Product Type
3300 XL 25 mm Extension Cable
Origin
USA
Weight
0.44 kg
Dimensions
10 x 7.5 x 5.2 cm estimated shipping size
Operating Temp
-35 deg C to +200 deg C
Storage Temp
-35 deg C to +200 deg C
Cable Length
4.0 metres (13.1 feet)
Cable Construction
High Temperature FluidLoc cable
Armor Option
High Temperature FluidLoc cable
Probe Case Material
AISI 304 stainless steel
Power Consumption
Passive cable assembly, no external power consumption
Tariff Code
8537101190
Eddy-Current Signal Transmission and Rotor Dynamics Application
The 330854-040-24-00 extension cable transfers eddy-current probe signals between the 3300 XL 25 mm probe and the Proximitor Sensor. Therefore, the cable maintains the electrical characteristics required for shaft displacement measurement and rotor dynamics monitoring.
The cable assembly supports stable probe scaling performance by maintaining the impedance and signal path requirements of the 3300 XL proximity system. In addition, the high temperature FluidLoc cable construction allows installation in elevated temperature environments where standard cable jackets are unsuitable.
The stainless steel probe case material provides mechanical protection for the connected probe assembly. Furthermore, the cable design maintains signal integrity for vibration, axial position, and differential expansion measurement circuits.
Frequently Asked Questions
Q: What system components connect with the 330854-040-24-00 cable? A: The cable connects a 3300 XL 25 mm proximity probe to a compatible 3300 XL Proximitor Sensor in the proximity monitoring system.
Q: Does the 330854-040-24-00 require external power? A: No. The extension cable is a passive electrical connection component and does not consume external power.
Q: What environmental condition does this cable support? A: The cable supports operating and storage temperatures from -35 deg C to +200 deg C with a high temperature FluidLoc cable design.
Field Installation Guidelines
Install the 330854-040-24-00 extension cable according to the 3300 XL Transducer System installation requirements.
Verify that the probe, extension cable, and Proximitor Sensor part numbers are electrically compatible before installation.
Route the cable away from high current power conductors to reduce electromagnetic interference.
Maintain proper cable separation from variable frequency drive outputs and switching power circuits.
Connect cable shielding according to the system grounding practice specified for the monitoring rack and machinery protection system.
Avoid sharp bends, mechanical stress, and excessive pulling force during cable routing.
Confirm the probe gap voltage after installation to validate correct eddy-current measurement operation.
