Description
Overview

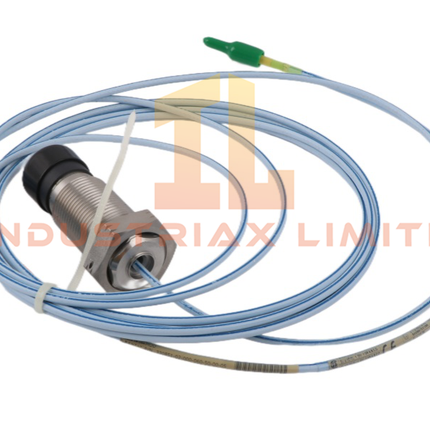

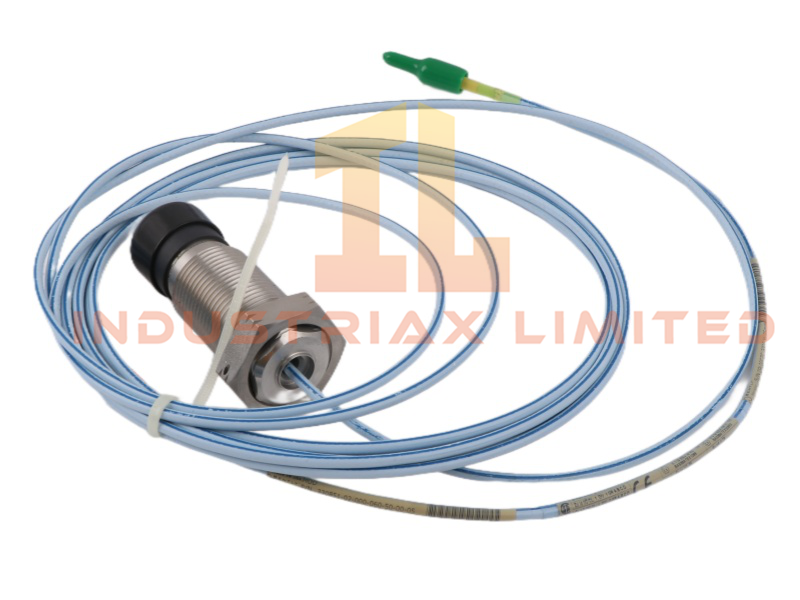

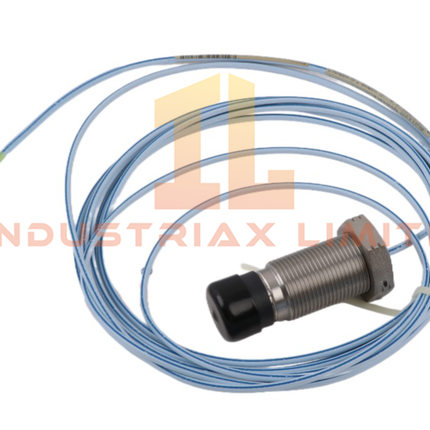

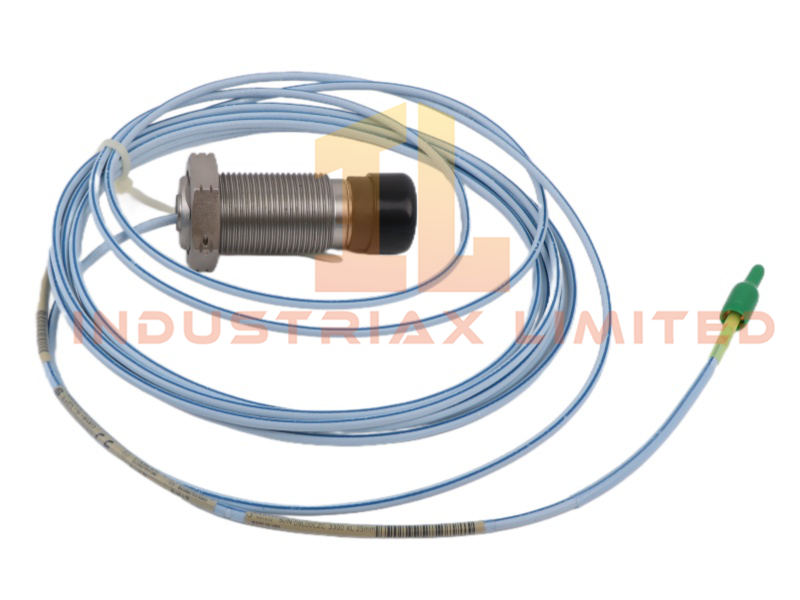

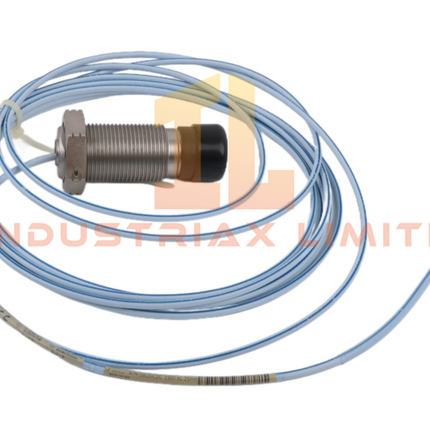

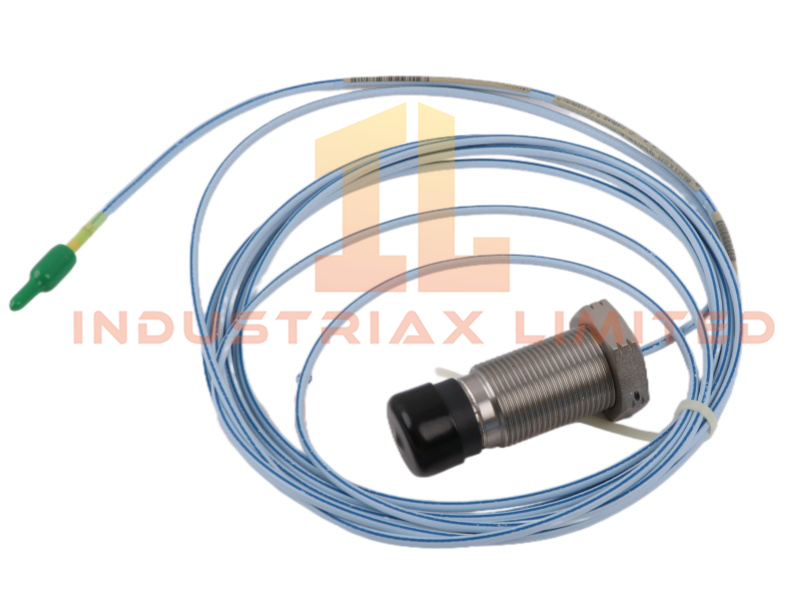

The 330851-02-000-60-10-00-05 Proximity Probe from Bently Nevada is a precision 25 mm sensor engineered for non-contact vibration and displacement monitoring in large-scale rotating machinery. As part of the 3300 XL Proximity Transducer System, it provides reliable measurements across extreme operating conditions, ensuring machinery protection and predictive maintenance accuracy.
Technical Specifications
-
Model Number: 330851-02-000-60-10-00-05
-
Product Type: 25 mm Proximity Probe
-
Manufacturer: Bently Nevada
-
Condition: Brand New
-
Compatible System: 3300 XL Proximity Transducer System
-
Linear Range: 12.7 mm
-
Sensitivity: 0.787 V/mm (20 mV/mil)
-
Thread Size: M30 × 2
-
Minimum Unthreaded Length: 60 mm
-
Cable Length: 1.0 m integral cable
-
Operating Temperature Range: -35°C to +200°C
-
Dimensions: 112 × 1.5 × 1.2 cm
-
Weight: 0.08 kg
-
HS Code: 8537101190
-
Origin: USA
-
MOQ: 1
-
Compliance: API 670 standard
-
Design: Non-armored, approved for international industrial applications
Functional Description
The 330851-02-000-60-10-00-05 probe is specifically designed for monitoring differential expansion in mid-size to large steam turbine generators. By measuring relative movement between the turbine rotor and stator, it helps detect thermal growth differences that can lead to mechanical failures. Its robust construction ensures reliable operation in harsh environments, while its wide temperature tolerance makes it suitable for demanding industrial applications.
The probe integrates seamlessly with other 3300 XL system components, offering flexibility in installation and simplifying maintenance. Its precision engineering supports long-term asset protection and operational safety.
Application Scenarios
-
Differential expansion monitoring in steam turbine generators
-
Shaft vibration and displacement measurement in large rotating machinery
-
Predictive maintenance programs in power generation and heavy industry
-
Environments requiring wide temperature tolerance and robust sensor design
FAQ
Q: What is the linear range of this probe? A: The probe provides a linear range of 12.7 mm.
Q: Can this probe operate in high-temperature environments? A: Yes, it functions reliably from -35°C to +200°C.
Q: Is the probe armored? A: No, this model is non-armored but approved for global industrial use.
