Description
Overview

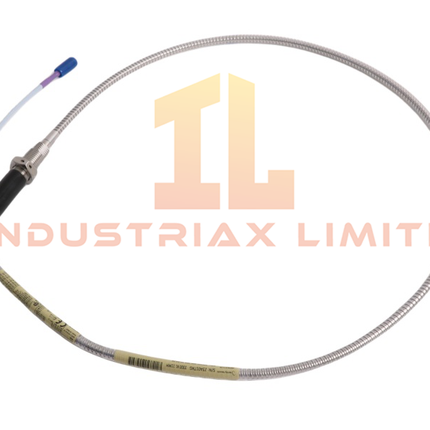

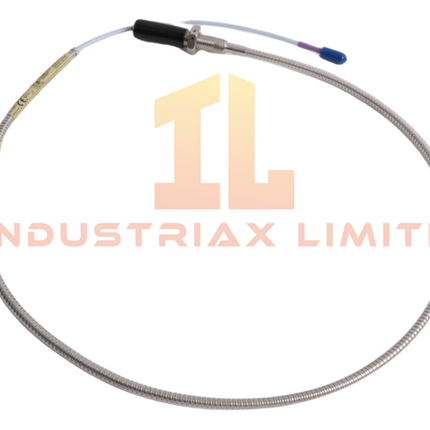

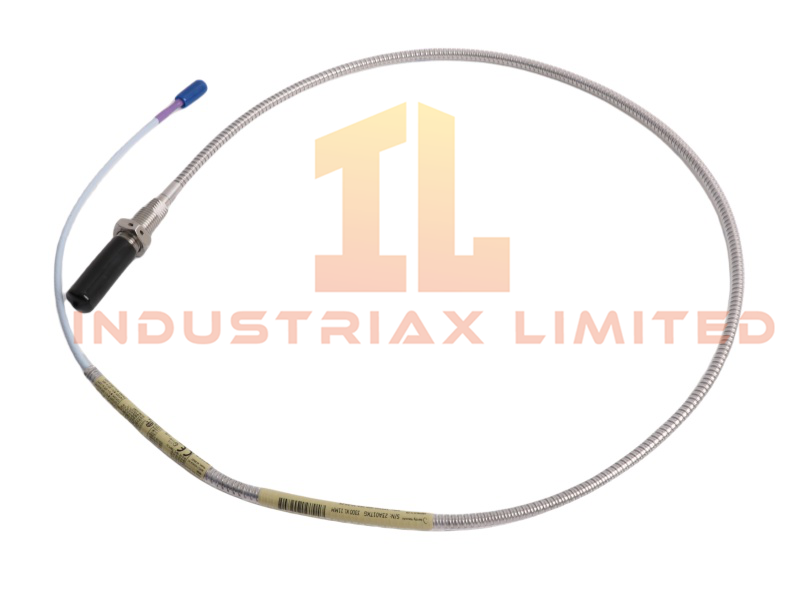

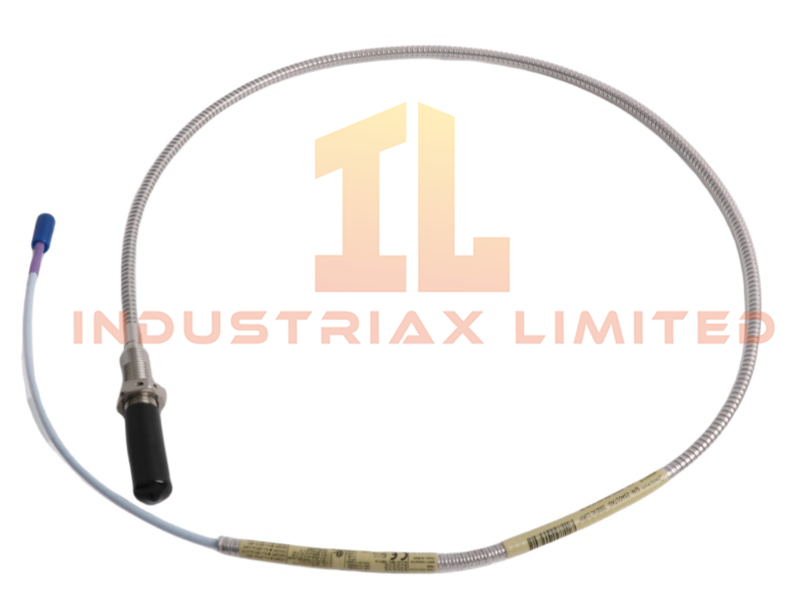

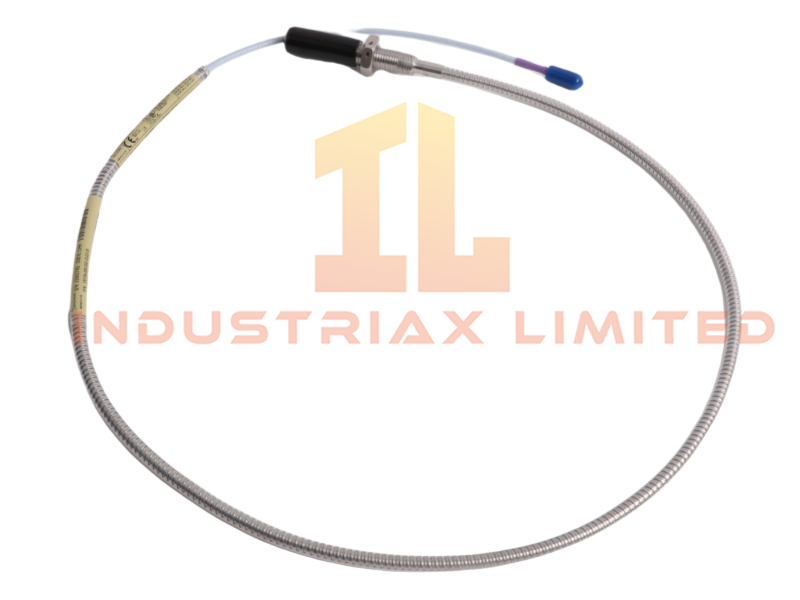

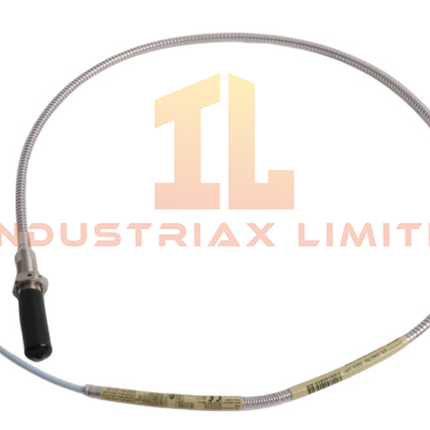

The 330704‑010‑060‑10‑11‑00 proximity probe is part of Bently Nevada’s 3300 XL 11 mm transducer family, designed for high‑accuracy displacement and vibration measurement in large rotating machinery. This probe assembly is optimized for applications requiring extended linear range and enhanced sensitivity, making it suitable for turbines, compressors, and other fluid‑film bearing equipment.
Design and Construction
This model features an M14×1.5 threaded probe body with a 60 mm overall length and a minimum 10 mm unthreaded section. The probe includes a 1‑meter armored cable for mechanical protection in harsh environments. Its 11 mm tip design provides a wider linear range than 8 mm probes, enabling more accurate monitoring of slow‑speed or high‑displacement machinery.
The assembly incorporates FluidLoc cable technology to prevent oil ingress and uses a miniature coaxial ClickLoc connector for secure, tool‑free installation. Stainless steel armor (indicated by “10” in the part number) ensures long‑term durability in high‑vibration environments.
Technical Specifications
| Parameter |
Specification |
| Model |
330704‑010‑060‑10‑11‑00 |
| Product Type |
11 mm Proximity Probe |
| Probe Tip Diameter |
11 mm |
| Thread Type |
M14 × 1.5 |
| Probe Length |
60 mm |
| Unthreaded Length |
10 mm minimum |
| Cable Length |
1.0 m |
| Sensitivity |
3.94 V/mm (100 mV/mil) |
| Connector Type |
Miniature ClickLoc |
| Cable Protection |
Stainless steel armor |
| Temperature Range |
–51°C to +177°C |
| Certifications |
ATEX, IECEx, CSA |
| System Compatibility |
3300 XL Proximity Transducer System |
| Dimensions |
115.5 × 2.5 × 2 cm |
| Weight |
0.16 kg |
| Origin |
USA |
| HS Code |
8537101190 |
| Product Status |
Active |
Functional Characteristics
-
Extended linear range for large‑displacement machinery
-
High sensitivity for accurate shaft position and vibration measurement
-
FluidLoc cable design for oil‑rich environments
-
ClickLoc connectors with positive locking feedback
-
Stainless steel armored cable for mechanical protection
-
Full compatibility with 3300 XL monitoring systems
Application Scenarios
-
Axial thrust position monitoring in steam turbines
-
Differential expansion measurement
-
Reciprocating compressor rod position detection
-
Keyphasor signal generation
-
Slow‑speed machinery requiring extended measurement range
Model Comparison
| Model |
Probe Tip |
Cable Length |
Protection |
Typical Use |
| 330704‑010‑060‑10‑11‑00 |
11 mm |
1 m |
Armored |
High‑displacement machinery |
| 330704‑000‑060‑10‑11‑00 |
11 mm |
5 m |
Armored |
Long‑distance routing |
| 330705‑02‑18‑10‑02‑00 |
8 mm |
1.8 m |
Unarmored |
Standard vibration monitoring |
FAQ
Q: What advantages does the 11 mm probe offer over 8 mm versions? A: The 330704‑010‑060‑10‑11‑00 provides a wider linear range, making it ideal for slow‑speed or large‑movement machinery.
Q: Can this probe be used in hazardous areas? A: Yes. It is certified under ATEX, IECEx, and CSA standards.
Q: Does the probe require calibration during installation? A: No. It is factory‑matched with its extension cable and driver, eliminating field calibration.
