Description
Overview

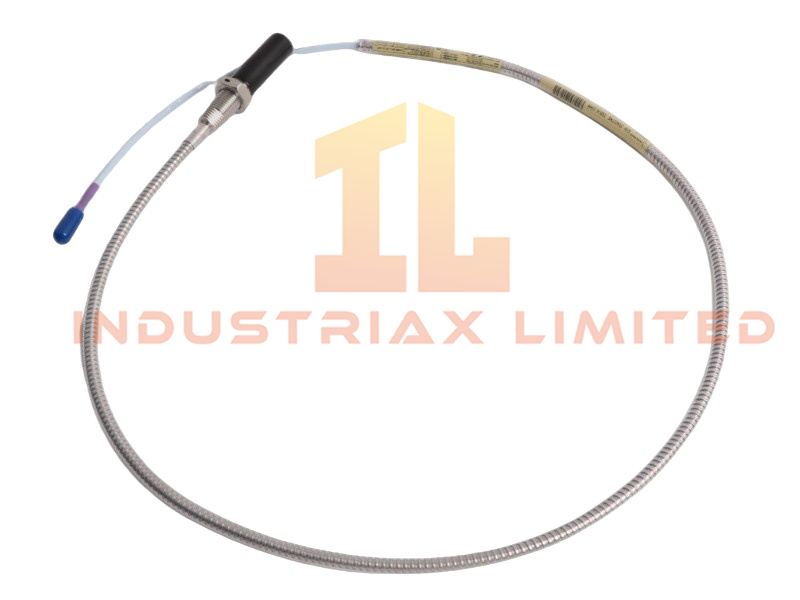

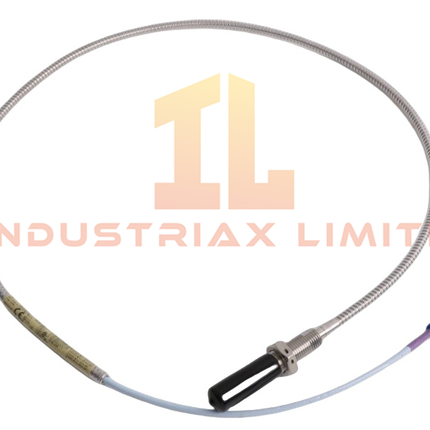

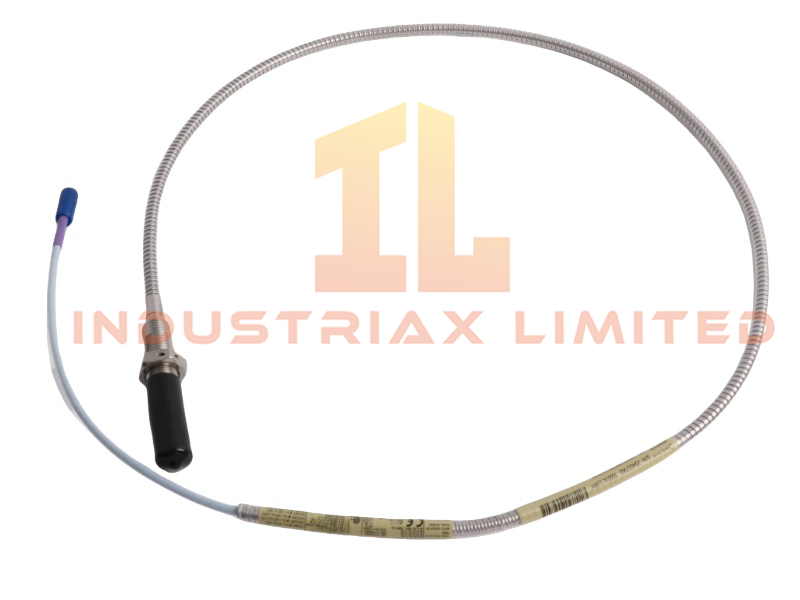

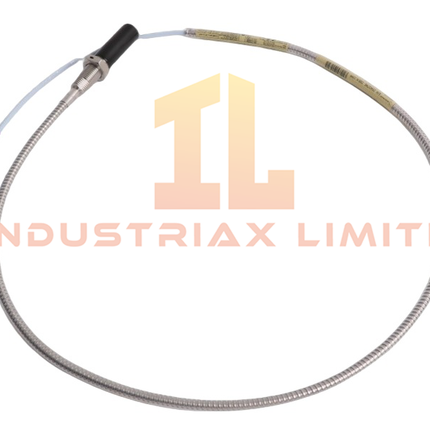

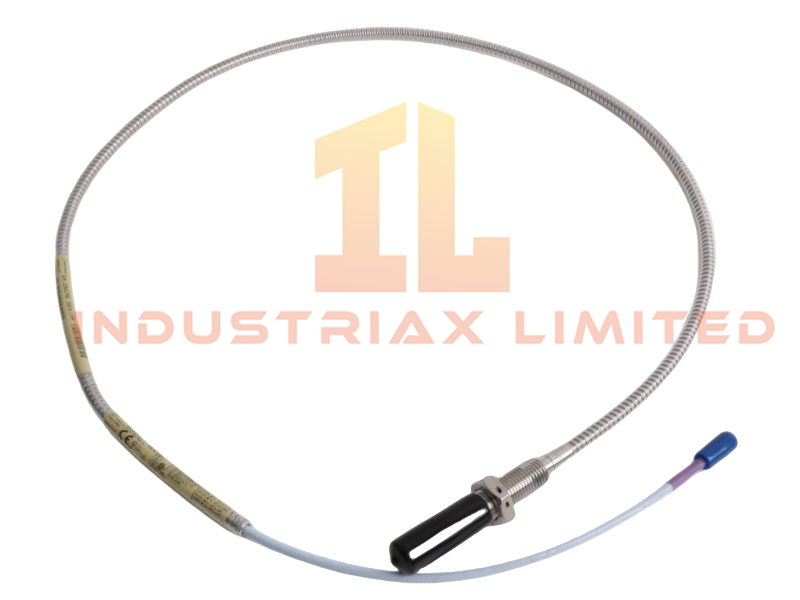

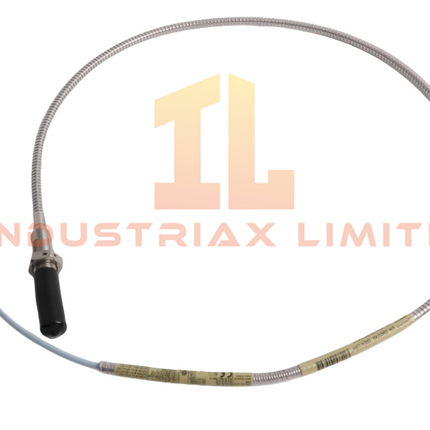

The Bently Nevada 330704‑000‑100‑10‑01‑CN is an 11 mm proximity probe designed for long‑range, high‑accuracy displacement and vibration measurement in large rotating machinery. As part of the 3300 XL Proximity Transducer System, it provides stable linearity, extended measurement range, and robust mechanical durability suitable for demanding industrial environments.
Design and Construction
This probe supports multiple mounting thread configurations—including ½‑20, 5/8‑18, M14 × 1.5, and M16 × 1.5—allowing flexible installation across a wide range of machine housings. The sensing system delivers a 100 mV/in/s sensitivity and supports 4–20 mA output, enabling integration with standard industrial monitoring and control systems.
The 330704‑000‑100‑10‑01‑CN incorporates Bently Nevada’s patented TipLoc molding process, which permanently bonds the probe tip to the body for enhanced mechanical strength. The extension cable uses gold‑plated ClickLoc connectors to ensure secure, vibration‑resistant electrical connections.
Technical Specifications
| Parameter |
Specification |
| Model / Part Number |
330704‑000‑100‑10‑01‑CN |
| Probe Type |
3300 XL 11 mm Proximity Probe |
| Sensitivity |
100 mV/in/s |
| Output Signal |
4–20 mA |
| Frequency Range |
10 Hz to 1 kHz |
| Thread Options |
½‑20, 5/8‑18, M14 × 1.5, M16 × 1.5 |
| Reverse Mount Options |
3/8‑24, M10 × 1 |
| Environmental Rating |
IP67 |
| Operating Temperature |
–50 °C to +120 °C |
| Construction |
Armored and unarmored variants available |
| Connector Type |
Gold‑plated ClickLoc |
| System Compatibility |
3300 XL Proximity Transducer System |
| Weight |
1.48 kg |
| Dimensions |
28 × 26 × 6 cm |
| Origin |
USA |
| Condition |
Brand New |
| Availability |
In Stock |
| HS Code |
8537101190 |
| System |
TSI compatible |
Functional Description
The 330704‑000‑100‑10‑01‑CN probe provides accurate non‑contact displacement and vibration measurements for machinery protection systems. Its wide frequency response supports monitoring of both low‑frequency and high‑frequency vibration signatures. The rugged mechanical design and IP67 environmental protection allow operation in harsh environments such as refineries, offshore platforms, and power generation facilities.
Armored and unarmored configurations allow customization based on installation requirements, while the probe’s extended linear range makes it suitable for large‑shaft machinery and applications requiring long‑distance measurement capability.
Application Areas
-
Steam and gas turbines
-
Large compressors and expanders
-
Petrochemical and refinery equipment
-
Offshore rotating machinery
-
High‑vibration industrial environments
-
Machinery requiring extended linear measurement range
FAQ
Q: What makes the 11 mm probe suitable for large machinery Its extended linear range and larger sensing tip allow accurate measurement over longer distances.
Q: Does this model support hazardous‑area installations The probe’s construction and environmental rating support harsh environments; hazardous‑area approvals depend on the full system configuration.
Q: What connector type is used Gold‑plated ClickLoc connectors ensure secure, vibration‑resistant connections.
Q: Are armored versions available Yes. Both armored and unarmored variants exist depending on installation needs.
