Description
Overview

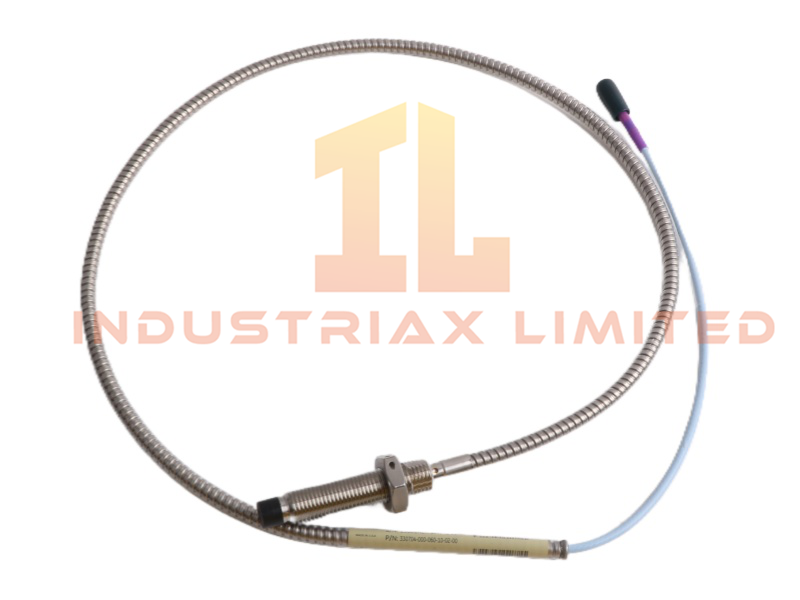

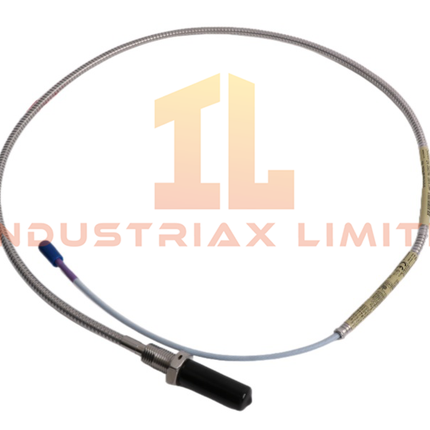

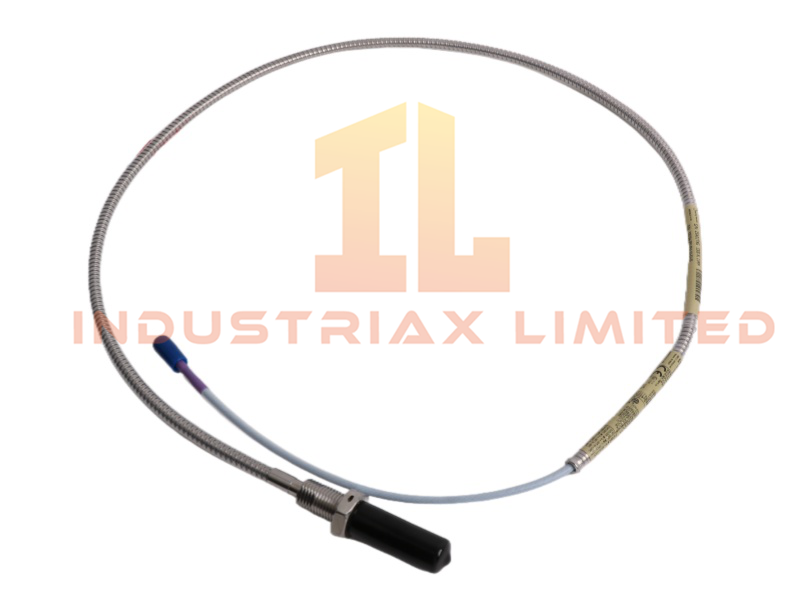

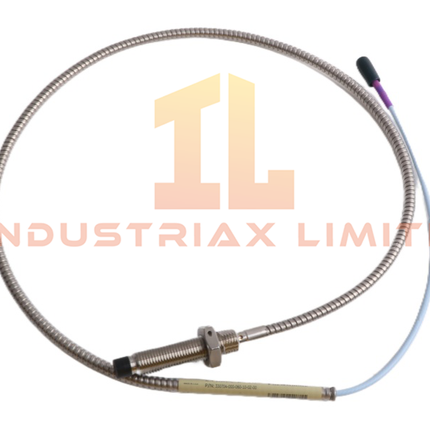

The Bently Nevada 330704‑000‑040‑10‑02‑05 proximity probe is part of the 3300 XL 11 mm sensing platform, engineered for high‑accuracy shaft vibration and position measurement in fluid‑film bearing machinery. Its mechanical design, electrical characteristics, and environmental robustness make it suitable for continuous monitoring and protection systems in demanding industrial environments.
Key Features
-
11 mm tip diameter for extended linear range and improved signal stability
-
M14 × 1.5 threaded body with armored construction for mechanical protection
-
Standard 1.0 m coaxial probe cable with ClickLoc miniature connector
-
Compatible with 3300 XL extension cables and Proximitor sensors
-
Designed for static position, dynamic vibration, and Keyphasor reference measurements
-
Suitable for turbines, compressors, pumps, and high‑speed rotating equipment
-
Manufactured in the USA with full compliance to global instrumentation standards
Technical Specifications
| Parameter |
Specification |
| Model / Part Number |
330704‑000‑040‑10‑02‑05 |
| Probe Type |
3300 XL 11 mm Proximity Probe |
| Thread Size |
M14 × 1.5 |
| Minimum Unthreaded Length |
0 mm |
| Minimum Total Length |
40 mm |
| Cable Length |
1.0 m (3.3 ft) |
| Connector Type |
Miniature coaxial ClickLoc |
| System Compatibility |
3300 XL Proximity Transducer System |
| Output Characteristics |
Voltage proportional to probe‑target gap |
| Target Material |
Conductive (typically 4140 steel) |
| Weight |
0.16 kg |
| HS Code |
8537101190 |
| Dimensions |
2 × 2 × 119 cm |
| Operating Status |
Active, not discontinued |
| Origin |
USA |
| Minimum Order Quantity |
1 |
Functional Description
The 330704‑000‑040‑10‑02‑05 probe operates as part of a three‑component transducer system consisting of the probe, extension cable, and Proximitor sensor. When installed, the probe generates a precise voltage output proportional to the distance between the probe tip and the rotating shaft surface. This enables accurate monitoring of:
The armored cable and ClickLoc connector ensure long‑term reliability in high‑temperature, high‑vibration, or oil‑contaminated environments. The probe’s 11 mm design provides a wider linear range compared to 5 mm or 8 mm probes, making it ideal for large‑shaft or high‑displacement applications.
Application Scenarios
FAQ
Q: Can this probe be used with older 3300 systems? A: Yes. The 3300 XL series maintains backward compatibility with legacy 3300 extension cables and Proximitor sensors when installed as a matched set.
Q: What is the typical linear range of an 11 mm probe? A: The 11 mm probe typically provides a linear range of approximately 4 mm, depending on the target material and system calibration.
Q: Is the probe suitable for Keyphasor applications? A: Yes. The probe supports phase reference and speed measurement when paired with the appropriate Proximitor module.
