Description
Overview

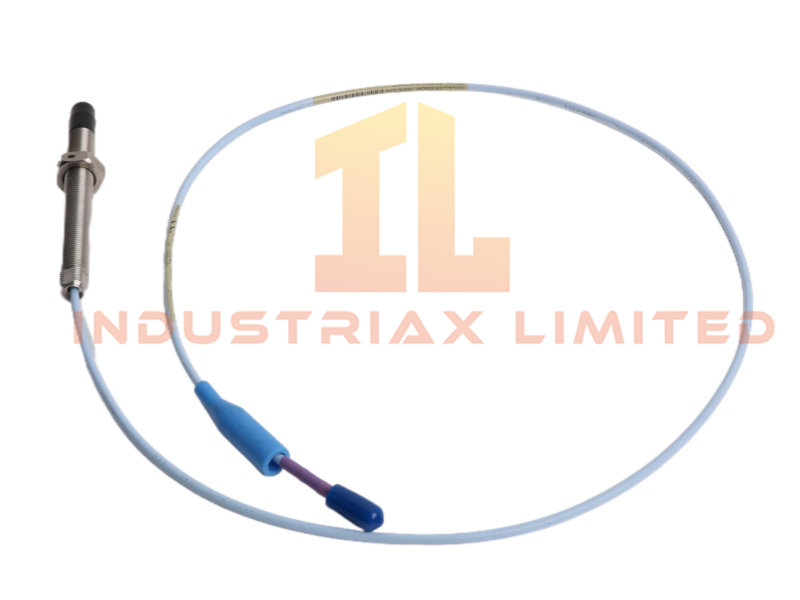

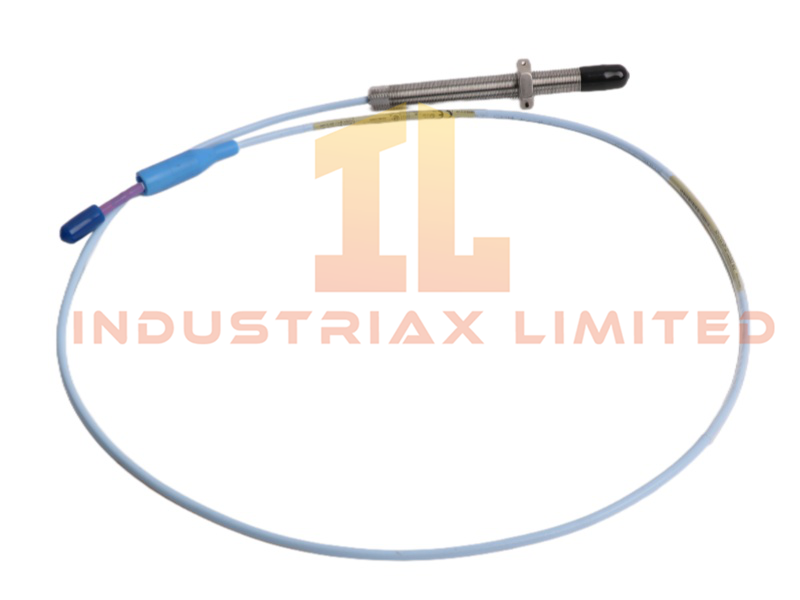

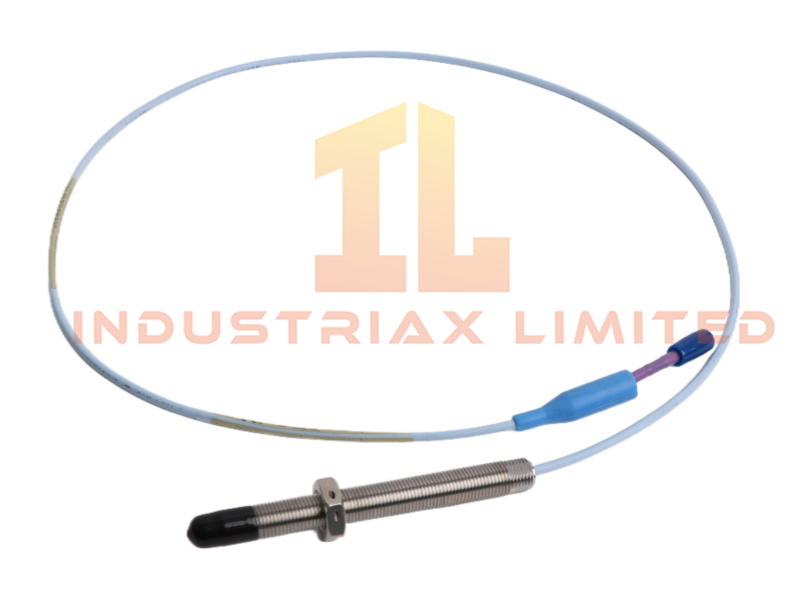

The 330701-00-40-10-11-05 Bently Nevada 3300 XL 11 mm Proximity Probe is a precision eddy current sensor designed for vibration and shaft position monitoring in critical rotating machinery. As part of the 3300 XL Proximity Transducer System, it offers complete interchangeability with probes, extension cables, and Proximitor sensors, eliminating the need for individual calibration and simplifying installation.
Technical Specifications
-
Model Number: 330701-00-40-10-11-05
-
Product Type: 3300 XL 11 mm Proximity Probe
-
Probe Diameter: 11 mm
-
Thread Size: M10 × 1
-
Cable Options: Armored and unarmored variants available
-
Connector Type: Miniature coaxial ClickLoc connector
-
Optional Feature: FluidLoc cable to prevent oil/liquid migration
-
Operating Temperature Range: -51°C to +177°C
-
Weight: 0.08 kg
-
Dimensions: 112 × 1.5 × 1.2 cm
-
System Compatibility: 3300 XL Proximity Transducer System
-
Backward Compatibility: Compatible with non-XL 3300 5 mm and 8 mm components
-
Compliance: API 670 standards for mechanical configuration, accuracy, and linear range
-
Certifications: CSA, ATEX, IECEx approvals for hazardous area use
-
Origin: USA
-
HS Code: 8537101190
Key Features
-
Eddy current technology for precise vibration and displacement monitoring
-
Wide operating temperature range for extreme environments
-
FluidLoc cable option prevents contamination from oil migration
-
Fully interchangeable with 3300 XL system components, eliminating calibration requirements
-
Certified for hazardous environments (CSA, ATEX, IECEx)
-
Rugged construction for long-term stability and durability
Application Scenarios
The 330701-00-40-10-11-05 probe is widely used in turbines, compressors, pumps, and other fluid-film bearing machines. It is particularly suited for predictive maintenance programs, providing accurate real-time data to improve reliability, reduce downtime, and optimize operational efficiency.
FAQ
Q: What is the operating temperature range of this probe? A: It operates reliably between -51°C and +177°C.
Q: Does it require calibration during installation? A: No, it is fully interchangeable and does not require bench calibration.
Q: Can it be used in hazardous environments? A: Yes, it carries CSA, ATEX, and IECEx certifications.
Q: What optional features are available? A: The FluidLoc cable option prevents oil and liquid migration through the cable interior.
