Description
Overview

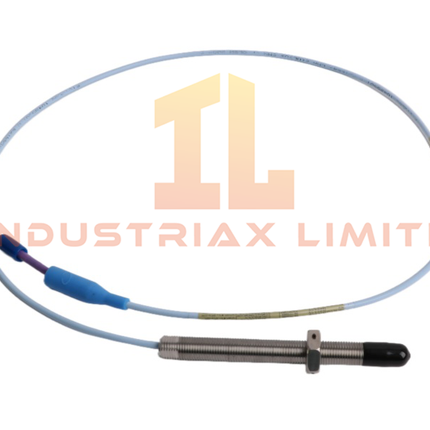

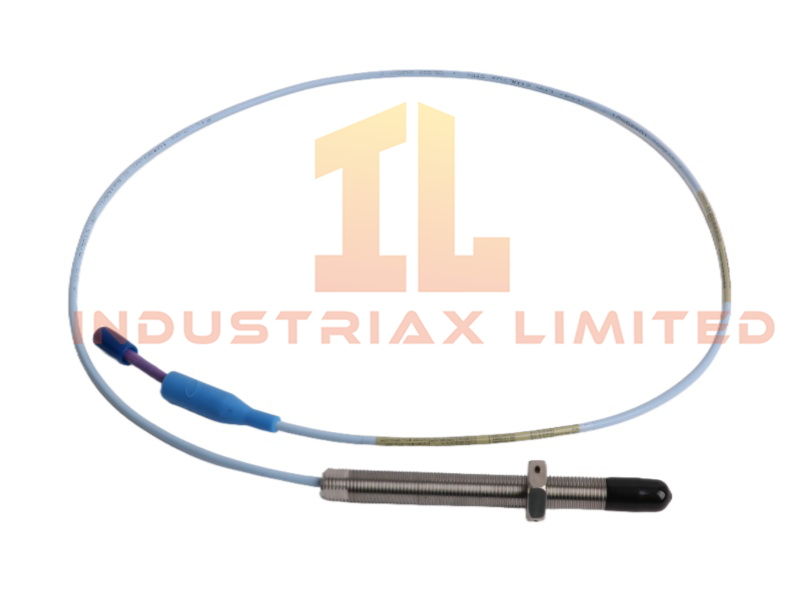

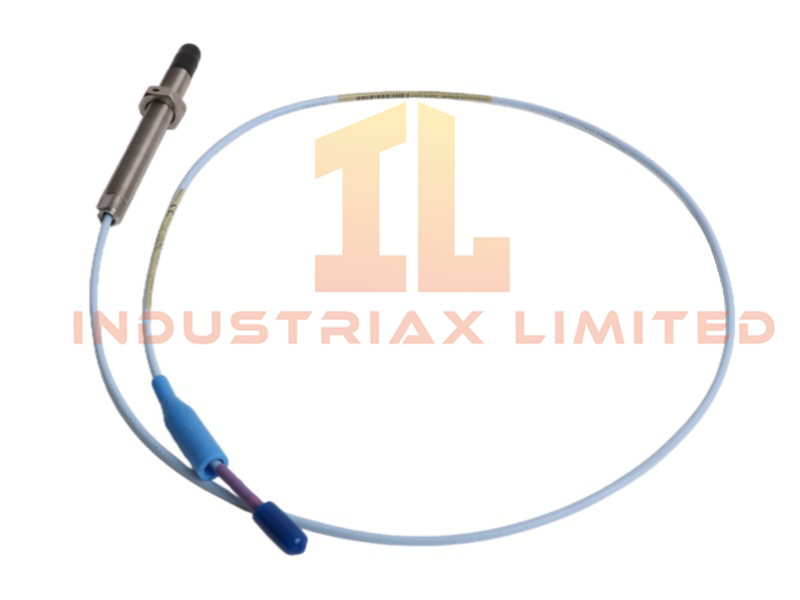

The Bently Nevada 330701‑00‑15‑10‑02‑05 proximity probe is part of the 3300 XL 11 mm transducer system, designed for high‑accuracy shaft vibration and position measurement in fluid‑film bearing machinery. Its larger 11 mm tip provides an extended linear range, making it suitable for applications requiring greater measurement clearance or higher vibration amplitudes. The probe’s unarmored configuration offers installation flexibility in protected routing environments.
Key Characteristics
-
11 mm eddy‑current probe for displacement and vibration monitoring
-
1/2‑20 UNF threaded stainless‑steel housing
-
Minimum case length: 1.5 inches
-
1.0‑meter integrated coaxial cable with ClickLoc miniature connector
-
Enhanced RFI/EMI immunity meeting CE requirements
-
Suitable for high‑density DIN‑rail and panel‑mount configurations
-
Designed for static position, dynamic vibration, and Keyphasor reference measurements
-
Compliant with global industrial safety and performance standards
Technical Specifications
| Parameter |
Specification |
| Model / Part Number |
330701‑00‑15‑10‑02‑05 |
| Probe Type |
3300 XL 11 mm Proximity Probe |
| Thread Size |
1/2‑20 UNF |
| Minimum Case Length |
1.5 in |
| Cable Length |
1.0 m (3.3 ft) |
| Cable Type |
Unarmored coaxial cable |
| Connector Type |
Miniature coaxial ClickLoc |
| Measurement Principle |
Eddy‑current displacement |
| Output |
Voltage proportional to probe‑target gap |
| RFI/EMI Immunity |
CE‑compliant, no special mounting required |
| Weight |
0.06 kg |
| Dimensions |
1.8 × 1.6 × 123 cm |
| System Compatibility |
3300 XL Proximity Transducer System |
| Condition |
Brand New |
| Origin |
USA |
| MOQ |
1 |
| HS Code |
8537101190 |
Functional Description
The 330701‑00‑15‑10‑02‑05 probe is engineered for accurate displacement measurement in rotating machinery. Its 11 mm sensing tip provides a wider linear range than 5 mm or 8 mm probes, making it ideal for large‑shaft applications or installations with higher vibration amplitudes.
The probe incorporates advanced electromagnetic immunity, allowing it to operate reliably in environments with high‑frequency electrical noise. Its ClickLoc connector ensures secure electrical contact, while the unarmored cable design supports installations where cable protection is provided by conduit or controlled routing.
When paired with a 3300 XL Proximitor sensor and extension cable, the probe supports:
The probe’s compact form factor allows integration into high‑density DIN‑rail systems and traditional panel‑mount configurations.
Application Scenarios
FAQ
Q: What advantage does an 11 mm probe offer? A: It provides a wider linear range, ideal for large‑shaft or high‑displacement applications.
Q: Does this probe require special shielding for EMI protection? A: No. It meets CE RFI/EMI immunity requirements without additional shielding.
Q: Is this probe compatible with standard 3300 XL systems? A: Yes. It integrates seamlessly with 3300 XL Proximitor sensors and extension cables.
