Description
Overview

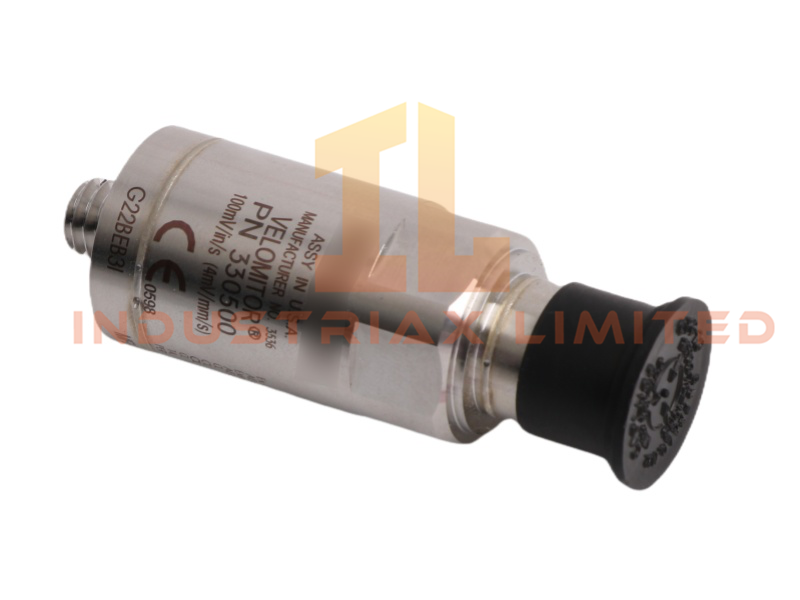

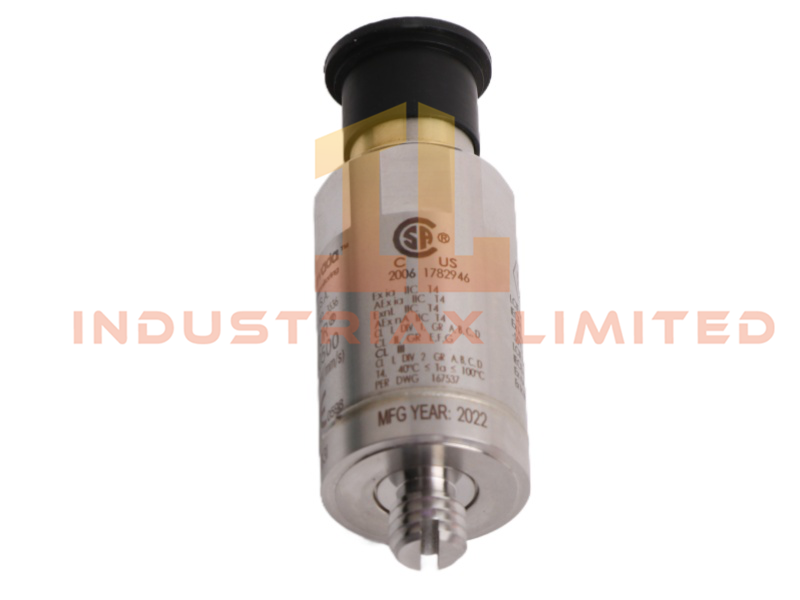

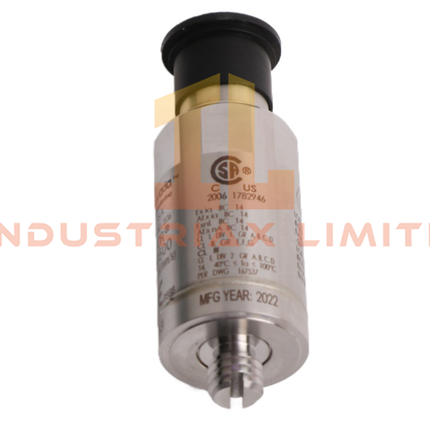

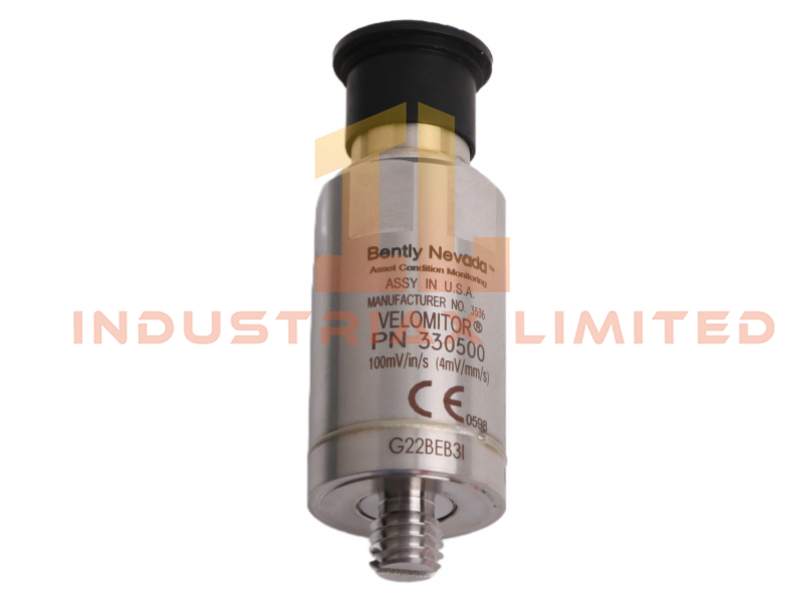

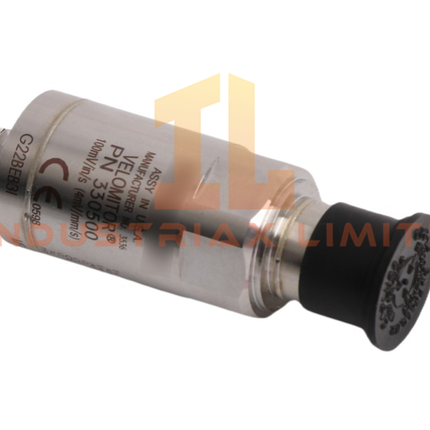

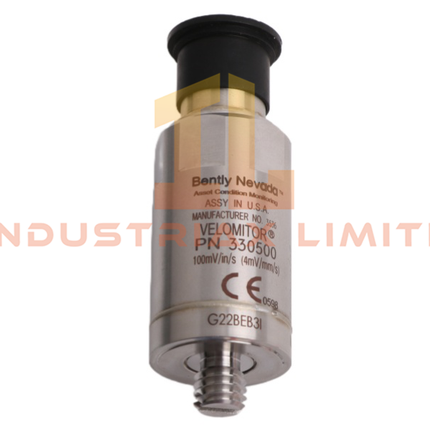

The Bently Nevada 330500‑07‑02 Velomitor sensor is a piezo‑velocity device engineered for absolute vibration measurement on bearing housings, machine casings, and structural components. Its solid‑state construction eliminates mechanical wear, ensuring long‑term stability in continuous monitoring applications. The sensor maintains consistent performance regardless of mounting orientation, supporting vertical, horizontal, or angled installation.
Technical Specifications
| Parameter |
Specification |
| Model |
330500‑07‑02 |
| Product Type |
Velomitor Piezo‑Velocity Sensor |
| Brand |
Bently Nevada |
| Weight |
0.08 kg |
| Dimensions |
112 × 1.5 × 1.2 cm |
| Sensitivity |
3.94 mV/mm/s |
| Thread Type |
3/8‑16 UNC |
| Electronics |
Solid‑state, integrated conditioning |
| Certifications |
ATEX compliant, FCC Part 15 |
| System Compatibility |
TSI |
| Origin |
USA |
| Condition |
New |
| MOQ |
1 |
| Availability |
In Stock |
| HS Code |
8537101190 |
Functional Description
The 330500‑07‑02 sensor converts casing vibration into a proportional velocity signal using an internal piezoelectric accelerometer paired with onboard signal‑conditioning electronics. This architecture provides high sensitivity to low‑frequency vibration, making it suitable for machinery where casing vibration is the primary diagnostic indicator.
Its rugged housing and threaded mounting interface ensure secure installation in harsh industrial environments. The sensor’s low transverse sensitivity and stable output impedance support accurate readings even when exposed to mechanical stress or electrical noise.
Compliance with FCC Part 15 ensures the device operates without causing interference and remains resilient to external electromagnetic disturbances.
Application Scenarios
-
Turbine and compressor vibration monitoring
-
Pump and motor casing vibration measurement
-
Gearbox structural vibration analysis
-
General rotating machinery condition monitoring
FAQ
Q: Can the 330500‑07‑02 be mounted in any direction? A: Yes. The solid‑state design allows installation in any orientation without affecting accuracy.
Q: What type of thread does the sensor use? A: It uses a 3/8‑16 UNC threaded stud for secure mounting.
Q: Is the sensor suitable for hazardous areas? A: Yes. It meets ATEX requirements for use in regulated environments.
Q: What issues can this sensor detect? A: It is effective for identifying unbalance, misalignment, looseness, and general casing vibration abnormalities.
