Description
Product Overview

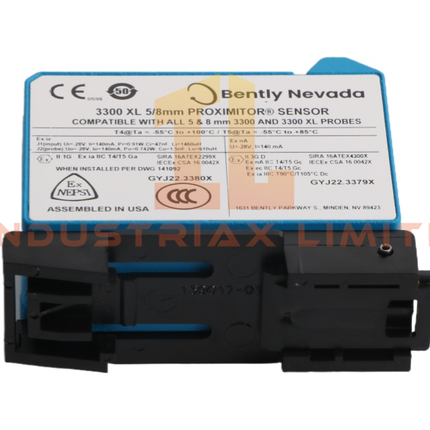

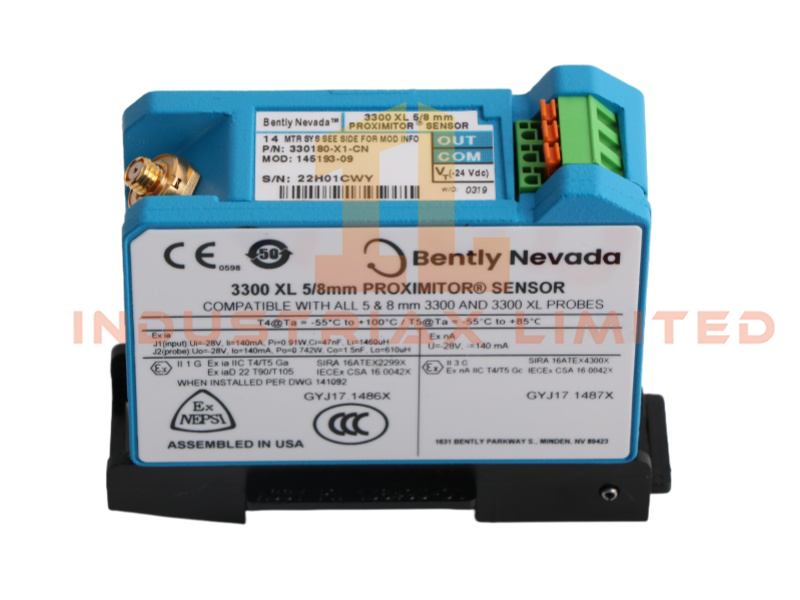

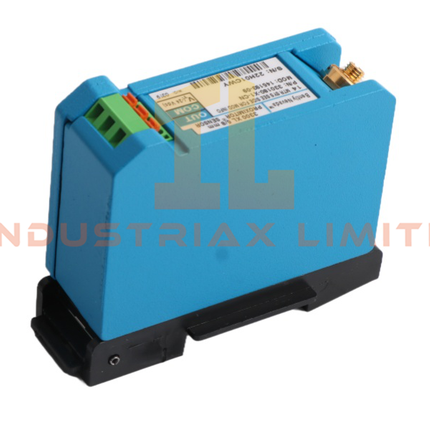

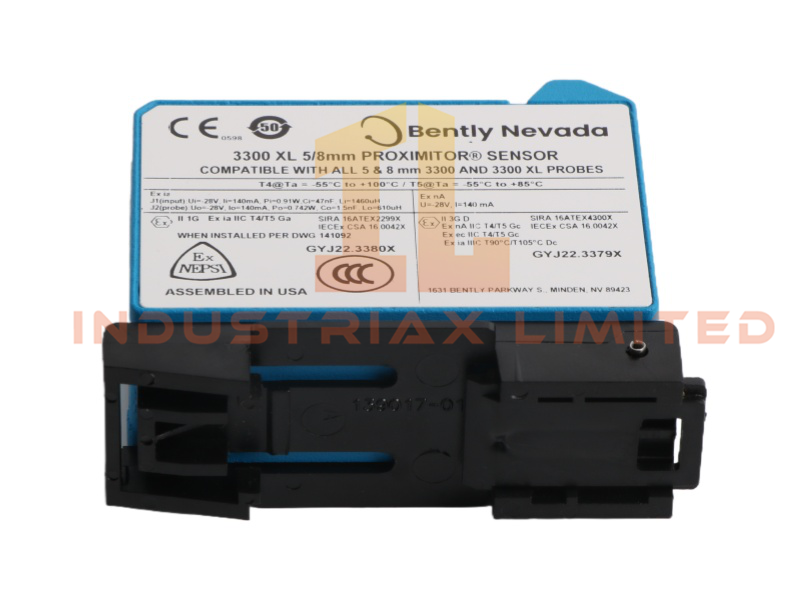

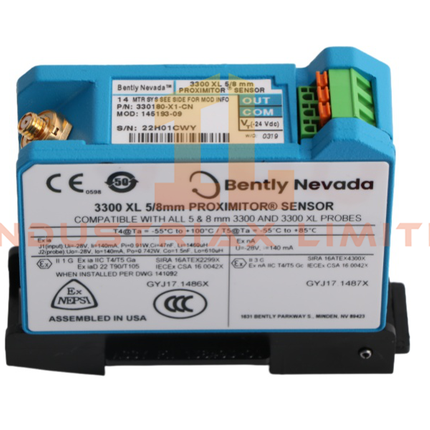

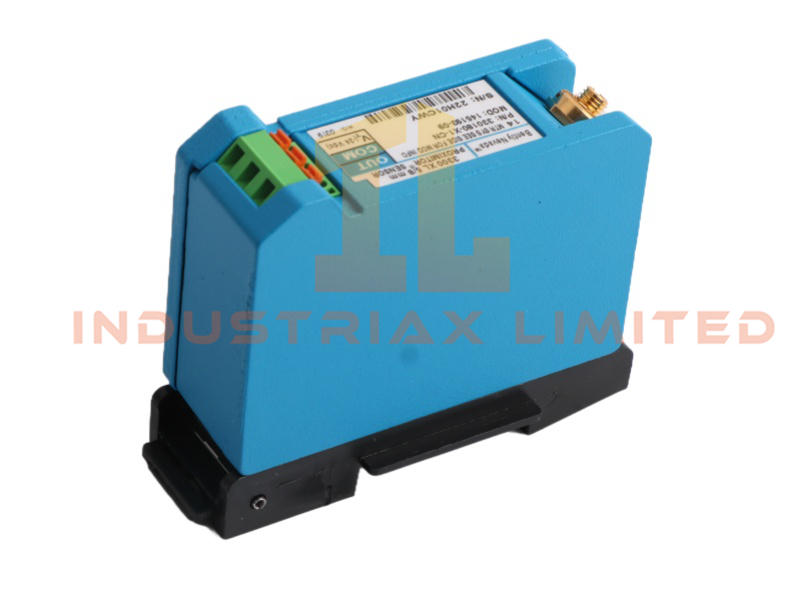

The Bently Nevada 330180-X1-05 MOD:145004-13 Proximitor Sensor forms part of the 3300 XL 8 mm proximity transducer system. It delivers advanced eddy-current measurement capabilities, ensuring precise vibration and position monitoring. Engineers rely on its robust construction and compliance with API 670 standards for consistent performance in demanding environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
330180-X1-05 MOD:145004-13 |
| Module Type |
Proximity Probe Housing Cable |
| Manufacturer |
Bently Nevada |
| Product Range |
3300 Proximity Transducer System |
| Condition |
Brand New |
| Dimensions |
1.8 × 1.6 × 123 cm |
| Weight |
0.06 kg |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System |
TSI |
| Communication Service |
Ethernet Router |
| Status |
Active |
| Output Resistance |
50 Ω |
| Cable Capacitance |
69.9 pF/m |
| Probe Tip Material |
Polyphenylene Sulfide (PPS) |
| Case Material |
AISI 303 / 304 Stainless Steel |
| Certifications |
API 670, CSA, ATEX, IECEx |
| Packaging Dimensions |
8.8 × 3.5 × 7 cm |
Functional Description
The 330180-X1-05 MOD:145004-13 sensor integrates PPS probe tips and stainless steel housing for durability and corrosion resistance. Its compact 1.8x1.6x123cm design and lightweight 0.06kg build simplify installation. Electrical specifications include 50 Ω output resistance and 69.9 pF/m capacitance, ensuring stable signal transmission across the monitoring chain.
Applications and Compatibility
The Bently Nevada 330180-X1-05 MOD:145004-13 Proximitor Sensor supports turbines, compressors, and other rotating equipment requiring precise vibration and position monitoring. Backward compatibility with non-XL 3300 series 5 mm and 8 mm components allows flexible integration. Its certifications make it suitable for hazardous environments, while complete interchangeability of probes, cables, and sensors reduces installation complexity.
Key Benefits
-
Lightweight 0.06kg design improves handling and replacement efficiency.
-
Stainless steel case resists corrosion and mechanical stress in harsh conditions.
-
API 670 compliance ensures accuracy, stability, and global acceptance.
-
Backward compatibility supports legacy 3300 series installations.
-
Compact dimensions allow installation in restricted industrial spaces.
