Description
Overview

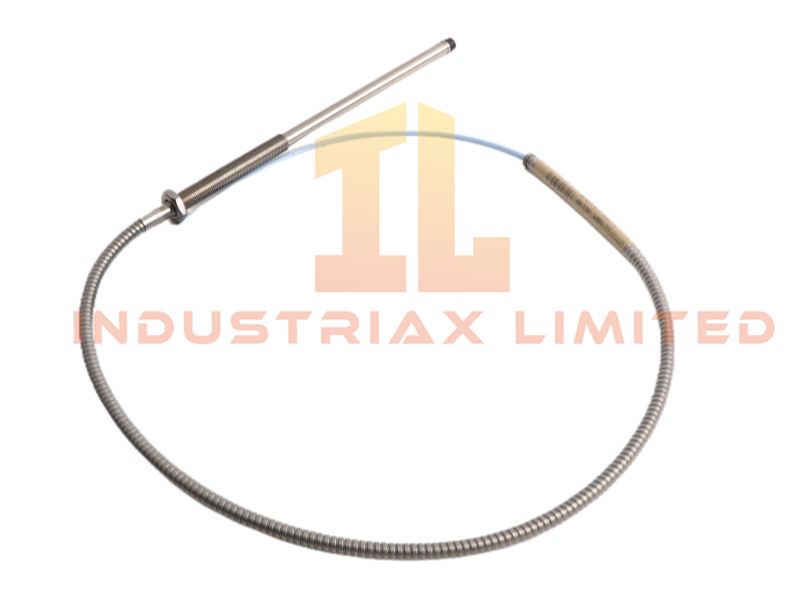

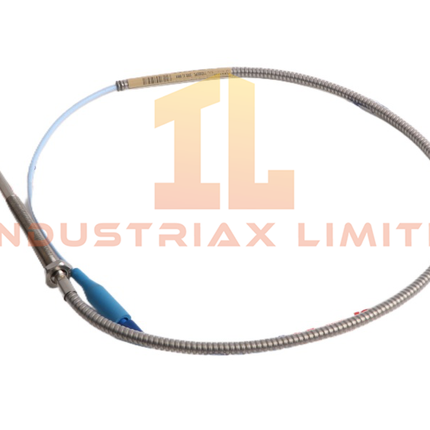

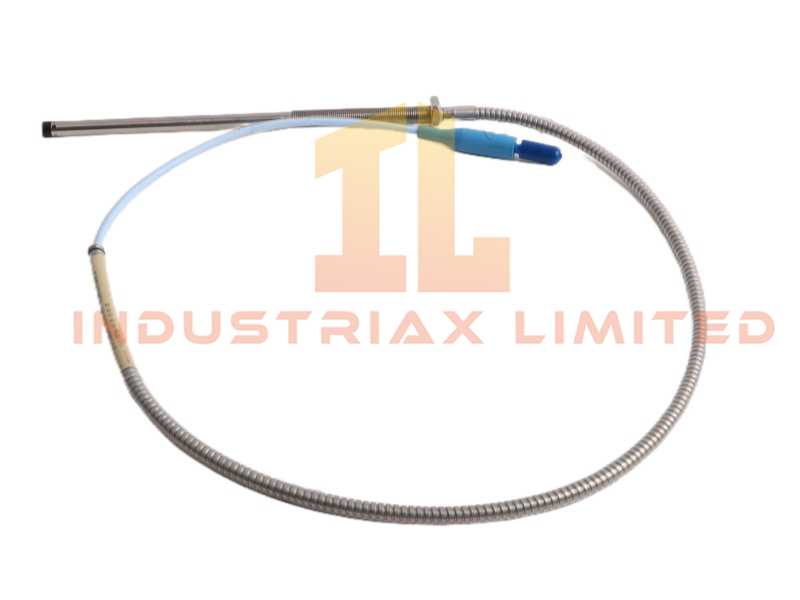

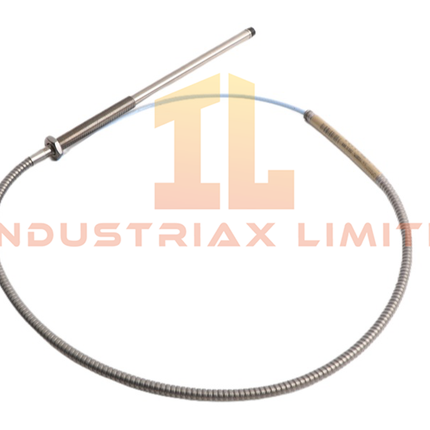

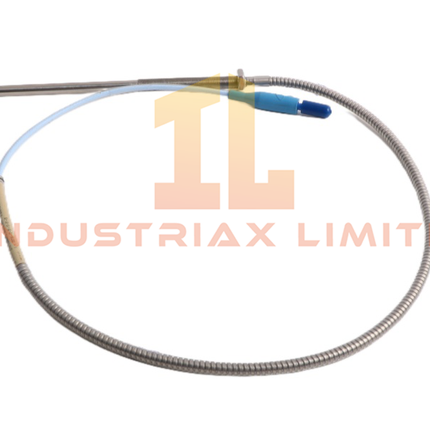

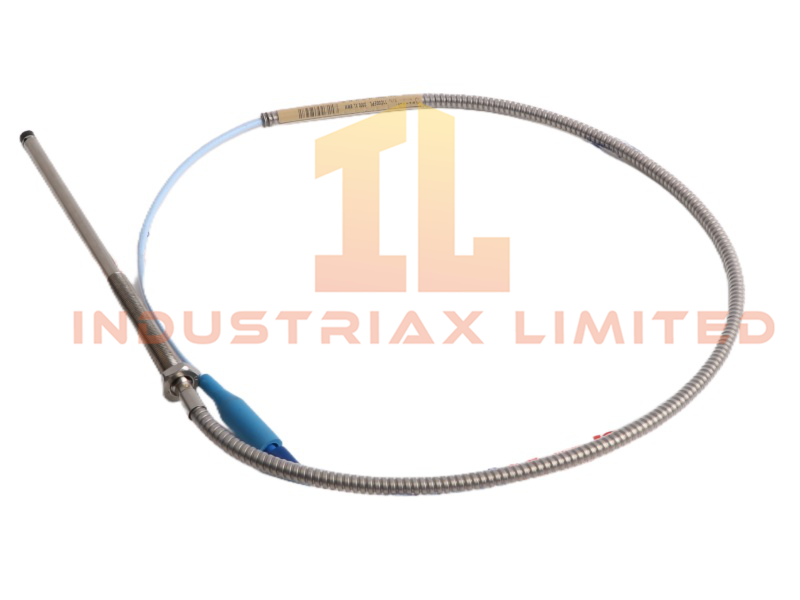

The Bently Nevada 330104‑12‑20‑10‑02‑00 proximity transducer is part of the 3300 XL 8 mm series, designed for high‑accuracy non‑contact measurement of shaft vibration and displacement in critical rotating machinery. Its armored construction and extended mechanical dimensions make it suitable for installations exposed to harsh operating conditions, mechanical stress, and elevated temperatures.
Mechanical Design
This model incorporates an M10×1 threaded body with a 120 mm unthreaded section and a 200 mm armored case length. The probe housing is manufactured from AISI 303/304 stainless steel, providing corrosion resistance and long‑term durability. A Viton O‑ring is integrated into the design to maintain pressure integrity between the probe tip and the case, supporting reliable operation in environments where differential pressure is present.
The probe tip is constructed from Polyphenylene Sulfide (PPS), a material selected for its mechanical strength and thermal stability. This ensures consistent measurement performance across the probe’s operating temperature range of −35°C to +85°C, with storage capability extending from −51°C to +100°C.
Electrical Characteristics
The 330104‑12‑20‑10‑02‑00 includes a 1.0‑meter cable terminated with a miniature coaxial ClickLoc connector. The connector design prevents accidental loosening and maintains shielding integrity, ensuring stable signal transmission to the associated Proximitor sensor.
This probe is fully compatible with the 3300 XL transducer system and supports both static and dynamic measurements, including shaft position, radial vibration, and phase reference signals.
Technical Specifications
| Parameter |
Specification |
| Model |
330104‑12‑20‑10‑02‑00 |
| Probe Type |
3300 XL 8 mm Proximity Transducer |
| Thread Type |
M10×1 |
| Unthreaded Length |
120 mm |
| Armored Case Length |
200 mm |
| Cable Length |
1.0 m |
| Connector |
Miniature coaxial ClickLoc |
| Tip Material |
PPS (Polyphenylene Sulfide) |
| Housing Material |
AISI 303/304 stainless steel |
| Operating Temperature |
−35°C to +85°C |
| Storage Temperature |
−51°C to +100°C |
| Weight |
0.14 kg |
| Dimensions |
20.5 × 22.5 × 3.5 cm |
| HS Code |
8537101190 |
| Origin |
USA |
| Minimum Order |
1 unit |
| Product Status |
Active |
Performance Characteristics
The armored design provides enhanced protection against mechanical impact and cable damage, making the probe suitable for high‑vibration environments. Its extended unthreaded length allows flexible mounting configurations in turbines, compressors, and other large rotating assets.
The probe is engineered to maintain linearity and accuracy across its full measurement range when used with 3300 XL Proximitor sensors. Its construction supports long‑term reliability in applications requiring continuous monitoring and API‑compliant performance.
Application Scenarios
-
Turbine and compressor vibration monitoring
-
Shaft displacement and axial position measurement
-
High‑vibration industrial environments requiring armored probes
-
Installations with differential pressure across probe housings
-
API 670‑compliant protection systems
FAQ
Q: Is this probe compatible with non‑XL 3300 series components? A: No. Due to its armored design and electrical characteristics, it is intended for use with 3300 XL system components.
Q: What environments benefit most from the armored construction? A: High‑vibration, high‑temperature, or mechanically exposed installations where cable protection is critical.
Q: Does the probe require special mounting hardware? A: It uses standard 3300 XL mounting configurations and does not require custom brackets.
