Description
Overview

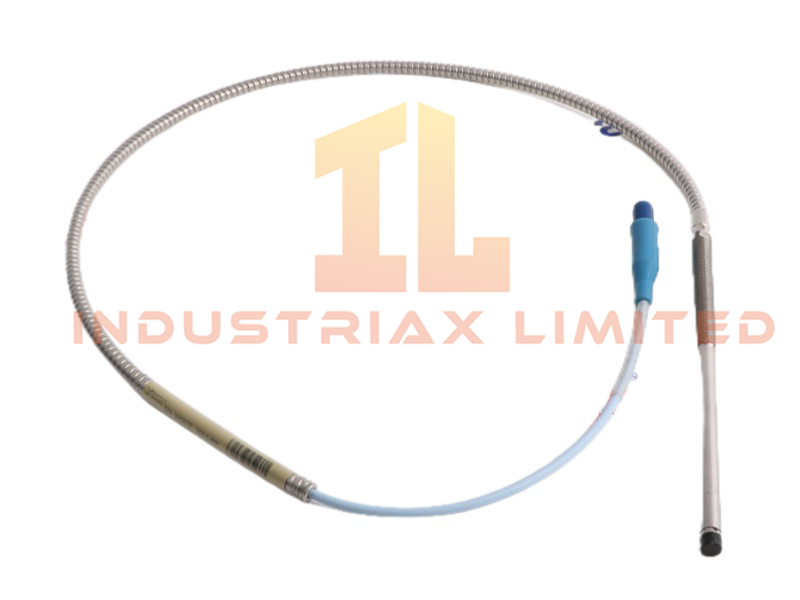

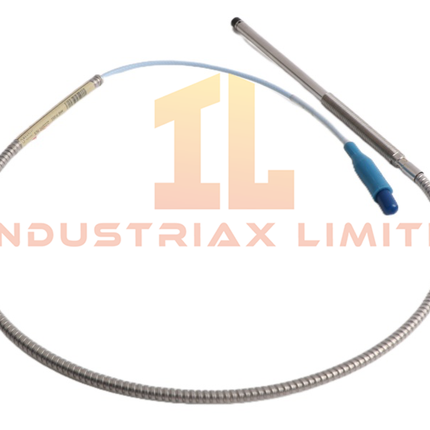

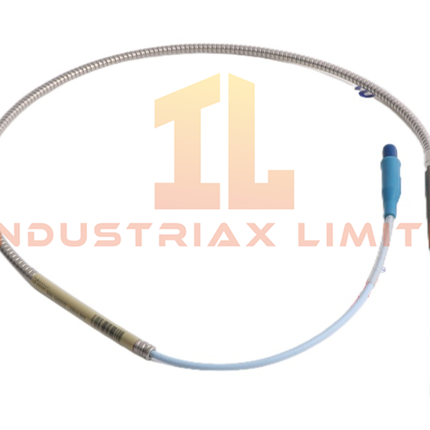

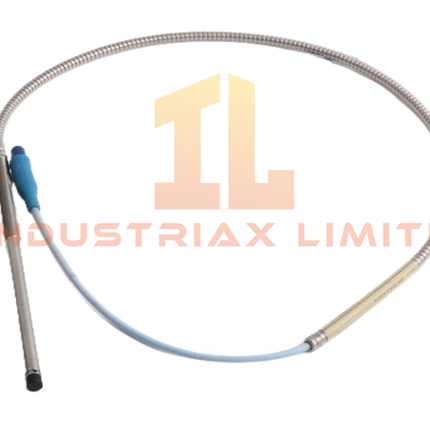

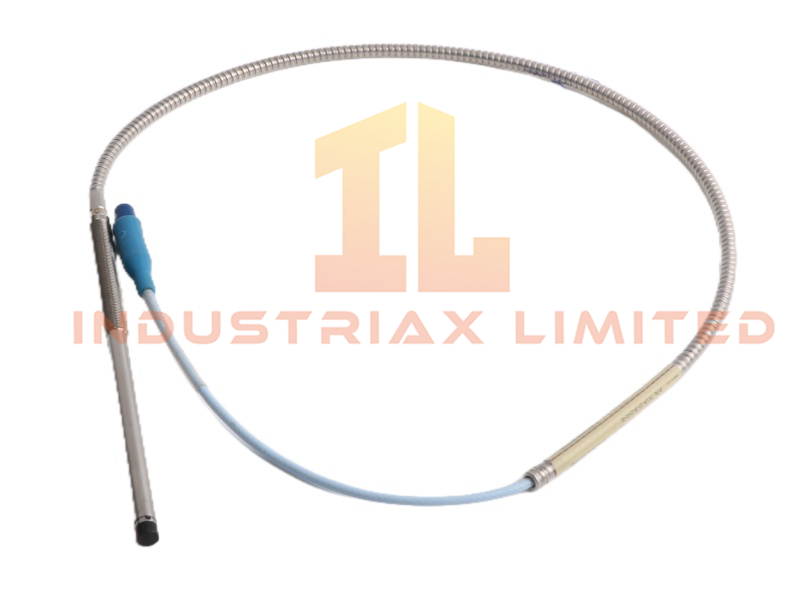

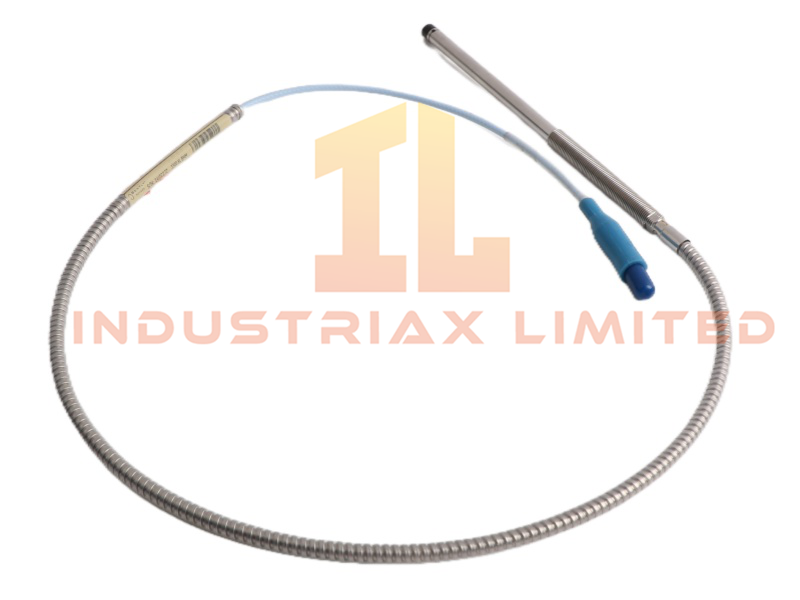

The Bently Nevada 330104-10-19-10-02-00 armored proximity probe is an 8 mm displacement sensor engineered for high‑reliability vibration and shaft position monitoring in heavy‑duty rotating machinery. Designed for use within the 3300 XL Series, it provides stable, accurate measurements in harsh industrial environments where mechanical protection and long service life are essential.
Technical Specifications
| Parameter |
Specification |
| Model |
330104-10-19-10-02-00 |
| Probe Type |
3300 XL 8 mm Armored Proximity Probe |
| Thread Size |
M10 × 1 |
| Unthreaded Length |
100 mm |
| Armored Case Length |
190 mm |
| Cable Length |
1.0 m |
| Connector Type |
Miniature coaxial ClickLoc |
| Operating Voltage |
–24 V DC |
| Certifications |
CSA, ATEX, IECEx |
| System Compatibility |
3300 XL Proximity Transducer System |
| Weight |
0.14 kg |
| Dimensions |
20.5 × 22.5 × 3.5 cm |
| HS Code |
8537101190 |
| Origin |
USA |
| Condition |
New |
| MOQ |
1 |
| Lead Time |
In stock |
| System |
TSI |
| Status |
Active |
Functional Characteristics
The 330104-10-19-10-02-00 probe is built with an armored stainless‑steel case that protects the sensing element and cable from mechanical damage, making it suitable for high‑vibration or abrasive environments. Its M10 × 1 threaded body supports precise installation depth, while the extended unthreaded section allows flexible mounting in deep or recessed housings.
The ClickLoc connector ensures a secure, vibration‑resistant connection without the need for tools, maintaining signal integrity across the probe, extension cable, and Proximitor sensor. Compliance with API 670 requirements ensures consistent linearity, temperature stability, and mechanical robustness.
This probe is widely used in turbine, compressor, and generator monitoring systems where accurate displacement measurement is essential for machinery protection.
Application Scenarios
This armored probe is ideal for:
-
Steam and gas turbines
-
Large compressors
-
Industrial generators
-
High‑vibration pump systems
-
Oil & gas and power generation equipment
-
API 670–compliant monitoring systems
FAQ
Q: What makes this probe different from standard 8 mm probes? A: It includes a full armored case and extended unthreaded length, offering superior mechanical protection and installation flexibility.
Q: Is this probe compatible with existing 3300 XL systems? A: Yes. It integrates directly with 3300 XL extension cables and Proximitor sensors.
Q: Can this model be used in hazardous areas? A: Yes. It carries CSA, ATEX, and IECEx certifications for global hazardous‑location applications.
