Description
Overview

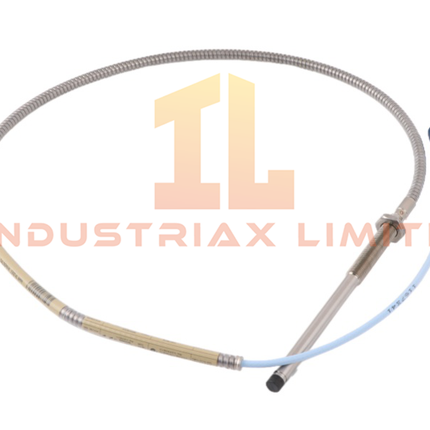

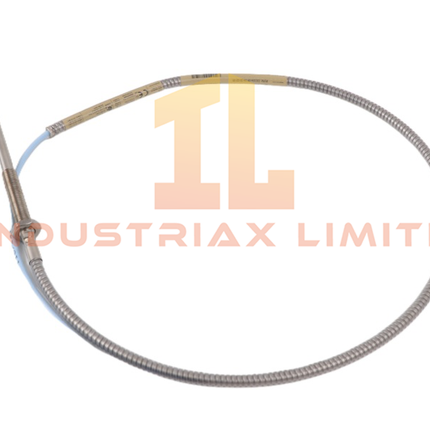

The Bently Nevada 330104‑08‑14‑05‑01‑00 proximity probe is an 8 mm eddy‑current sensor designed for accurate non‑contact vibration and displacement measurement in rotating machinery. As part of the 3300 XL series, it offers stable linearity, robust mechanical construction, and seamless compatibility with the 3300 Proximity Transducer System.
Design and Construction
This model features an M10 × 1 threaded probe with protective armor, providing enhanced durability in harsh industrial environments. It includes a minimum unthreaded length of 80 mm and a minimum case length of 140 mm, making it suitable for installations requiring extended reach or deeper mounting configurations.
The probe is supplied with a 0.5 m standard cable terminated with a miniature ClickLoc coaxial connector and a protective connector cover. The “00” suffix indicates that this configuration does not require hazardous‑area approvals, making it ideal for general industrial applications where agency certifications are not mandatory.
Manufactured in the USA and compliant with RoHS, the probe maintains the high‑quality standards associated with Bently Nevada’s vibration monitoring solutions.
Technical Specifications
| Parameter |
Specification |
| Model / Part Number |
330104‑08‑14‑05‑01‑00 |
| Probe Type |
3300 XL 8 mm Proximity Probe |
| Thread Size |
M10 × 1 |
| Unthreaded Length |
80 mm minimum |
| Case Length |
140 mm minimum |
| Cable Length |
0.5 m |
| Cable Type |
Armored |
| Connector |
Miniature coaxial ClickLoc with cover |
| Certifications |
RoHS compliant (no hazardous‑area approvals) |
| System Compatibility |
3300 Proximity Transducer System |
| Measurement Capability |
Static position + dynamic vibration |
| Operating Temperature |
–35 °C to +120 °C (typical probe rating) |
| Storage Temperature |
–51 °C to +177 °C |
| Weight |
0.06 kg |
| Dimensions |
1.8 × 1.6 × 123 cm |
| Origin |
USA |
| Condition |
Brand New |
| Availability |
In Stock |
| HS Code |
8537101190 |
| System |
TSI compatible |
Functional Description
The 330104‑08‑14‑05‑01‑00 probe provides precise displacement and vibration measurements when paired with a 3300 XL Proximitor Sensor. Its armored construction protects against mechanical damage, while the ClickLoc connector ensures secure, repeatable electrical connections.
The extended case and unthreaded lengths allow installation in deeper probe sleeves or housings, making this model suitable for a wide range of industrial machinery. Its rugged design supports long‑term reliability in oil and gas, petrochemical, municipal engineering, and general industrial environments.
Application Areas
-
Pumps, compressors, and turbines
-
Petrochemical and refinery equipment
-
Municipal and industrial rotating machinery
-
Installations requiring extended probe reach
-
General vibration and displacement monitoring
FAQ
Q: Does this model include hazardous‑area certifications No. The “00” suffix indicates no agency approvals, making it suitable for non‑hazardous industrial environments.
Q: What cable length is included This configuration includes a 0.5 m standard cable.
Q: Is the probe compatible with the 3300 XL Proximitor Sensor Yes. It integrates fully with the 3300 Proximity Transducer System.
Q: What advantages does the armored design provide It protects the probe from mechanical damage and improves durability in harsh environments.
