Description
Overview

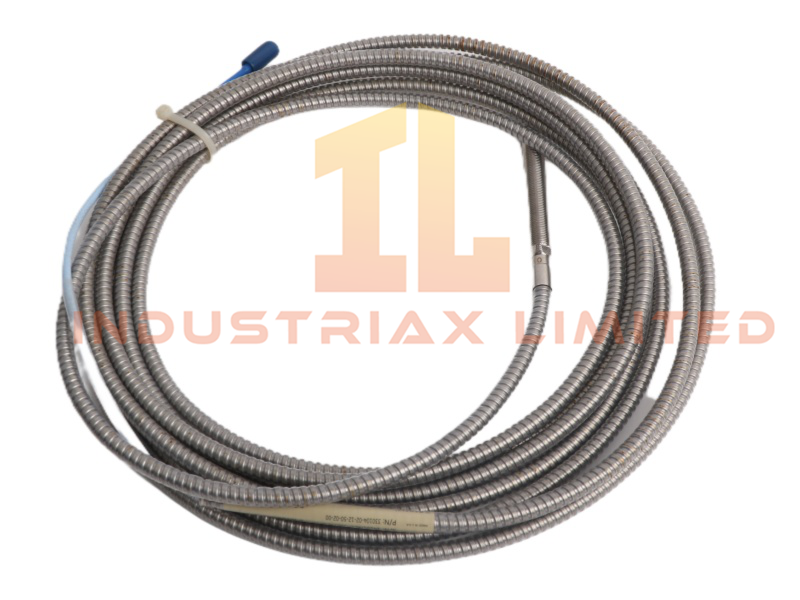

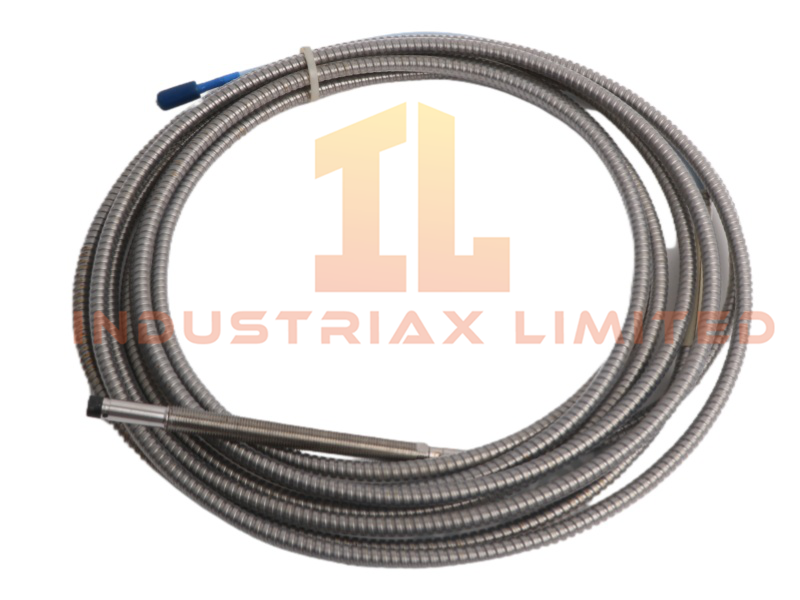

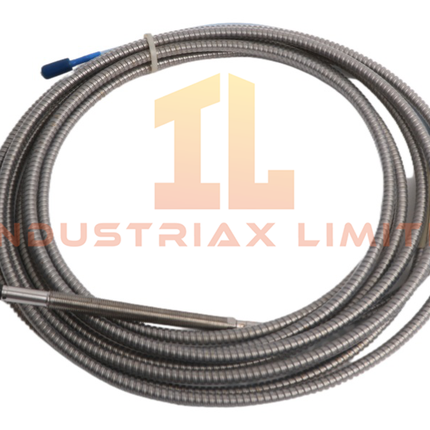

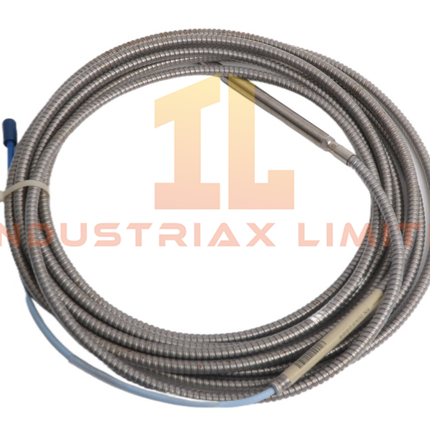

The Bently Nevada 330104-02-12-10-01-00 proximity probe is an 8 mm armored sensor designed for precise shaft displacement and vibration measurement in industrial rotating machinery. As part of the 3300 XL Proximity Transducer System, it offers high mechanical durability, stable performance, and full compatibility with existing 3300 XL and legacy 3300 components.
Technical Specifications
| Parameter |
Specification |
| Model |
330104-02-12-10-01-00 |
| Probe Type |
3300 XL 8 mm Armored Proximity Probe |
| Thread Size |
M10 × 1 |
| Construction |
Armored body for mechanical protection |
| Probe Tip Material |
Molded PPS with enhanced coil encapsulation |
| Cable Type |
Standard cable with miniature coaxial ClickLoc connector |
| System Compatibility |
3300 XL Proximity Transducer System |
| Interchangeability |
Compatible with non‑XL 3300 5 mm and 8 mm components |
| Certifications |
CSA, ATEX, IECEx |
| Weight |
0.08 kg |
| Dimensions |
112 × 1.5 × 1.2 cm |
| HS Code |
8537101190 |
| Origin |
USA |
| Condition |
New |
| MOQ |
1 |
| Lead Time |
In stock |
| System |
TSI |
| Status |
Active |
Functional Characteristics
The 330104-02-12-10-01-00 probe features an armored M10 × 1 threaded housing that provides strong mechanical protection in high‑vibration environments. The probe tip uses a reinforced PPS molding process that increases coil encapsulation thickness, improving resistance to thermal cycling and mechanical stress.
As part of the 3300 XL 8 mm system, the probe delivers accurate eddy‑current‑based displacement measurements without requiring matched calibration between components. This simplifies installation and maintenance while ensuring consistent performance across the entire transducer chain.
The probe is fully interchangeable with earlier 3300 series 5 mm and 8 mm probes, provided that minimum cable bend radius requirements are met. Its ClickLoc connector ensures secure, vibration‑resistant electrical connections, maintaining signal integrity in demanding industrial applications.
Application Scenarios
This probe is suitable for:
-
Turbines and compressors
-
High‑speed pumps and motors
-
Gearboxes and rotating equipment with fluid‑film bearings
-
API 670–aligned monitoring systems
-
Machinery requiring armored probe construction
FAQ
Q: Can this probe be used with older 3300 series systems? A: Yes. It is fully interchangeable with non‑XL 3300 5 mm and 8 mm probes and cables.
Q: Does the armored design affect measurement accuracy? A: No. The armored housing protects the probe mechanically while maintaining full linearity and accuracy within API 670 specifications.
Q: Is this model suitable for hazardous areas? A: Yes. It carries CSA, ATEX, and IECEx certifications for global industrial environments.
