Description
Overview

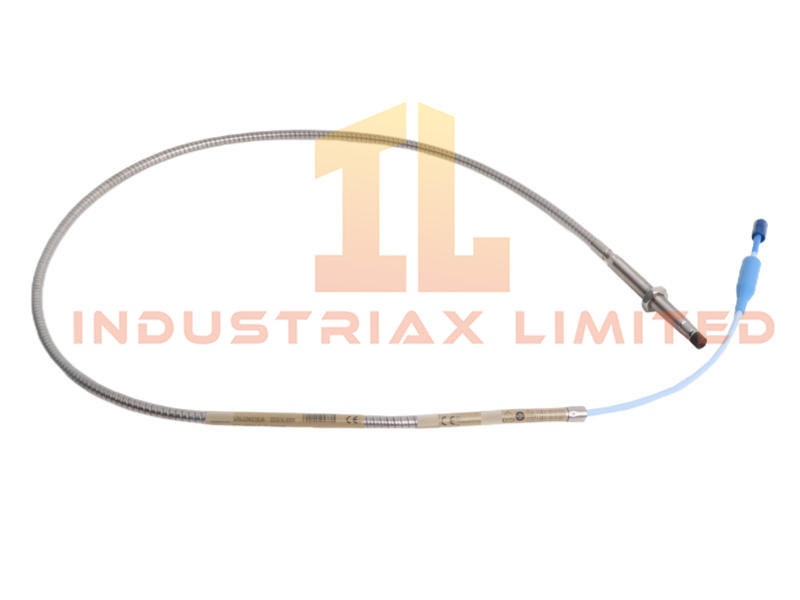

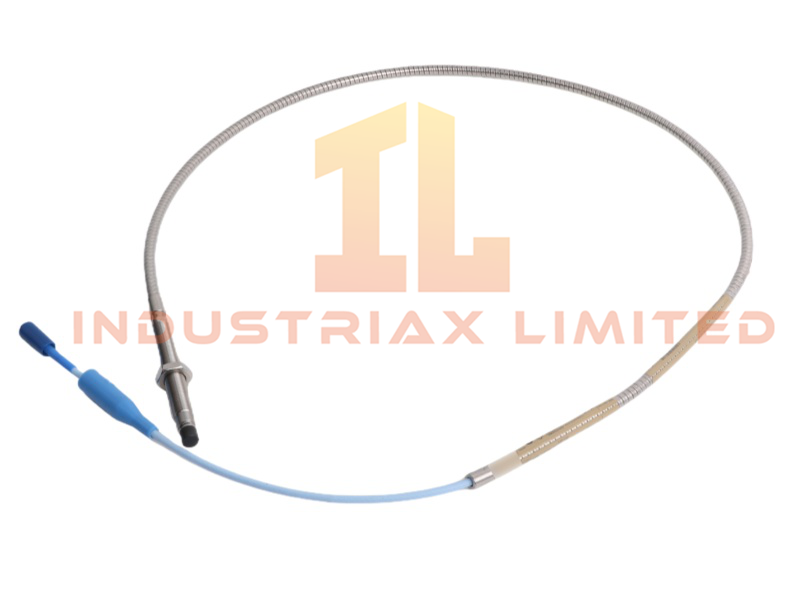

The 330104-01-12-05-01-05 Bently Nevada 3300 XL 8 mm Proximity Probe is a precision-engineered sensor designed for vibration and shaft position monitoring in fluid-film bearing machines and other critical rotating equipment. Built for durability and certified for hazardous environments, it ensures reliable performance and seamless integration within the 3300 XL Proximity Transducer System.
Technical Specifications
-
Model Number: 330104-01-12-05-01-05
-
Product Type: 3300 XL 8 mm Proximity Probe
-
Thread Size: M10 × 1
-
Minimum Unthreaded Length: 10 mm
-
Minimum Case Length: 60 mm
-
Cable Length: 0.5 m (1.6 ft) standard cable
-
Connector Type: Miniature coaxial ClickLoc connector (optional connector protector available)
-
Probe Tip Material: Molded PPS plastic with thick encapsulation for coil protection
-
Weight: 0.06 kg
-
Dimensions: 1.8 × 1.6 × 123 cm
-
System Compatibility: 3300 XL Proximity Transducer System
-
Calibration Standard: AISI 4140 steel targets
-
Interchangeability: Fully interchangeable with other 3300 XL 8 mm probes, extension cables, and Proximitor sensors
-
Backward Compatibility: Compatible with non-XL 3300 5 mm and 8 mm components
-
Compliance: API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability
-
Certifications: CSA, ATEX, IECEx approvals for hazardous area use
-
Origin: USA
-
HS Code: 8537101190
Key Features
-
Robust PPS encapsulated probe tip for enhanced mechanical durability
-
Compact design suitable for installations with limited space
-
Certified for hazardous environments (CSA, ATEX, IECEx)
-
Fully interchangeable with 3300 XL system components, eliminating calibration requirements
-
Reliable static and dynamic measurement capability for vibration and shaft position monitoring
Application Scenarios
The 330104-01-12-05-01-05 probe is widely used in turbines, compressors, pumps, and other fluid-film bearing machines. It is particularly suited for Keyphasor® applications, shaft speed monitoring, and environments requiring certified safety compliance.
FAQ
Q: Does this probe require calibration when installed? A: No, it is fully interchangeable and does not require bench calibration.
Q: What certifications does it carry? A: CSA, ATEX, and IECEx approvals for hazardous area use.
Q: Can it be used with older 3300 series components? A: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm components.
