Description
Overview

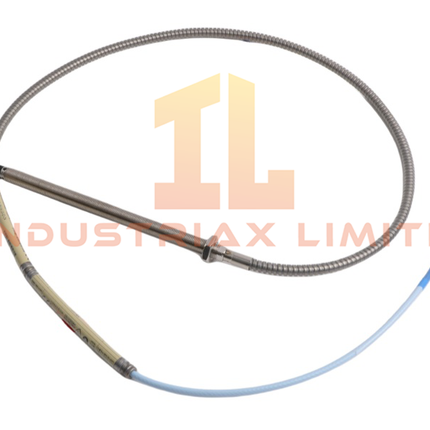

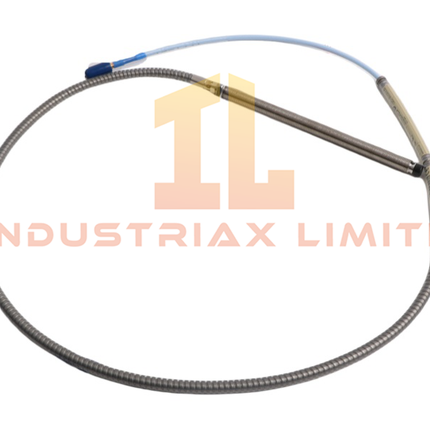

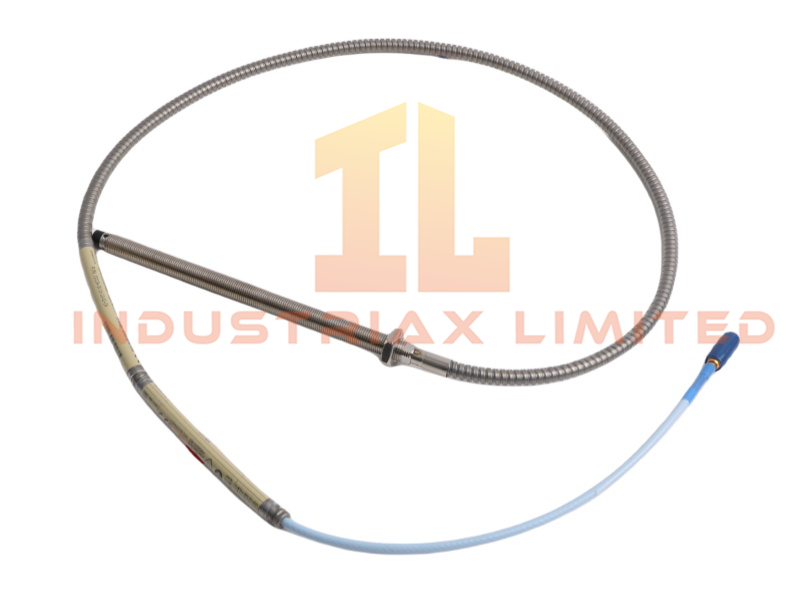

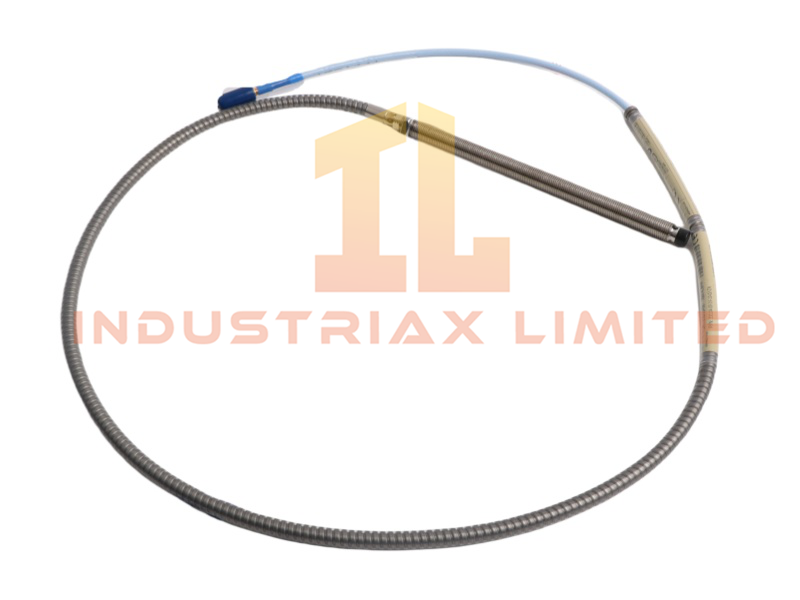

The Bently Nevada 330104‑00‑16‑10‑02‑05 proximity probe belongs to the 3300 XL 8 mm transducer family and is designed for precise shaft vibration and displacement measurements in rotating machinery. This model includes armored cable protection and a 1.6‑meter probe assembly length, making it suitable for installations exposed to mechanical stress, oil contamination, or elevated temperatures.
Key Characteristics
-
Model: 330104‑00‑16‑10‑02‑05
-
Probe Type: 8 mm proximity probe with armored cable
-
Thread Specification: M10 × 1
-
Probe Length: 1.6 m
-
Connector: Miniature coaxial ClickLoc
-
System Compatibility: 3300 XL Proximity Transducer System
-
Certifications: CSA, ATEX, IECEx
-
Weight: 0.06 kg
-
Dimensions: 115 × 2 × 1.5 cm
Functional Description
The 330104‑00‑16‑10‑02‑05 probe uses an eddy‑current sensing coil encapsulated in a molded PPS plastic tip, providing enhanced resistance to oil ingress, moisture, and mechanical wear. The armored cable construction protects the probe from abrasion and crushing forces, making it suitable for harsh industrial environments such as turbine decks, compressor housings, and pump skids.
This model is fully compatible with other components in the 3300 XL system, including extension cables and Proximitor sensors. Because the system is factory‑matched, no bench calibration is required when replacing or interchanging components.
The probe’s shielding and internal design provide strong immunity to RFI/EMI interference, allowing installation in non‑metallic housings while maintaining CE compliance. Its compact form factor supports both DIN‑rail and panel‑mounted monitoring systems.
Technical Specifications
Mechanical
| Parameter |
Value |
| Probe Tip Diameter |
8 mm |
| Thread Type |
M10 × 1 |
| Probe Length |
1.6 m |
| Cable Type |
Armored coaxial |
| Connector |
Miniature ClickLoc |
| Weight |
0.06 kg |
| Shipping Dimensions |
115 × 2 × 1.5 cm |
Electrical
| Parameter |
Value |
| Sensitivity |
7.87 V/mm (200 mV/mil) typical |
| Linear Range |
2 mm (80 mil) |
| Frequency Response |
DC to 10 kHz |
| System Compatibility |
3300 XL Proximitor sensors |
| Grounding |
Single‑point shield grounding recommended |
Environmental
| Parameter |
Value |
| Operating Temperature |
–35°C to +177°C (probe only) |
| Humidity |
95% non‑condensing |
| Certifications |
CSA, ATEX, IECEx |
| RFI/EMI Immunity |
CE‑compliant without shielded conduit |
Applications
-
Turbines (steam, gas, hydro)
-
Compressors and expanders
-
Industrial pumps and motors
-
Gearboxes and high‑speed rotating equipment
-
API 670‑compliant vibration protection systems
FAQ
Q: Does this probe require calibration after installation? A: No. The probe, extension cable, and Proximitor sensor are factory‑matched and do not require bench calibration.
Q: Can this probe be used in oil‑rich environments? A: Yes. The armored cable and PPS‑encapsulated tip provide excellent resistance to oil and moisture.
Q: Is it interchangeable with other 3300 XL 8 mm probes? A: Yes. All 3300 XL 8 mm probes are designed for full interchangeability within the system.
