Description

Overview

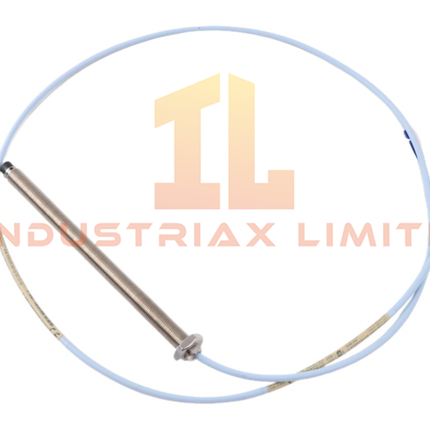

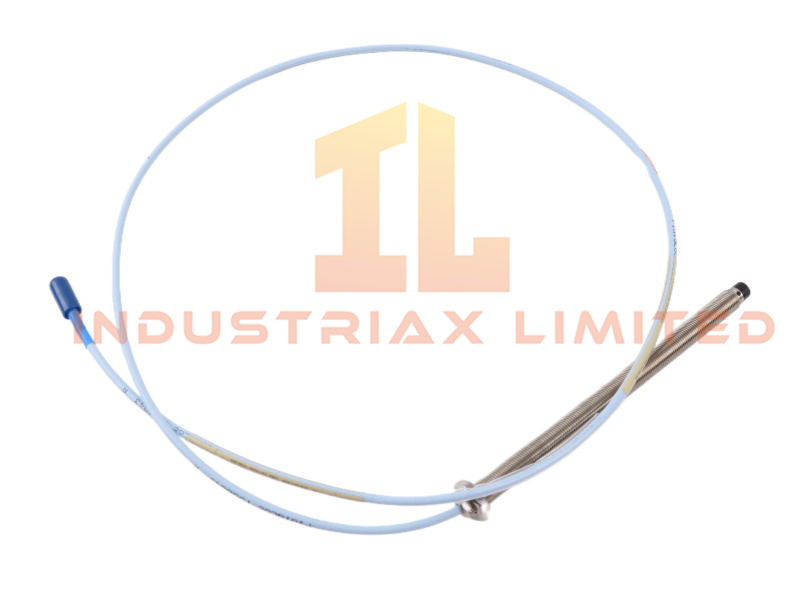

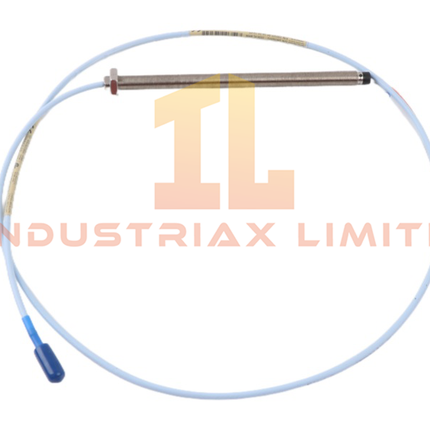

The Bently Nevada 330103‑00‑17‑10‑02‑CN proximity probe is part of the 3300 XL 8 mm transducer family, engineered for high‑accuracy shaft vibration and position measurement in fluid‑film bearing machinery. Built with a stainless‑steel housing and an M10 × 1 threaded configuration, this model provides stable performance in demanding industrial environments while maintaining full compatibility with the 3300 XL monitoring platform.

Key Characteristics

• 8 mm eddy‑current probe for displacement and vibration monitoring

• M10 × 1 threaded stainless‑steel body with 17 mm case length

• Integrated 1.0‑meter coaxial cable with ClickLoc miniature connector

• Wide operating temperature range: −52°C to +177°C (extendable to +218°C with ETR components)

• Lightweight construction for simplified installation

• Fully compatible with all 3300 XL proximity transducer components

• Suitable for both static position and dynamic vibration measurement

Technical Specifications

Parameter	Specification
Model / Part Number	330103‑00‑17‑10‑02‑CN
Probe Type	3300 XL 8 mm Proximity Probe
Thread Size	M10 × 1
Case Length	17 mm
Cable Length	1.0 m
Connector Type	Miniature coaxial ClickLoc
Operating Temperature	−52°C to +177°C (up to +218°C with ETR)
Measurement Principle	Eddy‑current displacement
Output	Voltage proportional to probe‑target gap
Weight	0.06 kg
Dimensions	1.8 × 1.6 × 123 cm
System Compatibility	3300 XL Proximity Transducer System
Condition	Brand New
Origin	USA
MOQ	1
HS Code	8537101190

Functional Description

The 330103‑00‑17‑10‑02‑CN probe is designed to deliver precise displacement and vibration measurements for rotating machinery. Its stainless‑steel housing and compact mechanical profile support installation in confined or high‑density equipment layouts. The integrated 1‑meter cable eliminates the need for a separate extension cable in many applications, simplifying installation and reducing potential failure points.

The probe’s sensing element generates a voltage proportional to the distance between the probe tip and the conductive target surface, enabling accurate monitoring of:

• Shaft radial vibration

• Axial position

• Thermal growth

• Keyphasor phase reference

Its wide temperature capability and rugged construction make it suitable for turbines, compressors, pumps, and other critical assets operating in harsh industrial environments.

The probe maintains full electrical and mechanical compatibility with all 3300 XL components, ensuring seamless integration into existing systems without requiring matched sets or recalibration.

Application Scenarios

• Steam and gas turbines

• Centrifugal compressors

• Industrial pumps and fans

• Gearboxes and generators

• Machinery requiring high‑temperature probe operation

FAQ

Q: What does the “CN” suffix indicate  It identifies a configuration tailored for regional installation requirements while maintaining full 3300 XL compatibility.

Q: Can this probe be used in high‑temperature environments  Yes. It supports up to +177°C, and up to +218°C when used with ETR components.

Q: Is this probe compatible with older 3300 systems  Yes. It integrates seamlessly with both XL and legacy 3300 components.

Specifications

• Dimensions: 1.8 × 1.6 × 123 cm
• Brand: Bently Nevada

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
