Description
Overview

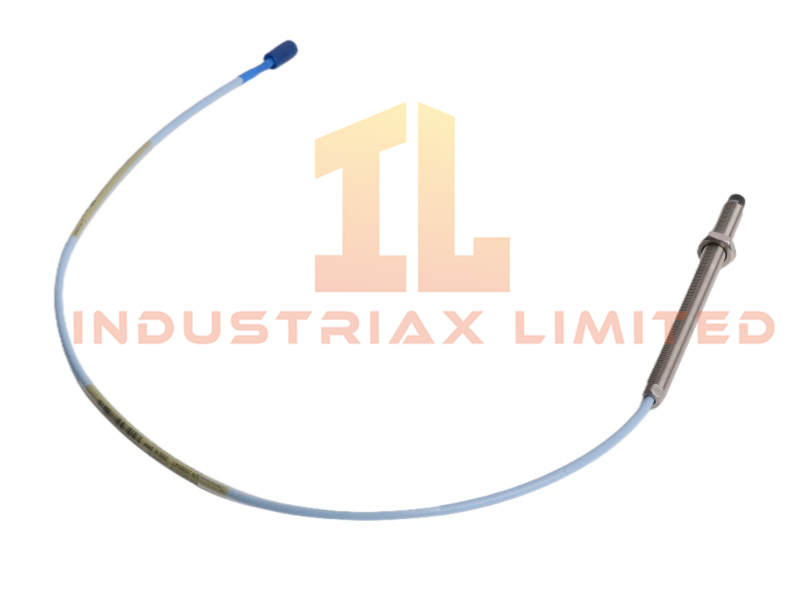

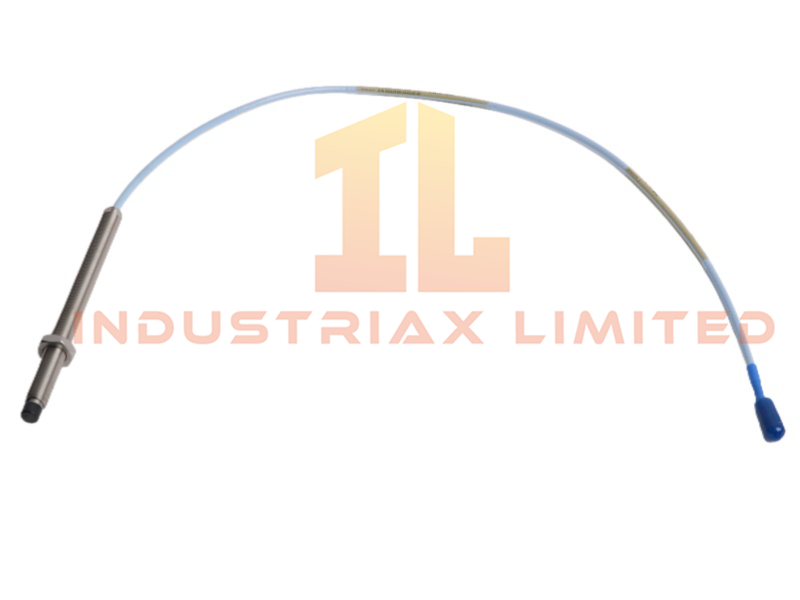

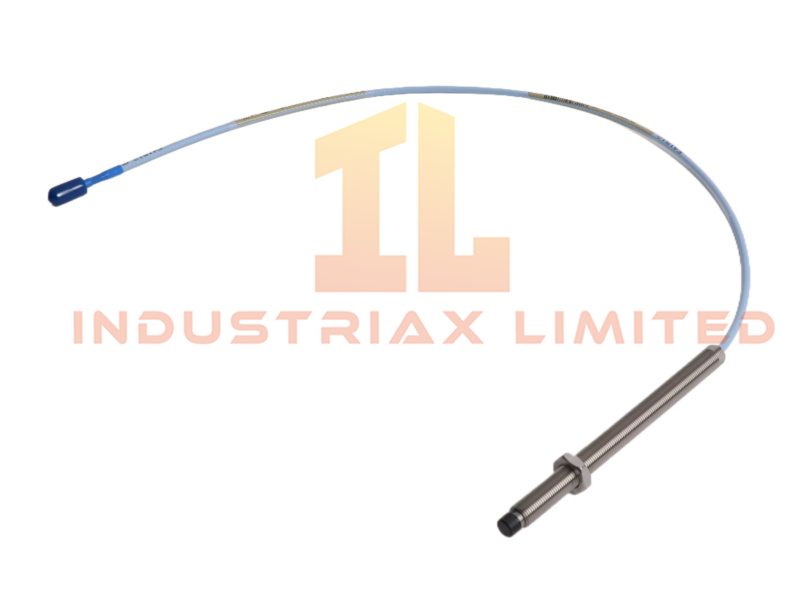

The 330103-00-13-05-02-00 Proximity Probe from Bently Nevada is part of the 3300 XL series, designed for high-accuracy vibration and displacement monitoring in rotating machinery. This probe system includes the XL probe, extension cable, and Proximitor sensor, delivering precise voltage output proportional to the probe-to-target gap. It is engineered for fluid-film bearing applications and critical equipment protection.
Technical Specifications
| Parameter |
Value |
| Model Number |
330103-00-13-05-02-00 |
| Product Type |
3300 XL 8 mm Proximity Probe |
| Manufacturer |
Bently Nevada |
| Condition |
Brand New |
| Compatible System |
3300 XL Proximity Transducer System |
| Thread Size |
M10 × 1 (non-armored) |
| Cable Length |
0.5 m with ClickLoc coaxial connector |
| Case Length Options |
20 mm to 250 mm (10 mm increments) |
| Standard System Length |
5 m (probe + extension cable + sensor) |
| Compliance |
API 670 standard |
| Weight |
0.08 kg |
| Dimensions |
112 × 1.5 × 1.2 cm |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| Lead Time |
In Stock |
| System Integration |
TSI |
| Status |
Active |
Key Features
-
Complete transducer system with probe, extension cable, and Proximitor sensor
-
Output voltage proportional to probe-target distance for accurate vibration and position monitoring
-
Fully compliant with API 670 mechanical and performance standards
-
Interchangeable components, eliminating the need for bench calibration
-
Flexible case length options to suit diverse installation requirements
-
Compact coaxial ClickLoc connector for secure and reliable connections
Application Scenarios
-
Monitoring turbomachinery with fluid-film bearings in power generation plants
-
Overspeed and tachometer protection in oil and gas operations
-
Precision displacement measurement in manufacturing and heavy industry
-
Predictive maintenance programs requiring continuous monitoring of critical assets
FAQ
Q: Does the 330103-00-13-05-02-00 include an extension cable? A: Yes, the standard system includes a probe, extension cable, and Proximitor sensor.
Q: What is the compliance standard? A: The system meets API 670 requirements for mechanical configuration, linear range, and temperature stability.
Q: Can the case length be customized? A: Yes, lengths are available from 20 mm to 250 mm in 10 mm increments.
