Description
Overview

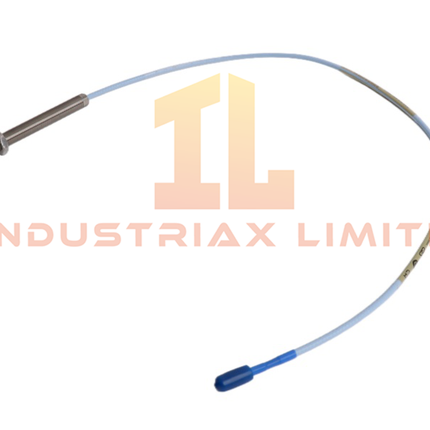

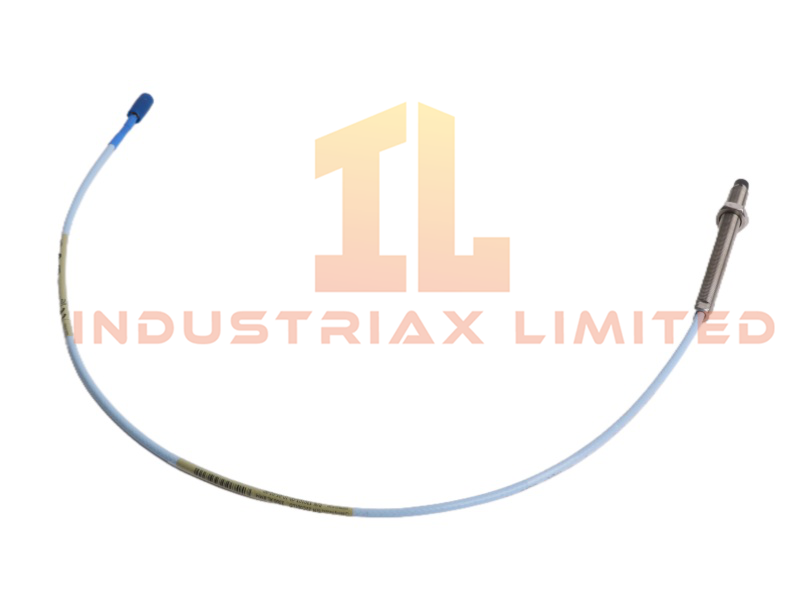

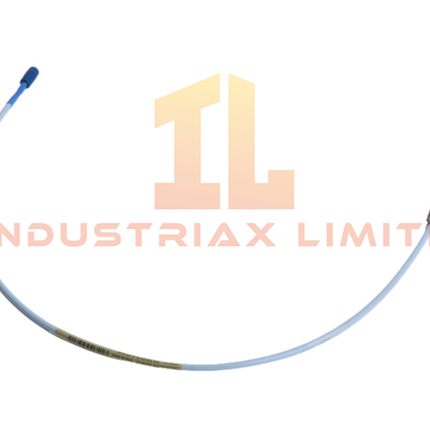

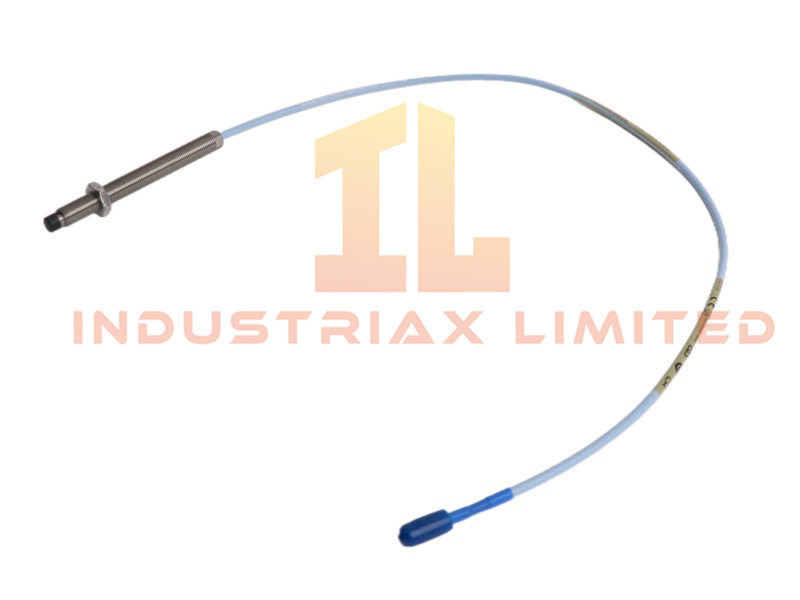

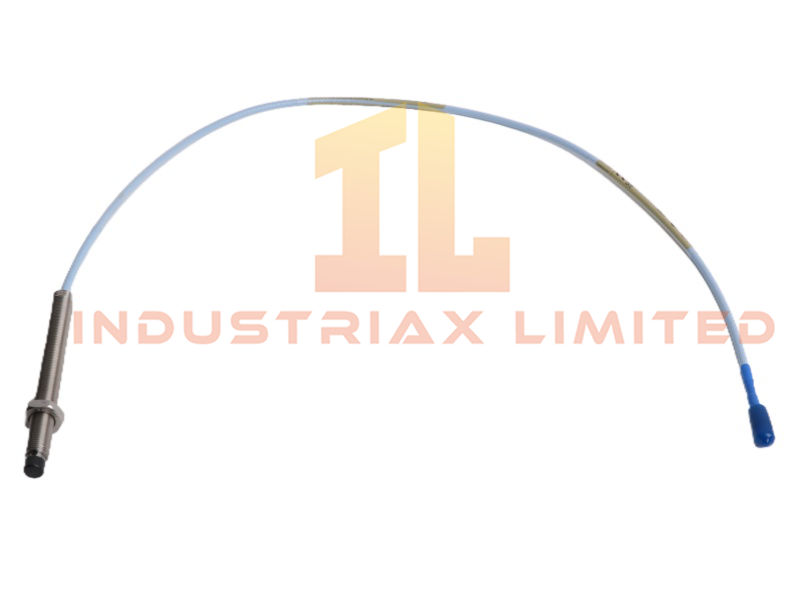

The Bently Nevada 330103‑00‑10‑05‑02‑05 proximity probe is an 8 mm eddy‑current sensor designed for precise shaft vibration and displacement measurement in rotating machinery. As part of the 3300 XL series, it delivers stable linearity, long‑term reliability, and full compatibility with the 3300 XL Proximitor Sensor and extension cables.
Design and Construction
This configuration features an unarmored M10 × 1 threaded probe with a 100 mm case length, making it suitable for installations where compact dimensions are required. The probe includes a 0.5 m standard cable terminated with a miniature ClickLoc coaxial connector, providing secure, repeatable electrical connections and simplified installation.
The probe is certified for hazardous‑area use under CSA, ATEX, and IECEx standards, ensuring compliance with global safety requirements. When paired with the 3300 XL Proximitor Sensor, the system benefits from enhanced RFI/EMI immunity, electrical isolation, and flexible mounting options including DIN‑rail and panel configurations.
Technical Specifications
| Parameter |
Specification |
| Model / Part Number |
330103‑00‑10‑05‑02‑05 |
| Probe Type |
3300 XL 8 mm Proximity Probe |
| Thread Size |
M10 × 1 |
| Case Length |
100 mm |
| Cable Length |
0.5 m |
| Cable Type |
Standard unarmored |
| Connector |
Miniature coaxial ClickLoc |
| System Compatibility |
3300 XL Proximitor Sensor |
| Certifications |
CSA, ATEX, IECEx |
| Measurement Capability |
Static position + dynamic vibration |
| Operating Temperature |
–35 °C to +120 °C (typical probe rating) |
| Storage Temperature |
–51 °C to +177 °C |
| Weight |
0.14 kg |
| Dimensions |
20.5 × 22.5 × 3.5 cm |
| Origin |
USA |
| Condition |
Brand New |
| Availability |
In Stock |
| HS Code |
8537101190 |
| System |
TSI compatible |
Functional Description
The 330103‑00‑10‑05‑02‑05 probe forms the sensing element of the 3300 XL system, generating a voltage proportional to the distance between the probe tip and the monitored conductive surface. When used with the XL Proximitor Sensor, it provides high‑resolution vibration and displacement measurements with excellent immunity to electrical noise.
The system maintains stable performance even in fiberglass housings or environments with significant radio‑frequency interference. Its compatibility with the Proximitor Sensor’s 4‑hole mounting pattern ensures easy integration into existing monitoring systems.
Application Areas
-
Steam and gas turbines
-
Centrifugal and reciprocating compressors
-
Gearboxes and industrial motors
-
Fluid‑film bearing machines
-
Hazardous‑area installations
-
Machinery requiring compact probe dimensions
FAQ
Q: What cable length is included with this probe This configuration includes a 0.5 m standard cable.
Q: Is the probe suitable for hazardous areas Yes. It carries CSA, ATEX, and IECEx certifications.
Q: Can this probe be used with non‑XL components It is designed for XL systems but maintains backward compatibility with many 3300‑series components.
Q: What advantages does the ClickLoc connector provide It ensures secure, tool‑free installation and reliable signal integrity.
