Description
Overview

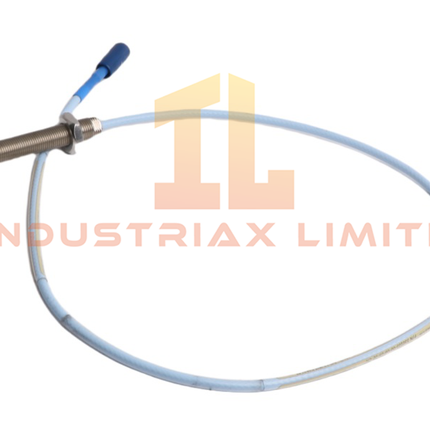

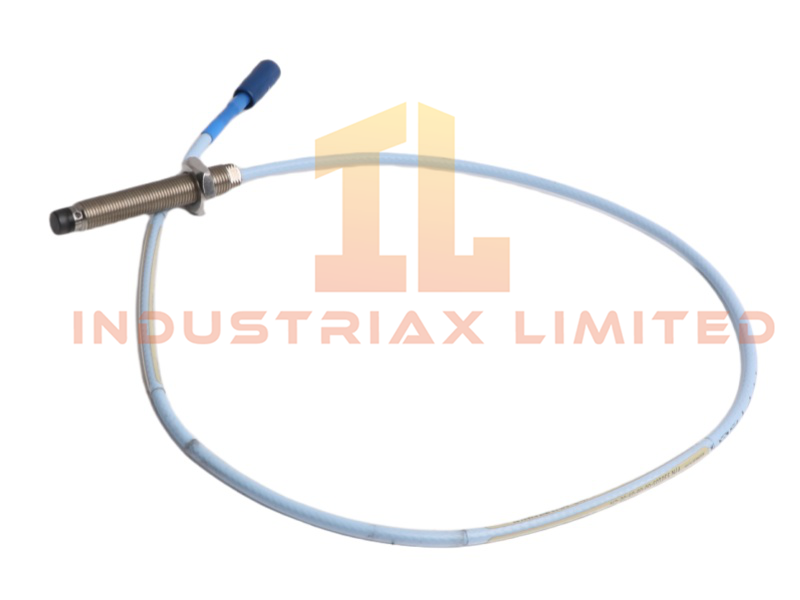

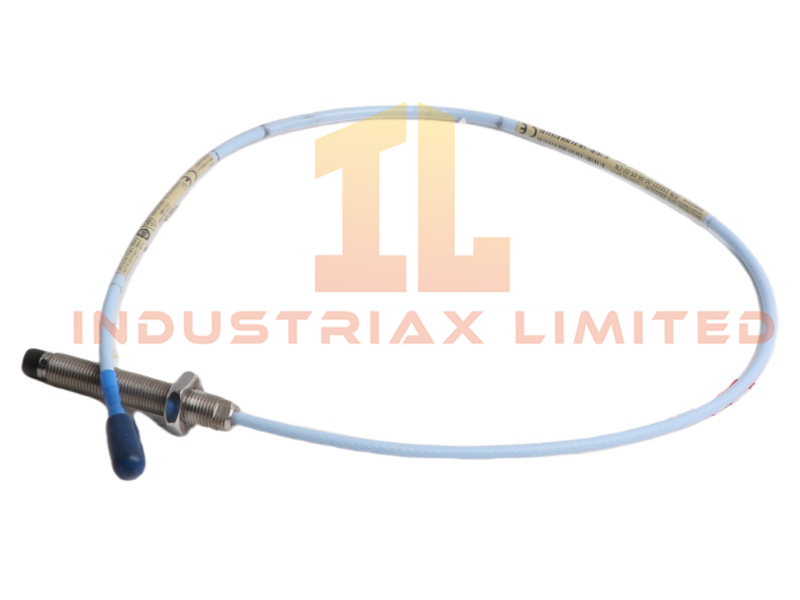

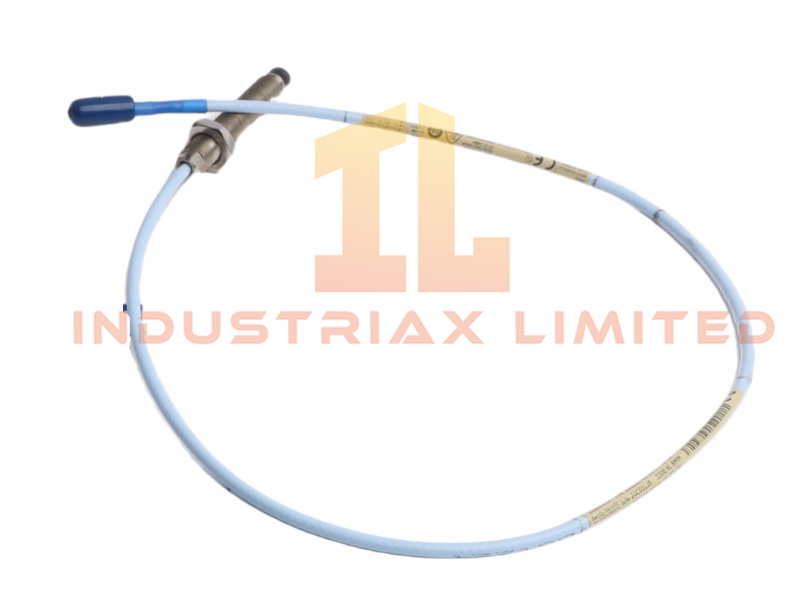

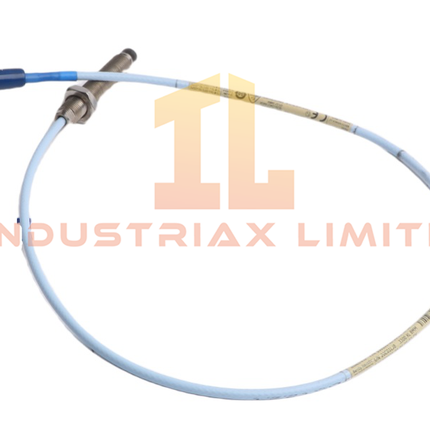

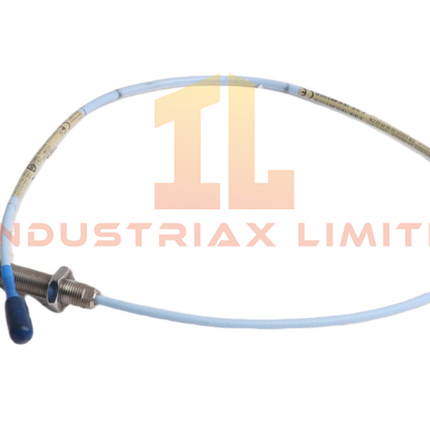

The Bently Nevada 330103‑00‑06‑05‑02‑05 proximity probe is part of the 3300 XL 8 mm transducer family, engineered for precise shaft vibration and position measurements in rotating machinery. This probe assembly is designed for long‑term stability, high linearity, and reliable operation in electrically noisy industrial environments.
Key Features
-
Probe Model: 330103‑00‑06‑05‑02‑05
-
Probe Type: 8 mm unarmored proximity probe
-
Thread Specification: M10 × 1
-
Minimum Case Length: 60 mm
-
Cable Length: 0.5 m (1.6 ft), miniature coaxial ClickLoc connector
-
System Compatibility: 3300 XL Proximity Transducer System
-
Certifications: CSA, ATEX, IECEx
-
RFI/EMI Performance: Enhanced immunity suitable for fiberglass housings without shielded conduit
-
Operating Principle: Eddy‑current displacement measurement
-
Typical Applications: Shaft vibration, axial position, phase reference, and radial clearance monitoring
Technical Specifications
Mechanical
| Parameter |
Value |
| Probe Tip Diameter |
8 mm |
| Thread Type |
M10 × 1 |
| Case Length |
≥ 60 mm |
| Cable Length |
0.5 m |
| Connector Type |
Miniature coaxial ClickLoc |
| Weight |
0.06 kg |
| Shipping Dimensions |
115 × 2.5 × 1.5 cm |
Electrical
| Parameter |
Value |
| Sensitivity |
7.87 V/mm (200 mV/mil) typical |
| Linear Range |
2 mm (80 mil) |
| Frequency Response |
DC to 10 kHz |
| System Compatibility |
3300 XL Proximity System (Probes + Extension Cable + Proximitor) |
| Grounding |
Single‑point shield grounding recommended |
Environmental
| Parameter |
Value |
| Operating Temperature |
–35°C to +177°C (probe only) |
| Humidity |
95% non‑condensing |
| Certifications |
CSA, ATEX, IECEx |
| RFI/EMI Immunity |
Meets CE requirements without metallic conduit |
Functional Description
The 330103‑00‑06‑05‑02‑05 probe uses an eddy‑current sensing coil to detect the distance between the probe tip and a conductive target surface, typically a rotating shaft. Its improved electromagnetic shielding allows installation in non‑metallic housings without performance degradation. The ClickLoc connector ensures secure attachment to extension cables, preventing accidental loosening under vibration.
The probe is optimized for use with the 3300 XL Proximitor sensor, forming a calibrated measurement chain that delivers stable displacement and vibration readings across a wide temperature range.
Applications
FAQ
Q: Can this probe be mixed with older 7200 series components? A: No. Mixing 3300 XL probes with older systems results in incorrect calibration and is not recommended.
Q: Does the probe require metallic conduit for CE compliance? A: No. Its enhanced RFI/EMI immunity allows installation in fiberglass or non‑metallic housings.
Q: Is the probe suitable for high‑temperature zones?
