Description
Overview

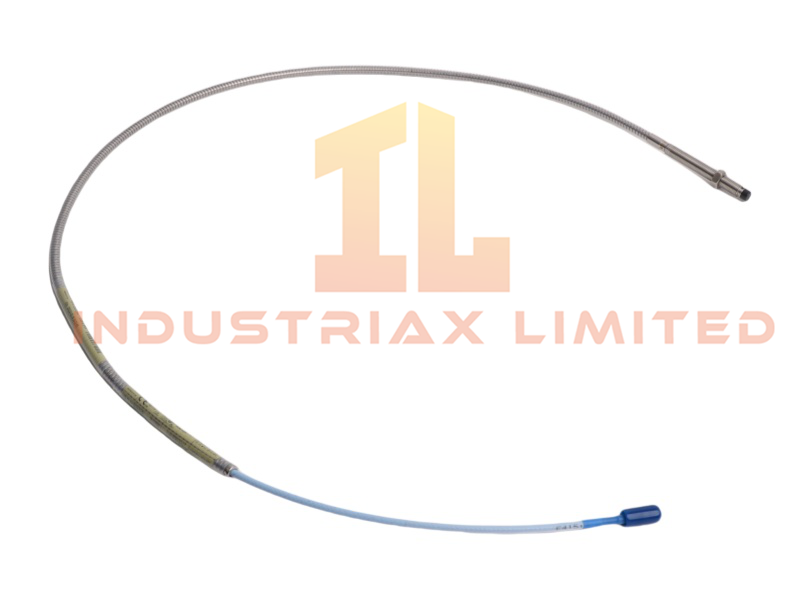

The 330102‑00‑28‑10‑02‑05 proximity probe is part of Bently Nevada’s 3300 XL 8 mm transducer family, engineered for precise shaft displacement and vibration measurement in rotating machinery. Designed for integration into the 3300 Proximity Transducer System, it provides stable, repeatable performance in demanding industrial environments where accurate condition monitoring is essential.
Design and Construction
This model features a 3/8‑24 UNF threaded probe body and a factory‑matched cable assembly to maintain linearity and measurement accuracy. The probe includes a standard 1.0‑meter cable and a Miniature ClickLoc connector, ensuring secure, corrosion‑resistant connections. Armored cable protection enhances durability in high‑vibration or abrasive environments, while optional FluidLoc technology prevents oil ingress in lubrication‑rich applications.
Technical Specifications
| Parameter |
Specification |
| Model |
330102‑00‑28‑10‑02‑05 |
| Product Type |
8 mm Proximity Probe |
| Probe Tip Diameter |
8 mm |
| Thread Type |
3/8‑24 UNF |
| Cable Length |
1.0 m |
| Connector Type |
Miniature ClickLoc |
| Pull Strength |
330 N (75 lbf) |
| Temperature Range |
–51°C to +177°C |
| Certifications |
ATEX, IECEx, CSA |
| System Compatibility |
3300 XL Proximity Transducer System |
| Dimensions |
20.4 × 22.2 × 3.7 cm |
| Weight |
0.15 kg |
| Origin |
USA |
| HS Code |
8537101190 |
| Product Status |
Active |
Functional Characteristics
-
High‑accuracy displacement and vibration measurement for critical rotating equipment
-
TipLoc and CableLoc construction for improved mechanical integrity
-
Gold‑plated ClickLoc connectors with audible locking feedback
-
Full interchangeability with other 3300 XL 8 mm components
-
Suitable for hazardous areas with global safety approvals
-
No recalibration required when replacing matched components
Application Scenarios
-
Turbines, compressors, and high‑speed pumps
-
Shaft position and radial vibration monitoring
-
Machinery protection systems in power generation and petrochemical plants
-
Environments requiring armored or fluid‑resistant cable assemblies
Model Comparison
| Model |
Probe Tip |
Cable Length |
Protection |
Typical Use |
| 330102‑00‑28‑10‑02‑05 |
8 mm |
1.0 m |
Armored |
Standard industrial machinery |
| 330102‑00‑12‑10‑02‑05 |
8 mm |
5 m |
Armored |
Long‑distance routing |
| 330103‑00‑04‑10‑02‑05 |
5 mm |
1 m |
Unarmored |
Tight‑clearance installations |
FAQ
Q: Does this probe require calibration before installation? A: No. The 330102‑00‑28‑10‑02‑05 is factory‑matched with its extension cable and driver, eliminating field calibration.
Q: Can it be used in hazardous areas? A: Yes. It carries ATEX, IECEx, and CSA certifications.
Q: Is the probe compatible with older 3300 systems? A: It is fully compatible with the 3300 XL system and supports backward compatibility with selected 5 mm and 8 mm components.
