Description

Overview

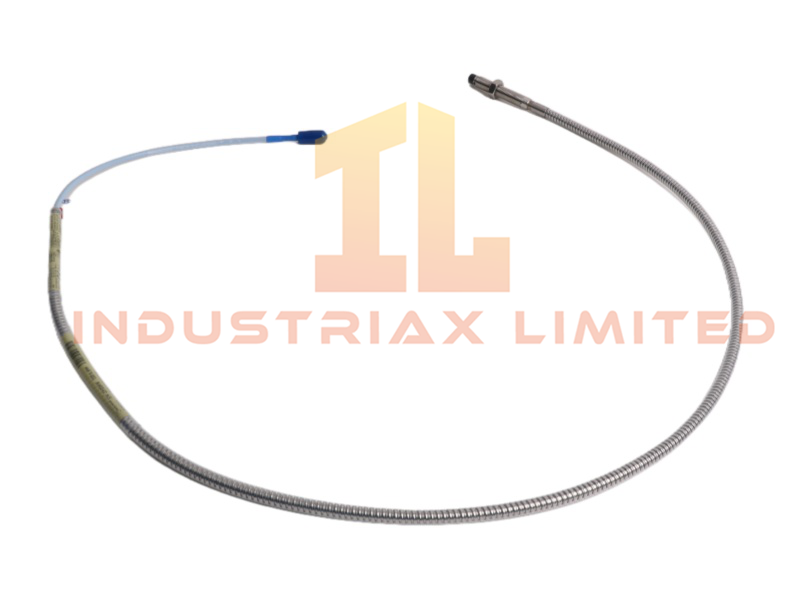

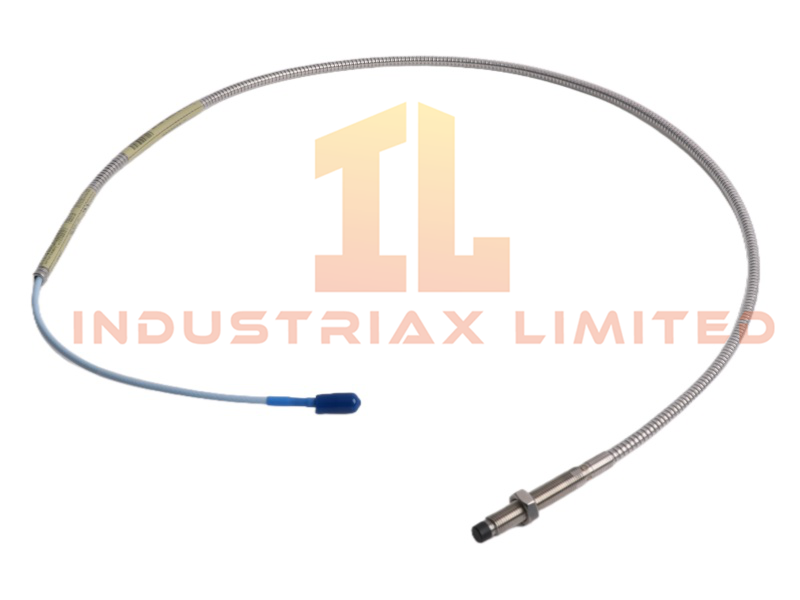

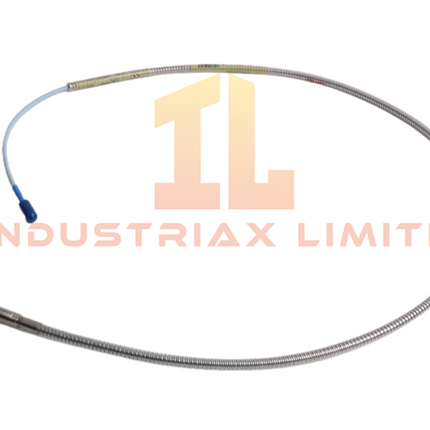

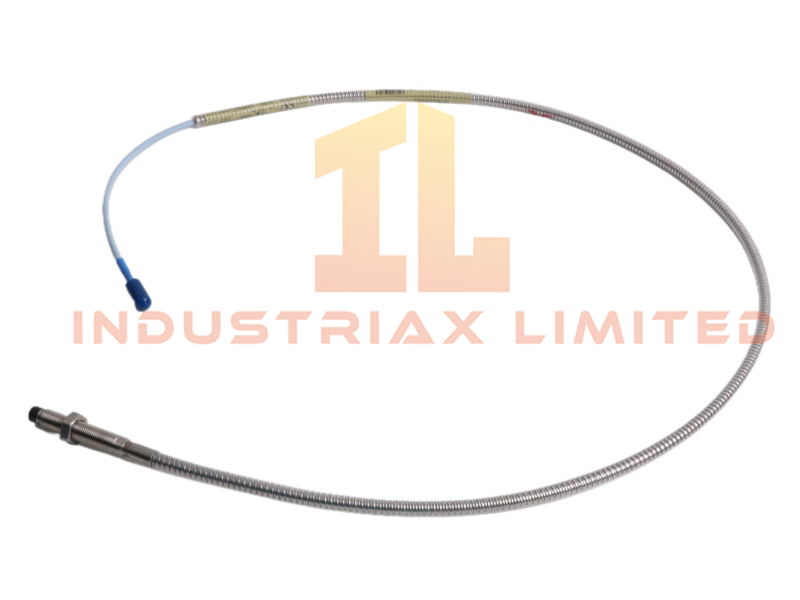

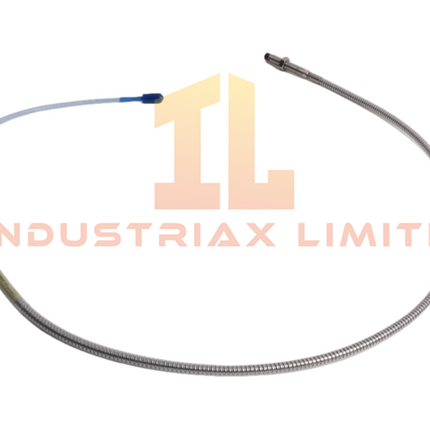

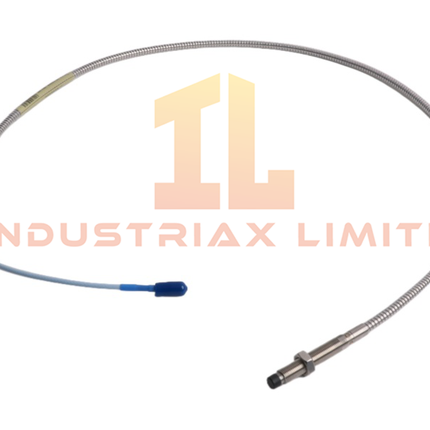

The Bently Nevada 330102‑00‑20‑15‑02‑00 proximity probe is part of the 3300 XL 8 mm transducer family, engineered for precise shaft vibration and position measurement in fluid‑film bearing machinery. Its eddy‑current sensing technology delivers stable, linear output suitable for both protection and diagnostic applications in high‑value rotating equipment.

Key Characteristics

• 8 mm probe tip optimized for API 670‑compliant installations

• 3/8‑24 UNF stainless steel threaded housing

• Minimum case length of 2 inches for compact mounting locations

• 1.5‑meter coaxial cable with ClickLoc miniature connector

• Fully interchangeable with 3300 XL and legacy 3300 components

• Designed for static position, dynamic vibration, and Keyphasor reference measurements

• Rugged construction for harsh industrial environments

Technical Specifications

Parameter	Specification
Model / Part Number	330102‑00‑20‑15‑02‑00
Probe Type	3300 XL 8 mm Proximity Probe
Thread Size	3/8‑24 UNF
Minimum Case Length	2 in
Cable Length	1.5 m
Connector Type	Miniature coaxial ClickLoc
Sensitivity	200 mV/mil
Power Supply	−24 V DC (via Proximitor sensor)
Measurement Principle	Eddy‑current displacement
Operating Temperature	−20°C to +80°C
Housing Material	Stainless steel
Weight	1.48 kg
Dimensions	28 × 26 × 6 cm
System Compatibility	3300 XL Proximity Transducer System
Interchangeability	XL and non‑XL 3300 series
Condition	Brand New
Origin	USA
MOQ	1
HS Code	8537101190

Functional Description

The 330102‑00‑20‑15‑02‑00 probe forms part of a three‑component transducer system consisting of the probe, extension cable, and Proximitor sensor. The probe generates a voltage proportional to the distance between the probe tip and the rotating shaft surface, enabling accurate monitoring of:

• Shaft radial vibration

• Axial position

• Thermal growth

• Keyphasor phase reference

• Speed measurement

Its stainless steel housing and armored cable options support installation in demanding environments. The probe maintains the same mounting pattern as earlier 3300 designs, simplifying upgrades and retrofits. With standardized electrical characteristics and full component interchangeability, the probe ensures consistent performance across new and existing systems.

Application Scenarios

• Steam and gas turbines

• Centrifugal compressors

• Industrial pumps

• Gearboxes and generators

• Oil & gas, power generation, and heavy industrial machinery

FAQ

Q: Is this probe compatible with older 3300 systems?  A: Yes. It is electrically and mechanically interchangeable with both XL and non‑XL 3300 components when matched by cable length.

Q: What is the typical linear range of an 8 mm probe?  A: Approximately 2 mm, depending on calibration and target material.

Q: Can this probe be used for Keyphasor applications?  A: Yes. When paired with the appropriate Proximitor module, it supports phase reference and speed measurement.

Specifications

• Dimensions: 28 × 26 × 6 cm
• Brand: Bently Nevada

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
