Description
Overview

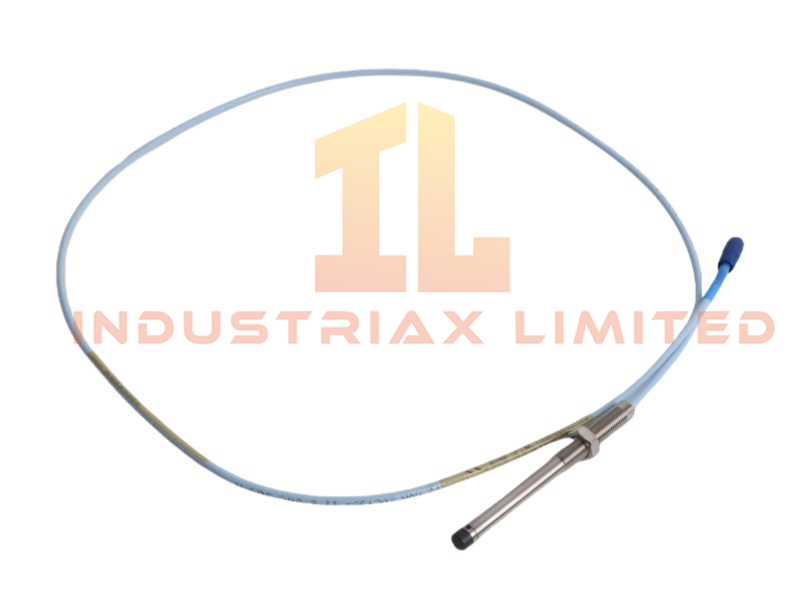

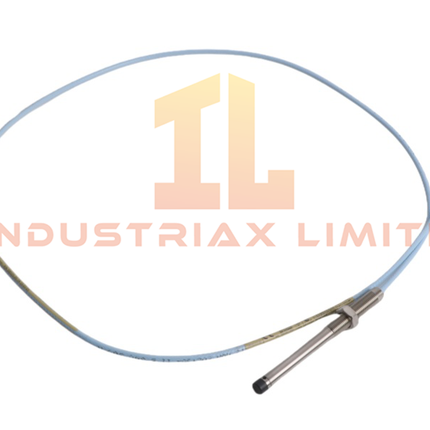

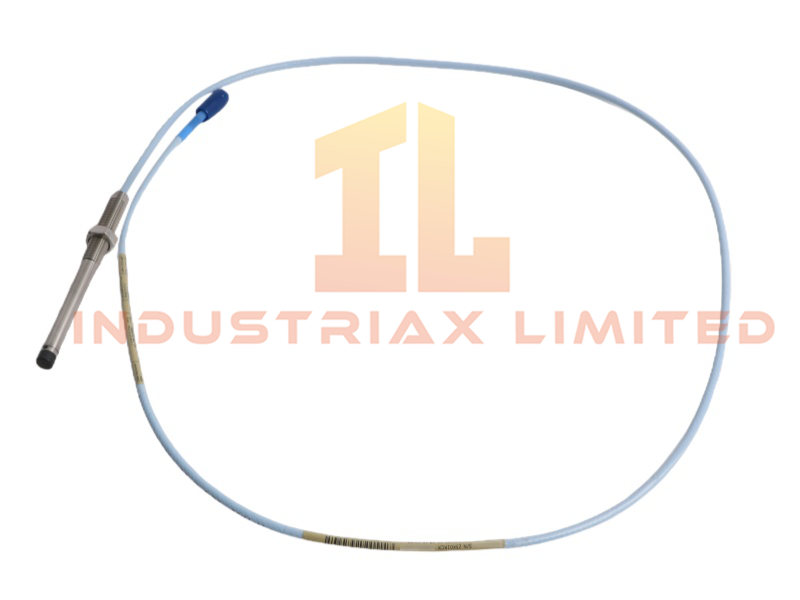

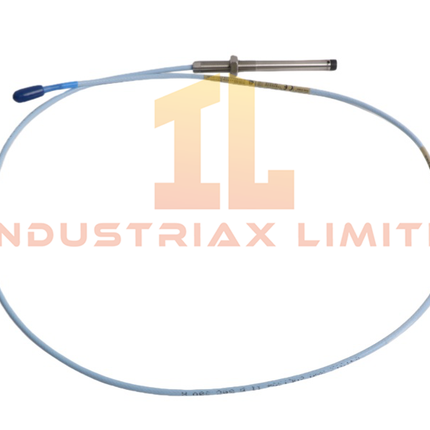

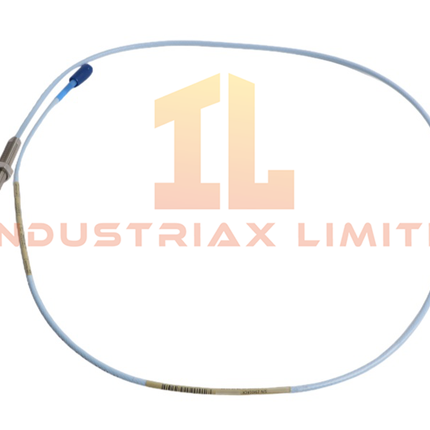

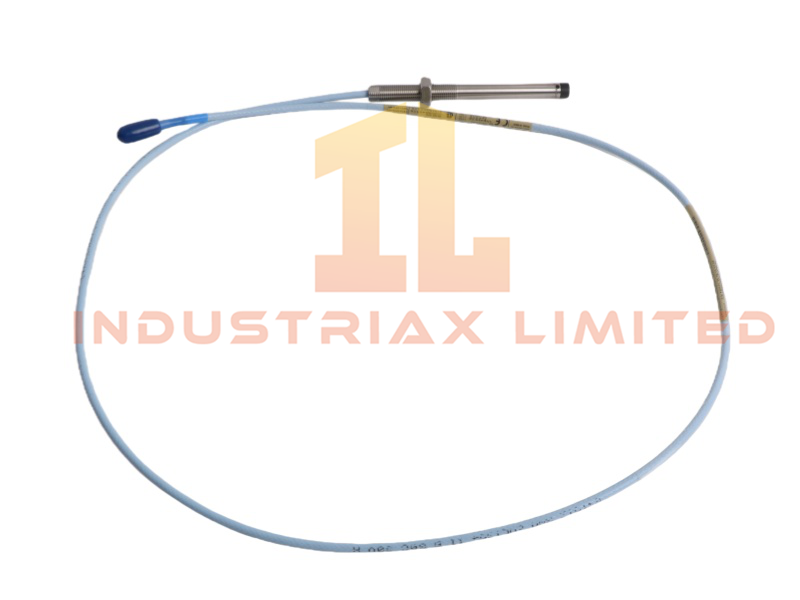

The 330101-20-40-10-02-05 Bently Nevada proximity probe is part of the 3300 XL 8 mm series, engineered for precision vibration and shaft position monitoring in fluid-film bearing machinery. With its extended 20-meter system length, this probe provides exceptional flexibility for installations requiring long-distance connections between monitoring points and analysis equipment.
Technical Specifications
| Parameter |
Value |
| Model Number |
330101-20-40-10-02-05 |
| Product Type |
3300 XL 8 mm Proximity Probe |
| Manufacturer |
Bently Nevada |
| Condition |
Brand New |
| Product Range |
3300 Proximity Transducer System |
| Thread Size |
3/8-24 UNF |
| Minimum Unthreaded Length |
2.0 in (51 mm) |
| Minimum Case Length |
4.0 in (102 mm) |
| Cable Length |
1.0 m standard with ClickLoc connector |
| Armor |
No (unarmored design) |
| Output Signal |
Voltage proportional to target distance |
| Weight |
0.06 kg |
| Dimensions |
1.8 × 1.6 × 123 cm |
| Compliance |
API 670 (4th Edition) |
| Certifications |
CSA, ATEX, IECEx |
| HS Code |
8537101190 |
| Origin |
USA |
| MOQ |
1 |
| Availability |
In Stock |
Functional Highlights
-
Provides accurate static position and dynamic vibration measurements.
-
Extended 20-meter system length for installations requiring long-distance probe-to-monitor connections.
-
Fully interchangeable with other 3300 XL 8 mm system components, eliminating recalibration needs.
-
Certified for hazardous environments, ensuring global compliance.
-
Designed for fluid-film bearing machinery and critical rotating assets.
Application Scenarios
-
Turbine shaft vibration and thrust monitoring.
-
Compressor and pump machinery requiring long-distance probe installations.
-
Industrial environments with hazardous atmosphere compliance needs.
-
Predictive maintenance programs in power generation, oil & gas, and heavy manufacturing.
FAQ
Q: What makes this probe different from standard 8 mm probes? A: The 330101-20-40-10-02-05 offers a 20-meter system length, providing flexibility for installations requiring extended cable runs.
Q: Does it meet API 670 standards? A: Yes, it complies with API 670 requirements for mechanical design, linear range, accuracy, and stability.
Q: Is it certified for hazardous environments? A: Yes, it carries CSA, ATEX, and IECEx approvals for safe use in explosive atmospheres.
