Description
Overview

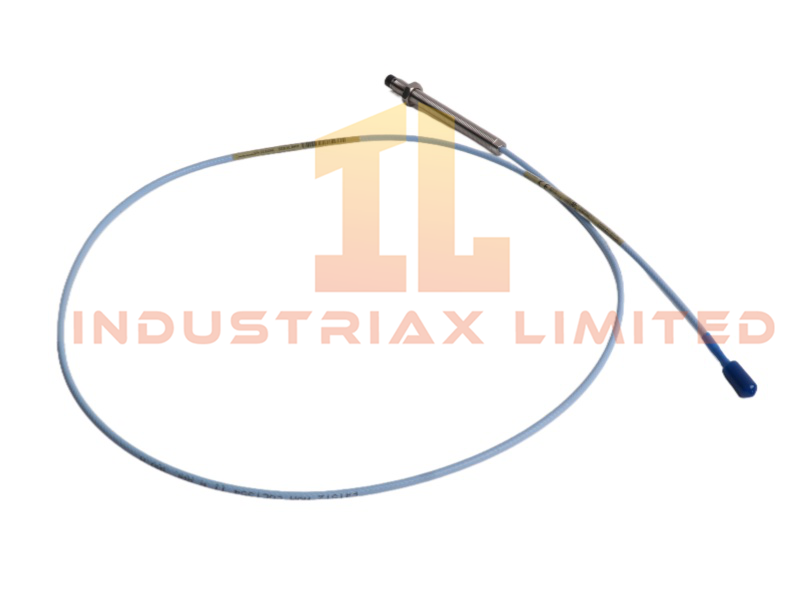

The Bently Nevada 330101‑00‑37‑05‑02‑05 is a long‑distance, armored 8 mm proximity probe designed for demanding vibration and position monitoring applications. With a 37‑meter integrated armored cable, this probe is engineered for installations requiring extended routing distances while maintaining signal integrity. It is fully compatible with both 3300 XL and legacy 3300 transducer systems, ensuring seamless integration into existing machinery protection architectures.
Key Characteristics
-
8 mm eddy‑current probe with extended 37 m armored cable
-
Designed for long‑distance signal transmission in harsh industrial environments
-
TipLoc molding technology for enhanced probe‑tip durability
-
CableLoc reinforcement providing 330 N pull strength
-
Compatible with XL and non‑XL 3300 5 mm / 8 mm components
-
Optional FluidLoc cable construction available for oil‑rich environments
-
Suitable for high‑vibration and high‑temperature machinery applications
Technical Specifications
| Parameter |
Specification |
| Model / Part Number |
330101‑00‑37‑05‑02‑05 |
| Probe Type |
3300 XL 8 mm Proximity Probe |
| Cable Length |
37 m (armored) |
| Cable Protection |
Armored; optional FluidLoc oil‑resistant design |
| Connector Type |
Miniature coaxial ClickLoc |
| Mounting Pattern |
Standard 4‑hole pattern (with mounting base) |
| Probe Technologies |
TipLoc molded tip, CableLoc reinforced cable |
| Measurement Principle |
Eddy‑current displacement |
| Interchangeability |
XL and non‑XL 3300 5 mm / 8 mm systems |
| Weight |
0.06 kg |
| Dimensions |
1.8 × 1.6 × 123 cm |
| System Compatibility |
3300 XL Proximity Transducer System |
| Condition |
Brand New |
| Origin |
USA |
| MOQ |
1 |
| HS Code |
8537101190 |
Functional Description
The 330101‑00‑37‑05‑02‑05 probe is engineered for installations where long cable runs are required, such as large machinery skids, remote bearing housings, or equipment with complex routing paths. Its armored cable construction provides mechanical protection against abrasion, vibration, and physical impact.
The probe incorporates two key Bently Nevada technologies:
-
TipLoc – A molded probe‑tip design that ensures a strong, permanent bond between the tip and probe body.
-
CableLoc – A high‑strength cable retention system capable of withstanding 330 N of pull force.
These features significantly improve durability and reliability in harsh industrial environments.
The probe is fully interchangeable with both XL and non‑XL 3300 components, eliminating the need for matched sets or bench calibration. Optional FluidLoc cable construction prevents oil migration through the cable, making it suitable for lubrication‑rich environments such as turbines and compressors.
Application Scenarios
-
Large rotating machinery requiring long cable routing
-
Steam and gas turbines
-
Centrifugal compressors
-
Gearboxes and industrial pumps
-
Machinery protection systems in oil & gas, power generation, and heavy manufacturing
FAQ
Q: Can this probe be used with older 3300 systems? A: Yes. It is fully compatible with both XL and non‑XL 3300 5 mm and 8 mm components.
Q: Is the silicone tape suitable for oil‑exposed environments? A: No. Silicone tape is included for general protection but is not recommended for turbine‑oil environments. FluidLoc cable is preferred in such cases.
Q: What makes this probe suitable for long‑distance installations? A: Its 37‑meter armored cable maintains signal integrity and provides mechanical protection over extended routing paths.
