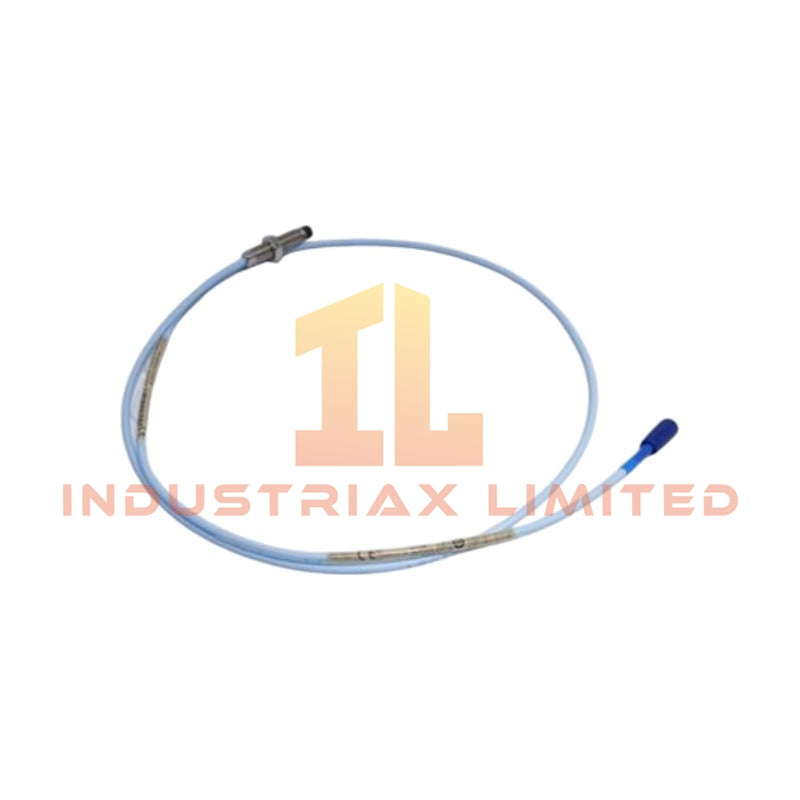

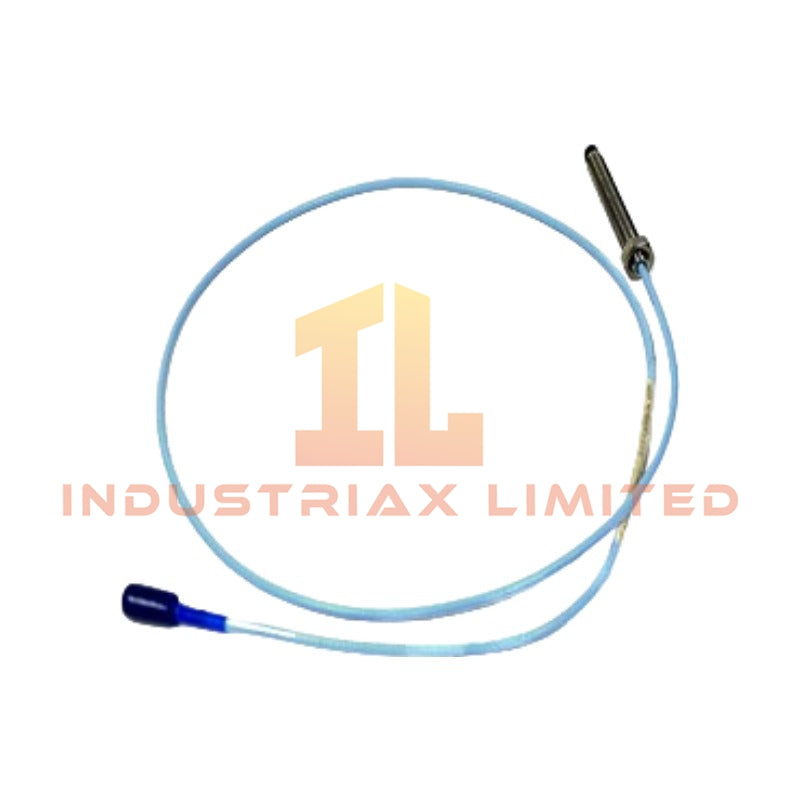

Bently Nevada 330101-00-36-15-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-36-15-02-05, also cataloged as the 330101 3300 XL 8 mm Proximity Probe, operates as a dedicated eddy-current displacement sensor for continuous shaft vibration and position measurement within Bently Nevada TSI machinery protection systems.

Hardware Specifications

Parameter	Specification
Model Brand	Bently Nevada
Origin	USA
Weight	0.05 kg
Dimensions	1.5 x 1.3 x 116 cm
Operating Temp	-35 degC to +177 degC
Power Consumption	Passive device, no external power required
Thread Type	3/8-24 UNF
Unthreaded Length	0.0 in
Overall Case Length	3.6 in
Total Cable Length	1.5 m (4.9 ft)
Connector Type	Miniature coaxial ClickLoc connector
Agency Approvals	CSA, ATEX, IECEx

Eddy-Current Probe Scaling and Gap Voltage Validation

Probe scale factor is factory-calibrated at 7.87 mV/μm (200 mV/mil) over the linear range. Gap voltage validation targets -10 VDC when installed against a standard steel target. System integration requires verification of probe standoff distance to ensure operation within the linear region. Cross-talk suppression between adjacent probes is achieved by maintaining minimum edge spacing per Bently Nevada installation guidelines.

Frequently Asked Questions

Q: Can the probe be replaced without recalibrating the system?

A: No. Replacement requires re-measuring the gap voltage and verifying scale factor alignment with the associated monitor module.

Q: Does this model support hot-swapping?

A: No. The probe is a passive sensor; however, system wiring must be de-energized before disconnecting to prevent transient signal errors.

Q: What is the maximum cable routing distance from probe tip to monitor input?

A: Total system extension should follow Bently Nevada limits for coaxial cable runs to avoid signal attenuation beyond specified tolerance.

Field Installation Guidelines

Mount the probe using proper thread engagement of at least five full turns into the machined housing. Maintain concentric alignment to the monitored shaft surface. Route the coaxial cable away from high-voltage conductors and secure shielding continuity to the DIN-rail or panel ground point. Verify connector mating by audible ClickLoc engagement before energizing the system.
