Description
Overview

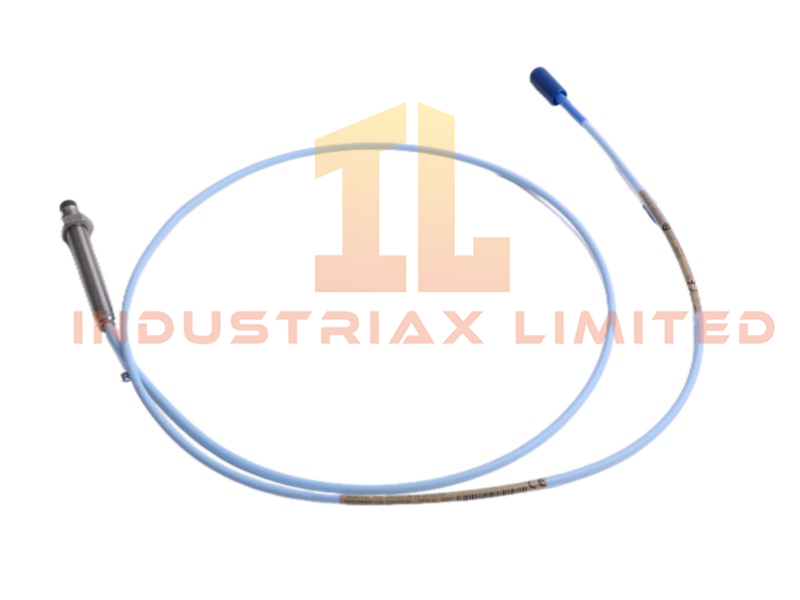

The 330101-00-26-10-02-05 Bently Nevada 3300 XL 8 mm Proximity Probe is a precision sensor designed for vibration and shaft position monitoring in rotating machinery. Engineered for durability and accuracy, it integrates seamlessly into the 3300 XL Proximity Transducer System, ensuring reliable performance in demanding industrial environments.
Technical Specifications
-
Model Number: 330101-00-26-10-02-05
-
Product Type: 3300 XL 8 mm Proximity Probe
-
Thread Size: 3/8-24 UNF
-
Cable Length: 1.0 m (3.3 ft) standard cable
-
Connector Type: Miniature coaxial ClickLoc connector
-
Options: Armored and unarmored cable variants available
-
Operating Temperature Range: -51°C to +177°C
-
Weight: 0.06 kg
-
Dimensions: 1.8 × 1.6 × 123 cm
-
System Compatibility: 3300 XL Proximity Transducer System
-
Backward Compatibility: Compatible with non-XL 3300 series 5 mm and 8 mm components
-
Compliance: API 670 standards for mechanical configuration, accuracy, and linear range
-
Origin: USA
-
HS Code: 8537101190
Key Features
-
High accuracy for vibration and displacement monitoring
-
Complete interchangeability with 3300 XL probes, extension cables, and Proximitor sensors
-
No need for bench calibration or component matching
-
Wide operating temperature tolerance for harsh environments
-
Compact design suitable for installations with limited space
Application Scenarios
The 330101-00-26-10-02-05 probe is ideal for turbines, compressors, pumps, and other fluid-film bearing machines. It is particularly suited for hazardous industrial environments where certified safety compliance and precise monitoring are required.
FAQ
Q: Does this probe require calibration when installed? A: No, it is fully interchangeable and does not require bench calibration.
Q: Can it be used with older 3300 series components? A: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm components.
Q: What is the operating temperature range? A: It can operate reliably between -51°C and +177°C.
