Description
Overview

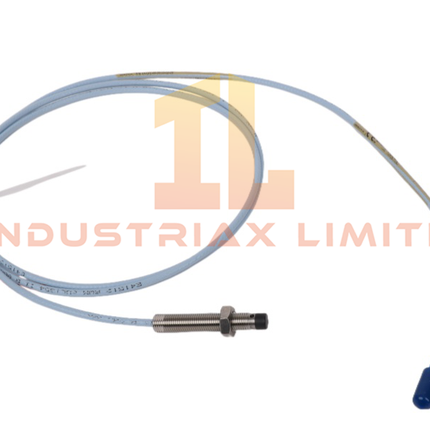

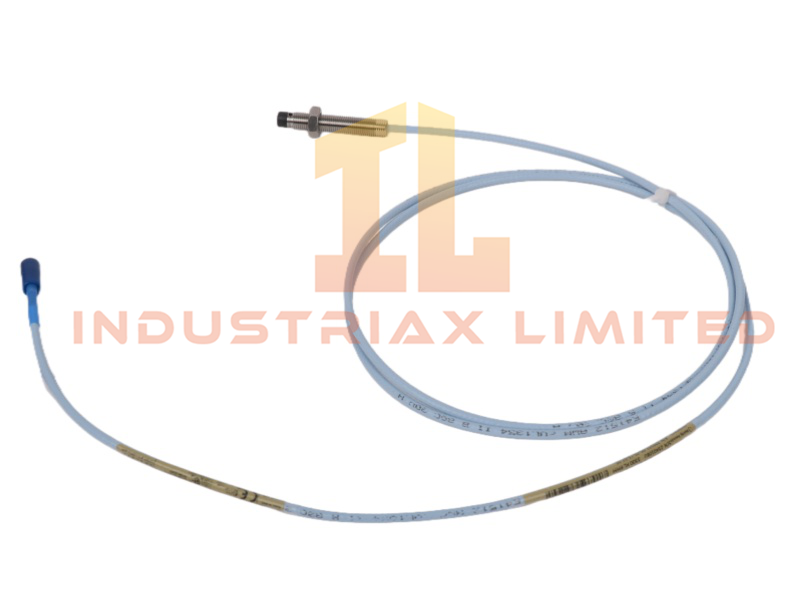

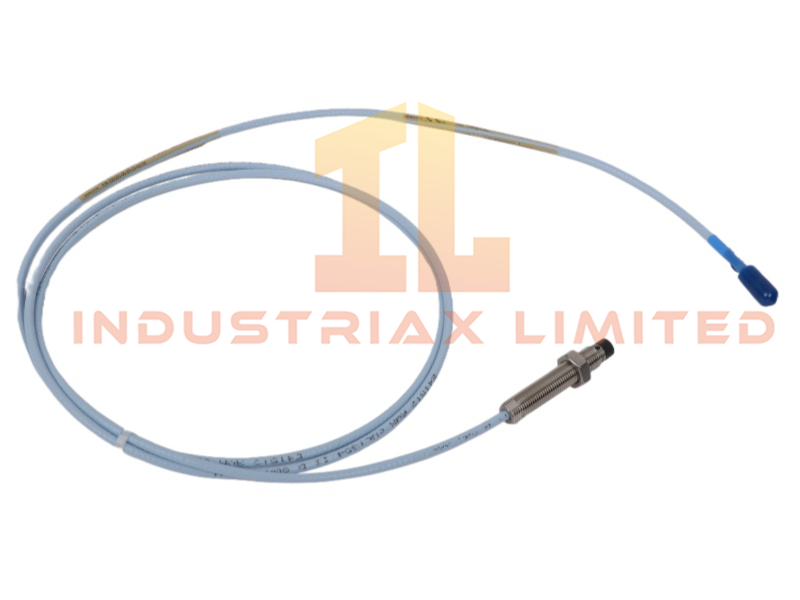

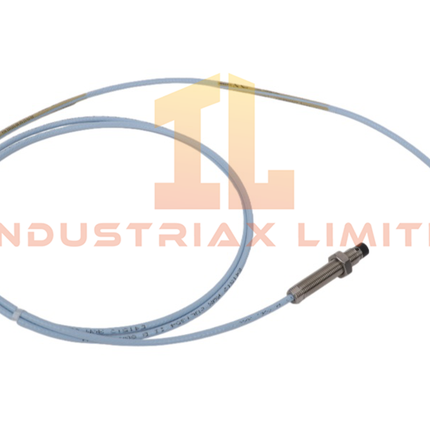

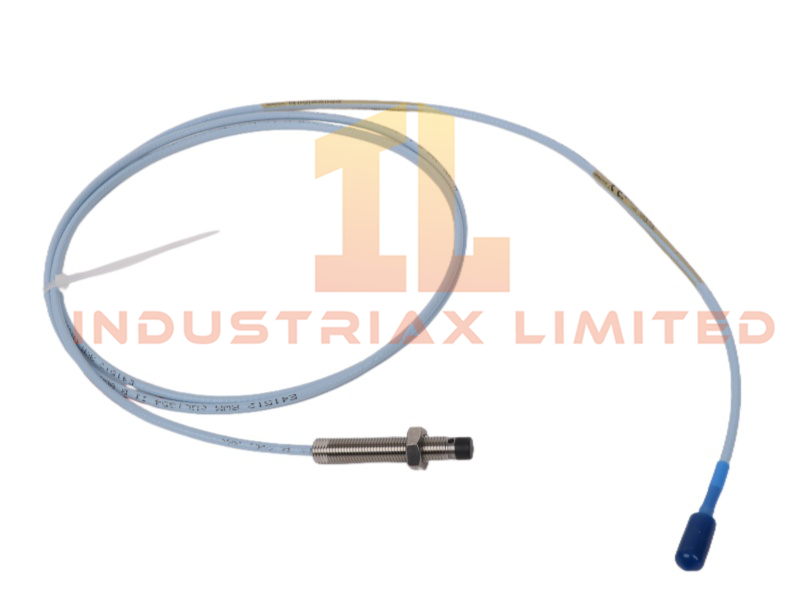

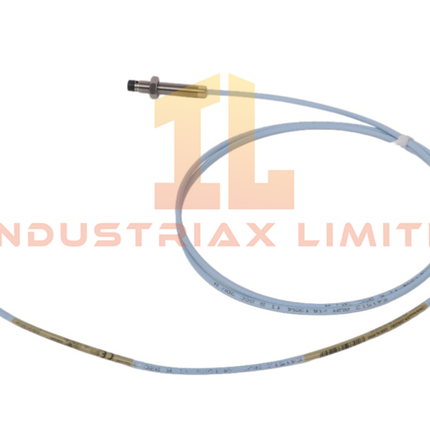

The Bently Nevada 330101‑00‑20‑15‑12‑05 proximity probe is part of the 3300 XL 8 mm transducer family, engineered for precise non‑contact measurement of shaft vibration and position in rotating machinery. When paired with its extension cable and Proximitor sensor, it forms a complete measurement chain designed for high‑accuracy monitoring in demanding industrial environments.
Design and Operating Principles
This probe detects the distance between its tip and a conductive target surface, producing a voltage output proportional to both static shaft position and dynamic vibration amplitude. The 330101‑00‑20‑15‑12‑05 is suitable for fluid‑film bearing machines and supports Keyphasor reference and speed measurement applications.
The probe assembly complies with API 670 requirements for linearity, temperature stability, and system configuration. Its mechanical and electrical characteristics ensure consistent performance across a wide operating range.
Technical Specifications
| Parameter |
Specification |
| Model |
330101‑00‑20‑15‑12‑05 |
| Probe Type |
3300 XL 8 mm Proximity Probe |
| System Compatibility |
3300 XL Proximity Transducer System |
| Measurement Type |
Static position and dynamic vibration |
| Compliance |
API 670 |
| Cable Length |
2.0 m (probe cable segment) |
| Weight |
0.08 kg |
| Dimensions |
112 × 1.5 × 1.2 cm |
| HS Code |
8537101190 |
| Origin |
USA |
| Minimum Order |
1 unit |
| Product Status |
Active |
| System |
TSI |
Performance Characteristics
The probe is engineered for long‑term stability and high immunity to electrical noise. Its design supports extended linear measurement ranges and maintains accuracy across temperature variations. The 330101‑00‑20‑15‑12‑05 is backward‑compatible with earlier non‑XL 3300 series 5 mm and 8 mm components, enabling system upgrades without requiring recalibration or hardware redesign.
Application Scenarios
-
Shaft vibration and displacement monitoring
-
Axial position measurement on turbomachinery
-
Keyphasor reference signal acquisition
-
Speed measurement on rotating equipment
-
API 670‑compliant protection and condition monitoring systems
FAQ
Q: Is this probe compatible with older 3300 series components? A: Yes. It can be used with non‑XL 5 mm and 8 mm probes and cables without requiring matched calibration.
Q: What type of machines typically use this probe? A: It is commonly installed on turbines, compressors, pumps, and other fluid‑film bearing machinery.
Q: Does the probe require a specific Proximitor sensor? A: For optimal accuracy, it should be paired with a 3300 XL Proximitor sensor.
