Description
Overview

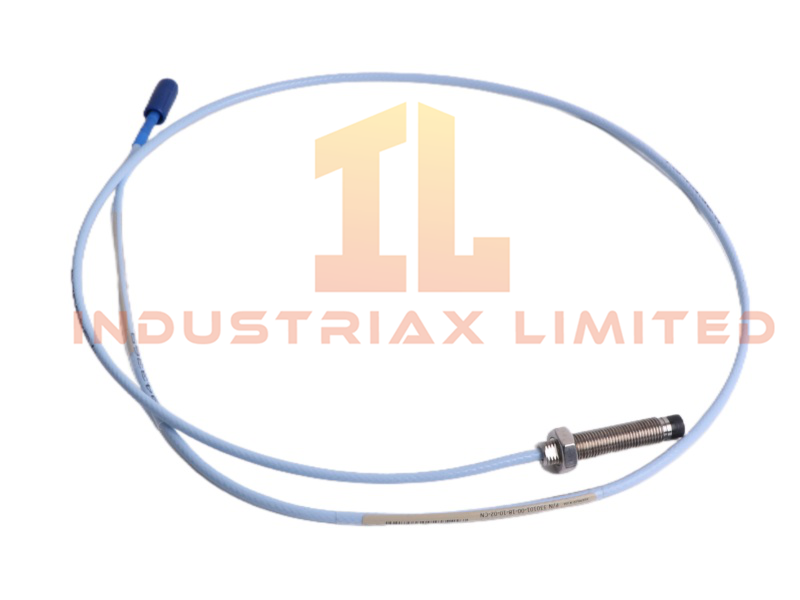

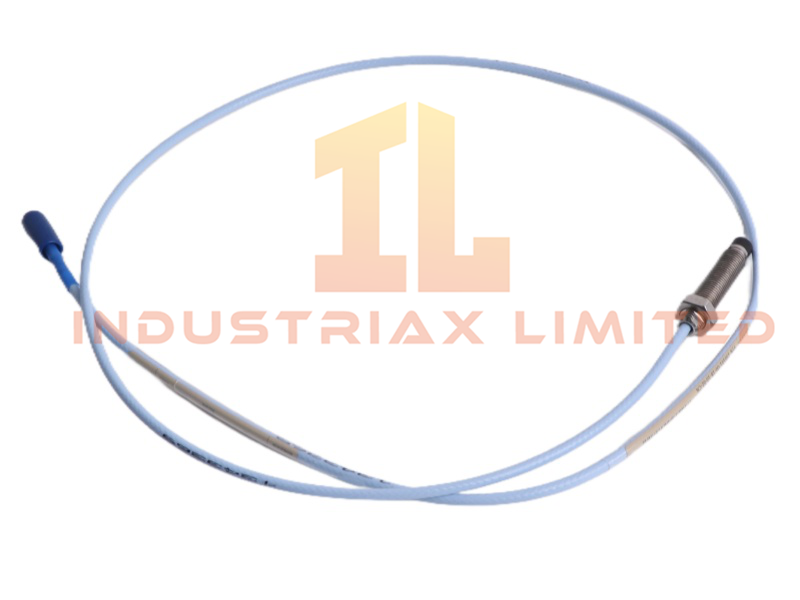

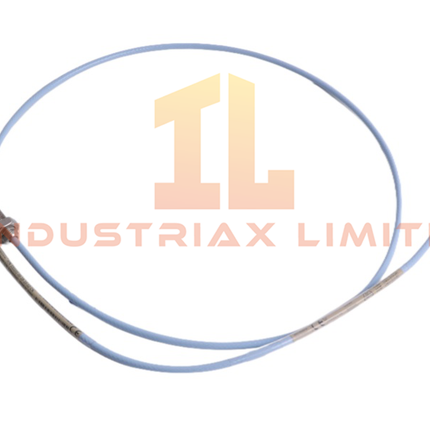

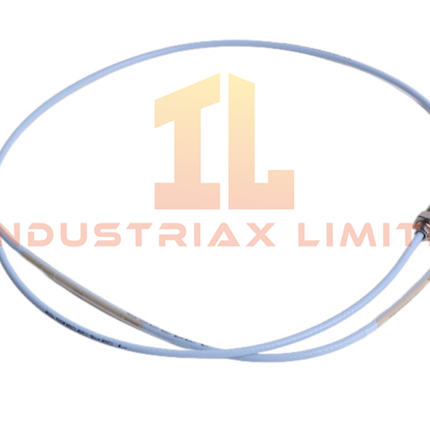

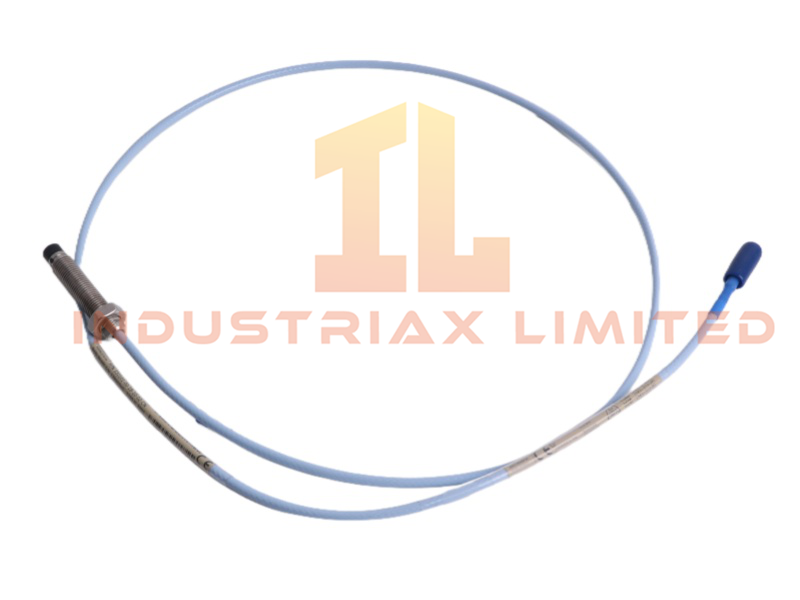

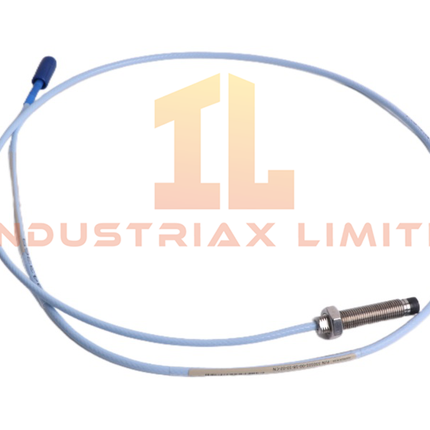

The Bently Nevada 330101‑00‑18‑05‑02‑05 proximity probe is part of the 3300 XL 8 mm transducer family, designed for accurate measurement of shaft vibration and static position in rotating machinery. As an eddy‑current sensor, it delivers stable, high‑resolution displacement data essential for machinery protection and condition monitoring programs.
Technical Specifications
| Parameter |
Specification |
| Model |
330101‑00‑18‑05‑02‑05 |
| Product Type |
3300 XL 8 mm Proximity Probe |
| Brand |
Bently Nevada |
| Weight |
0.06 kg |
| Dimensions |
1.8 × 1.6 × 123 cm |
| Probe Tip Diameter |
8 mm |
| Operating Principle |
Eddy‑current displacement measurement |
| Interchangeability |
Probe, extension cable, and proximitor require no matching |
| Compliance |
API 670 |
| System Compatibility |
3300 XL Proximity Transducer System, TSI |
| Condition |
New |
| Origin |
USA |
| MOQ |
1 |
| Availability |
In Stock |
| HS Code |
8537101190 |
Functional Description
The 330101‑00‑18‑05‑02‑05 probe generates an electromagnetic field that induces eddy currents in the target surface. Variations in the gap between the probe and the shaft produce a proportional voltage output, enabling precise monitoring of both dynamic vibration and static shaft position.
A key advantage of this model is its complete interchangeability within the 3300 XL system. Replacement of the probe, extension cable, or proximitor sensor does not require recalibration, simplifying maintenance and reducing spare‑parts complexity.
Manufactured in the United States, the probe meets API 670 requirements, ensuring compliance with global machinery protection standards. Its robust design supports long‑term reliability in demanding environments such as turbines, compressors, and high‑speed rotating equipment.
Application Scenarios
-
Turbine shaft vibration and axial position monitoring
-
Compressor and pump displacement measurement
-
Gearbox condition diagnostics
-
API 670‑compliant machinery protection systems
-
Predictive maintenance programs for critical rotating assets
FAQ
Q: Does this probe require calibration when replaced? A: No. The probe, extension cable, and proximitor are fully interchangeable without matching or recalibration.
Q: What measurement principle does it use? A: It operates using eddy‑current displacement sensing for both static and dynamic measurements.
Q: Is it suitable for API 670 applications? A: Yes. The design complies with API 670 machinery protection standards.
Q: What types of machines typically use this probe? A: Turbines, compressors, pumps, and other high‑value rotating machinery.
