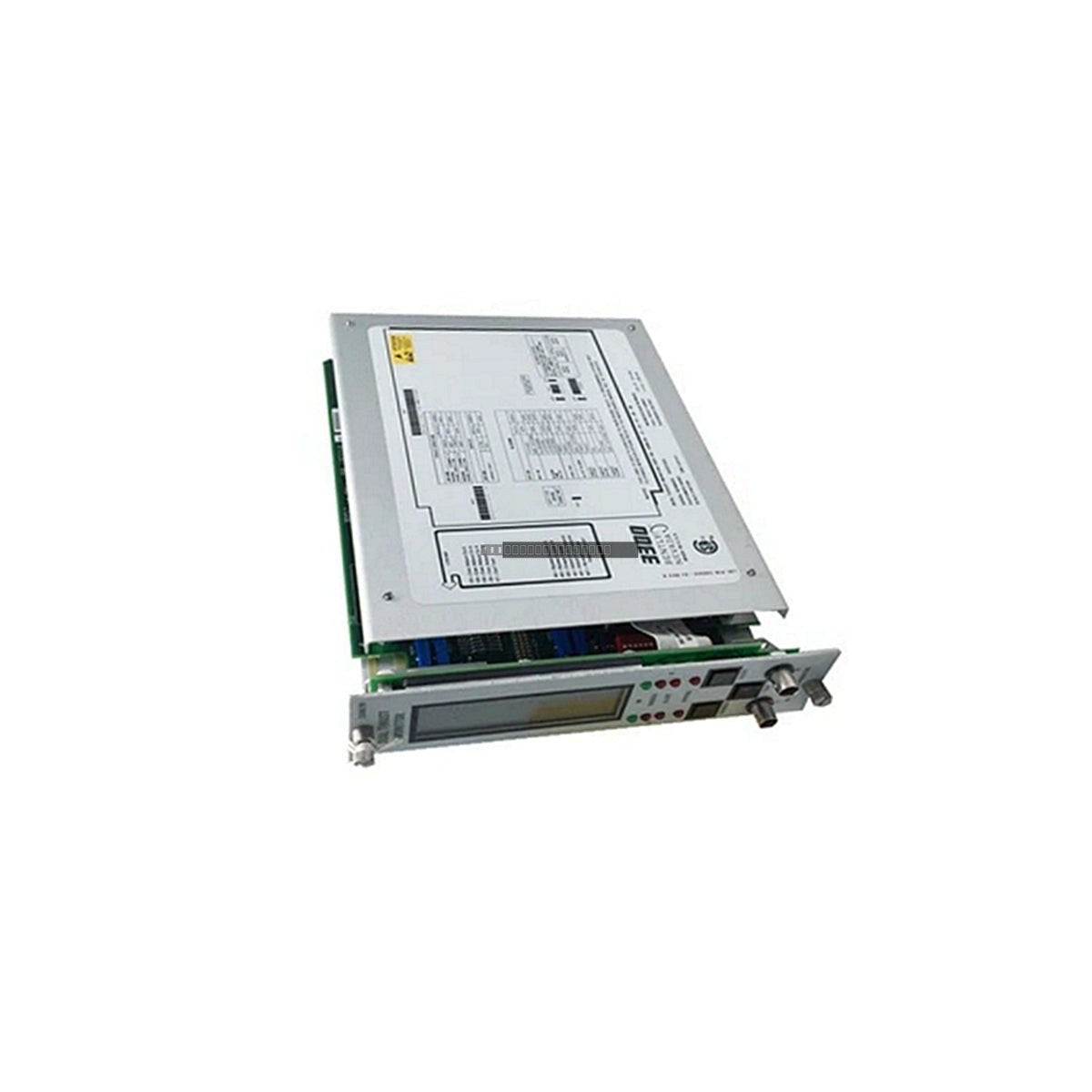

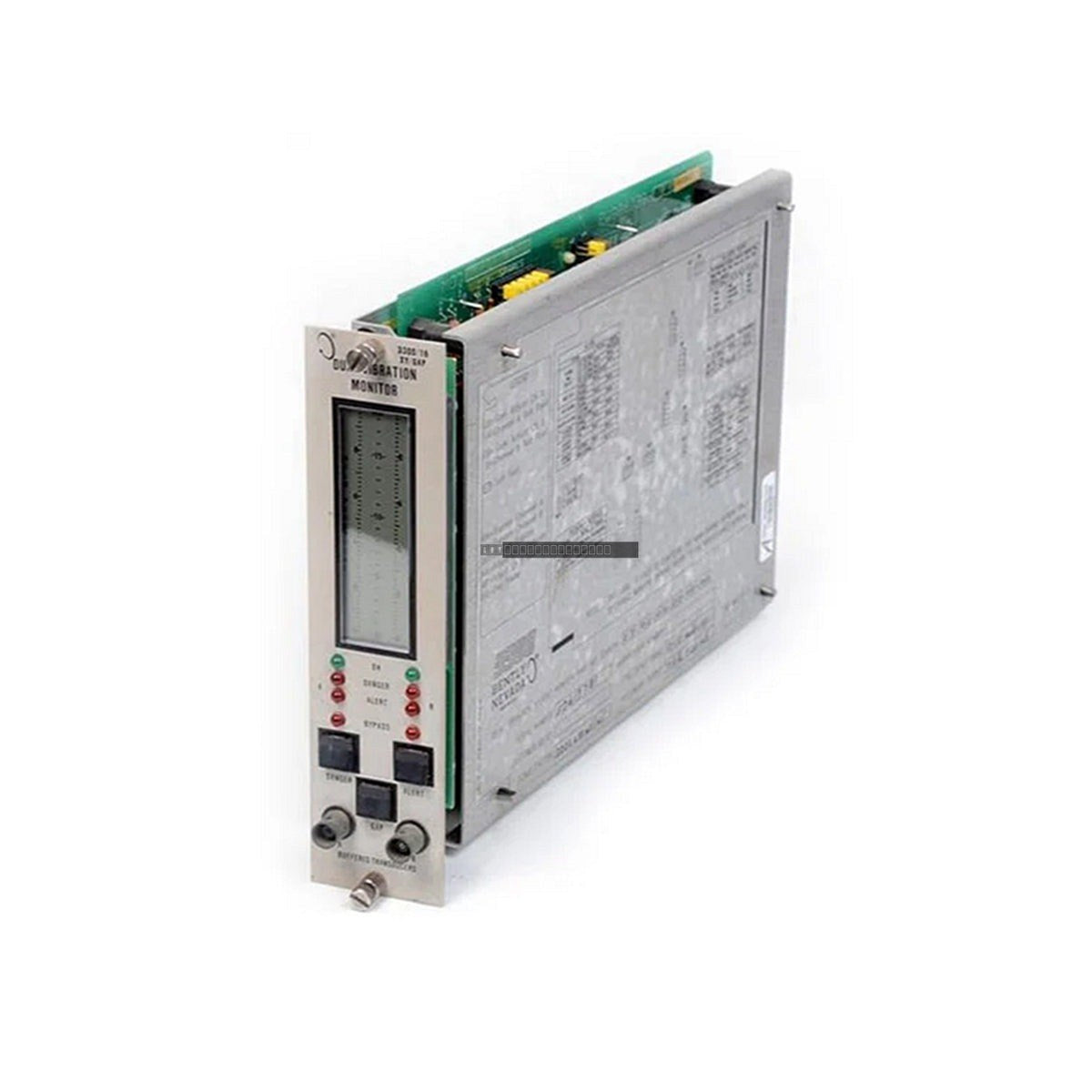

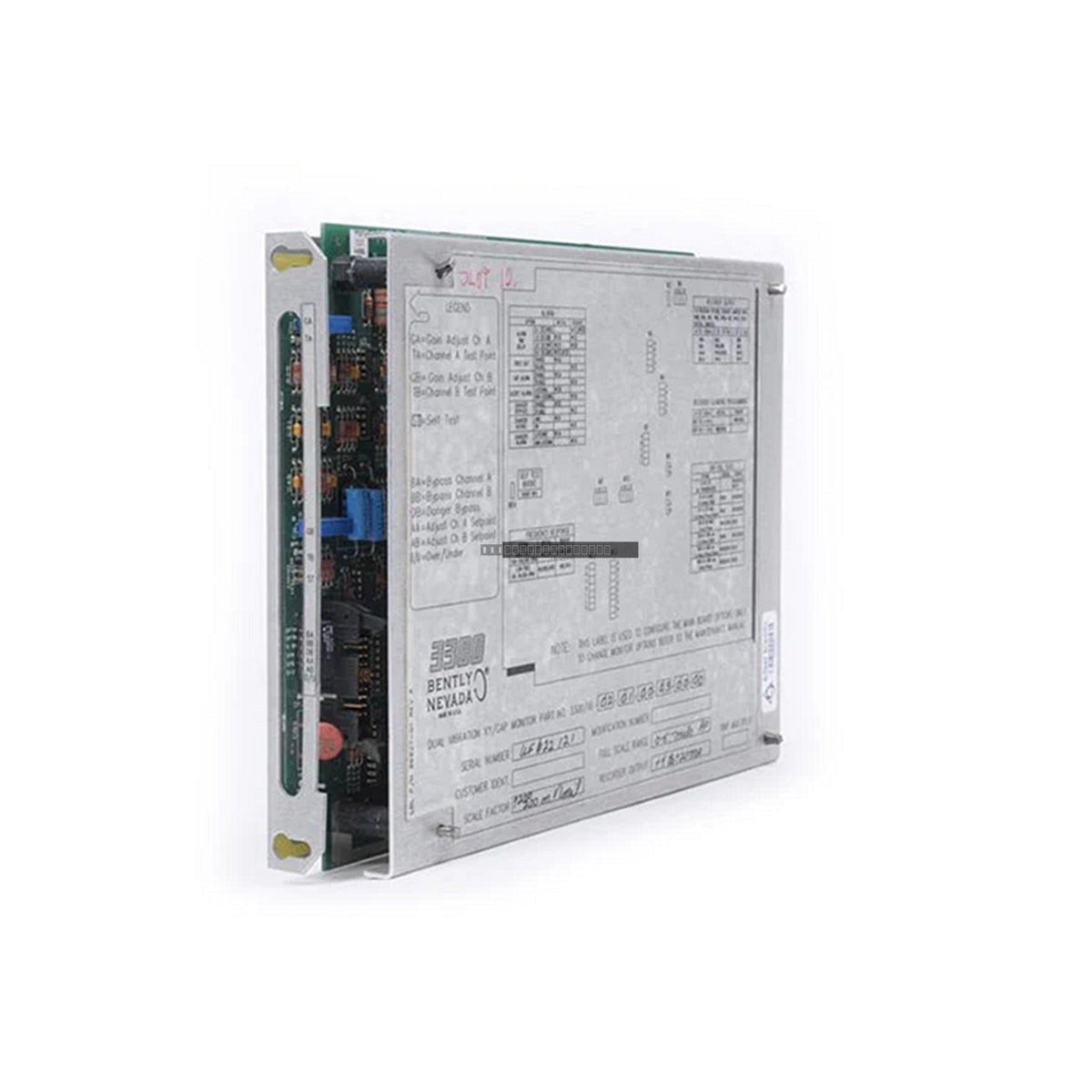

The Bently Nevada 3300/55 Dual Velocity Monitor is a critical component of the 3300 Series machinery protection system. This module is engineered to monitor casing vibration velocity by interfacing with Velomitor piezo-velocity sensors. It provides two independent channels of continuous vibration monitoring, comparing real-time input values against user-defined Alert and Danger setpoints to ensure the integrity of rotating equipment such as turbines, compressors, motors, and pumps.
Features
- Dual-channel velocity monitoring for redundant or multi-point machinery protection.
- Direct interface compatibility with Velomitor piezo-velocity sensors.
- Integrated alarm logic with dedicated Alert and Danger relay outputs.
- Proportional 4–20 mA output for integration with external PLC or DCS control systems.
- Designed for seamless integration into existing 3300 Series rack environments.
Applications
This monitor is widely utilized in heavy industrial environments for critical asset protection, including:
- Steam and gas turbine vibration monitoring.
- Centrifugal and reciprocating compressor casing vibration analysis.
- Large motor and pump bearing housing velocity measurement.
- Balance-of-plant rotating equipment requiring continuous vibration surveillance.
Technical Specifications
| Model |
3300/55-01-04-02-02-00-00-04-00 |
| Brand |
Bently Nevada |
| Input Type |
Velomitor piezo-velocity sensors |
| Outputs |
Dynamic vibration signals, 4–20 mA proportional |
| Operating Temperature |
0 degC to +60 degC |
| Power Consumption |
1.5 W (typical) |
Installation Guidelines
- Ensure the 3300 rack is powered down before inserting or removing the monitor module to prevent electrical damage.
- Verify that the module is fully seated in the rack slot and that the front panel screws are tightened to ensure proper grounding and mechanical stability.
- Use shielded twisted-pair cabling for sensor inputs to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Ensure that input wiring is routed away from high-voltage AC power lines to maintain signal integrity.
- Follow standard ESD handling procedures when touching the module circuitry.
FAQ
What is the primary function of the 3300/55 monitor?
The 3300/55 is designed to measure vibration velocity on machine casings using piezo-velocity sensors and provide alarm relay outputs for machinery protection.
Is this module compatible with other 3300 series components?
Yes, this monitor is designed specifically for the Bently Nevada 3300 Series rack system and is compatible with standard 3300 series power supplies and I/O modules.
Does this unit require external barriers?
This specific model (suffix 00 for barriers) is configured for standard input and does not include intrinsic safety barriers.
