Description

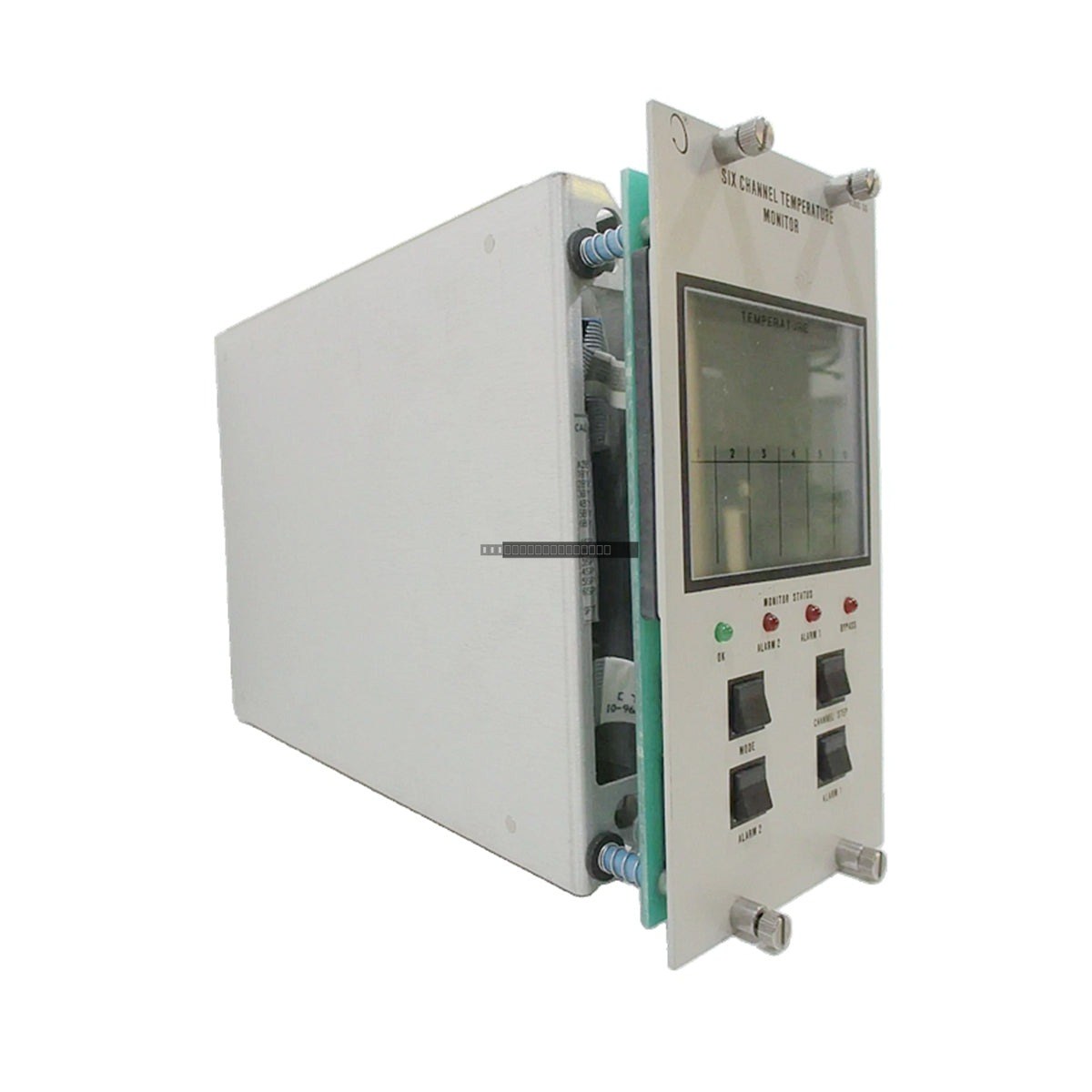

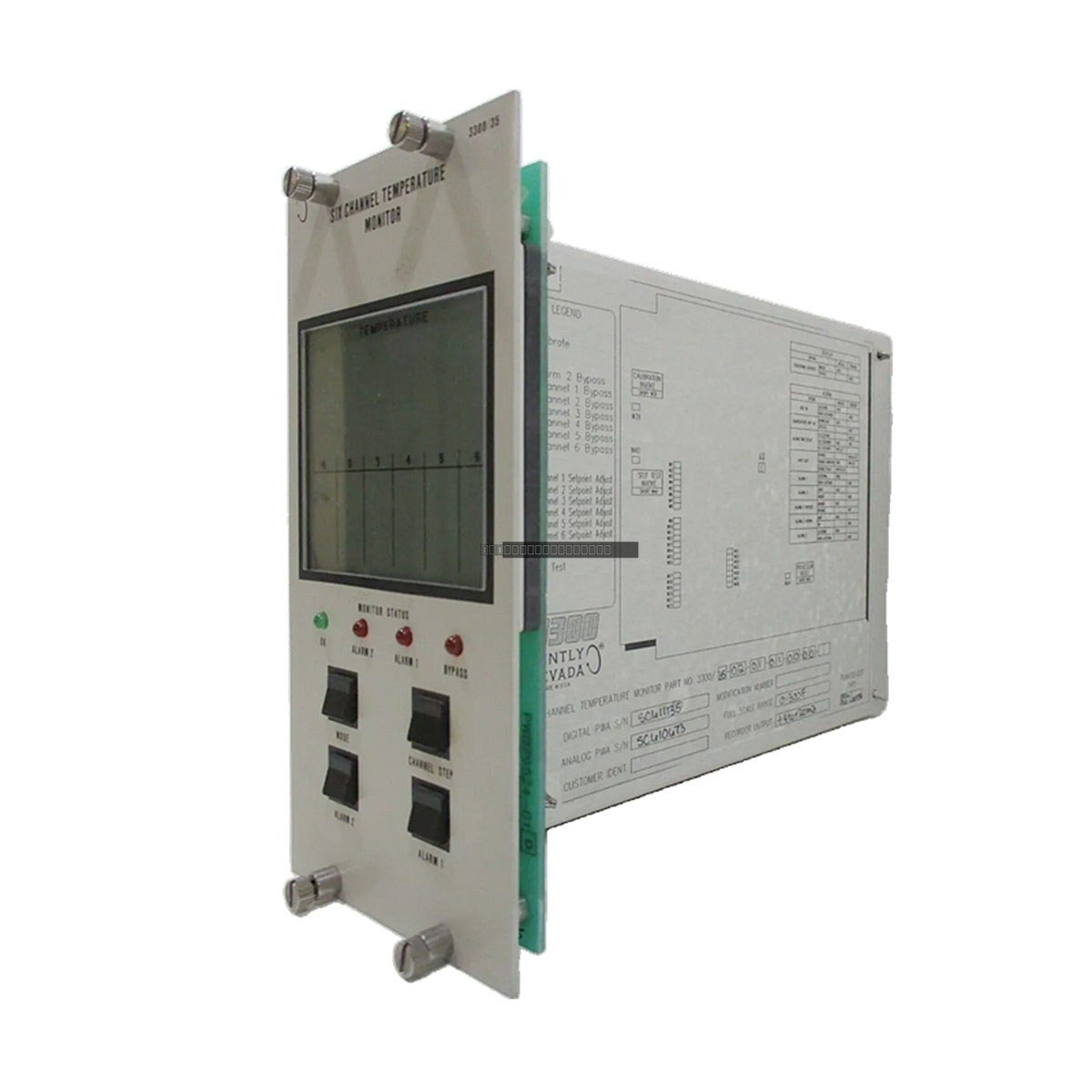

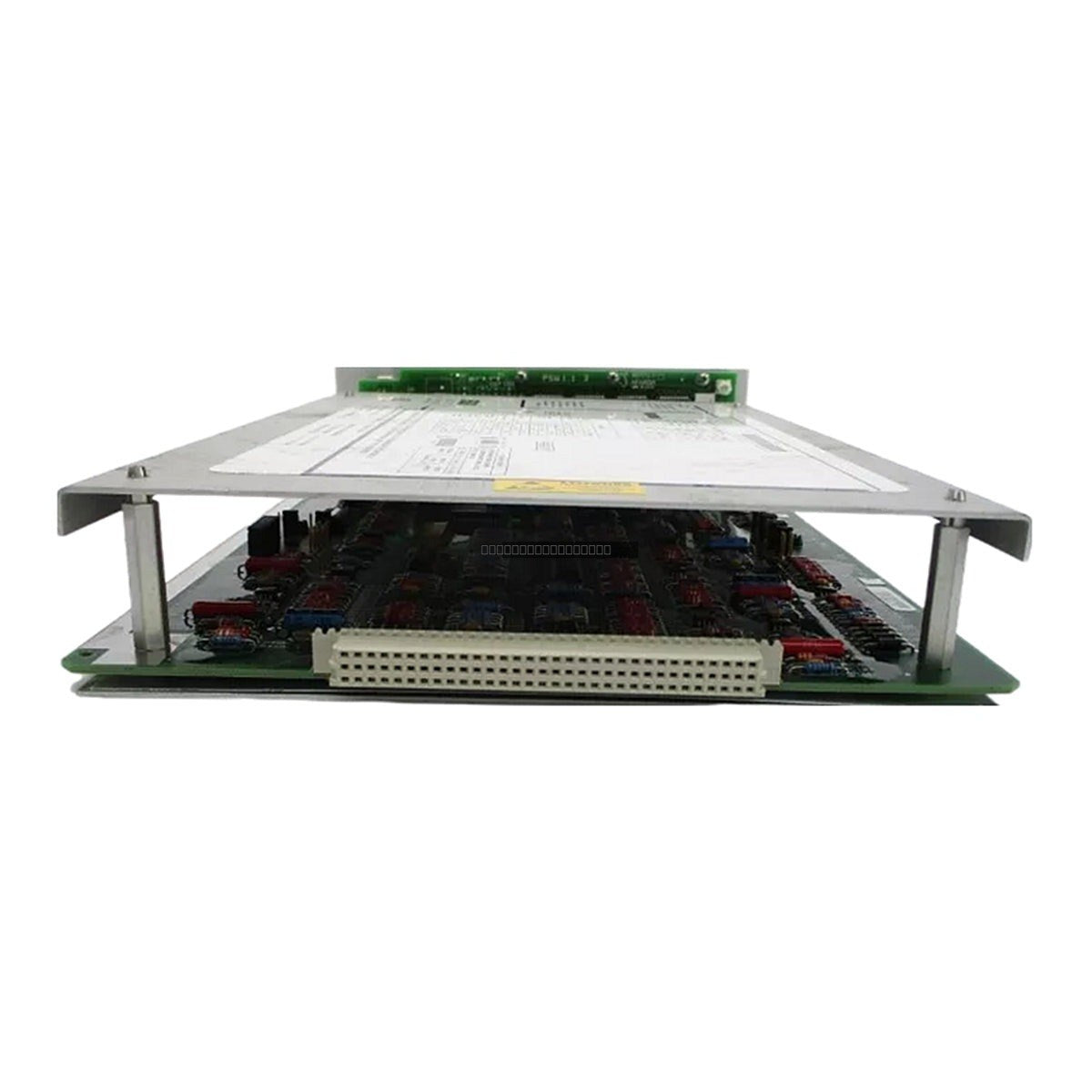

The Bently Nevada 3300/35-13-01-01-00-00 is a dedicated 6-channel temperature monitor module designed for the 3300 series machinery protection system. This unit provides continuous monitoring and alarming capabilities for temperature-critical assets in industrial environments, ensuring reliable data acquisition and system safety.
Features
- Six independent channels for comprehensive temperature monitoring.
- Engineered for integration within the Bently Nevada 3300 series rack architecture.
- Supports standard temperature transducer inputs for precise thermal tracking.
- Robust construction designed for continuous operation in demanding industrial conditions.
Technical Specifications
| Model Number |
3300/35-13-01-01-00-00 |
| Function |
6 Channel Temperature Monitor |
| Operating Temperature |
0 degC to +65 degC (+32 degF to +150 degF) |
| Storage Temperature |
-40 degC to +85 degC (-40 degF to +185 degF) |
| Relative Humidity |
Up to 95%, noncondensing |
| Weight |
2.1 kg |
Installation Guidelines
- Ensure the 3300 series rack is powered down before installing or removing the module to prevent electrical damage.
- Verify that the module is fully seated in the designated rack slot to ensure proper backplane communication.
- Use appropriate shielded cabling for all sensor inputs to minimize electromagnetic interference (EMI).
- Maintain adequate airflow around the rack to ensure the module operates within its specified temperature range.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
FAQ
What is the primary function of the 3300/35 module?
This module is a 6-channel temperature monitor designed to interface with temperature transducers to provide real-time thermal data and protection for rotating machinery.
Can this unit be used as a replacement for other 3300/35 models?
The 3300/35-13-01-01-00-00 is a specific configuration. Always verify that the full order code matches your existing system requirements before installation.
