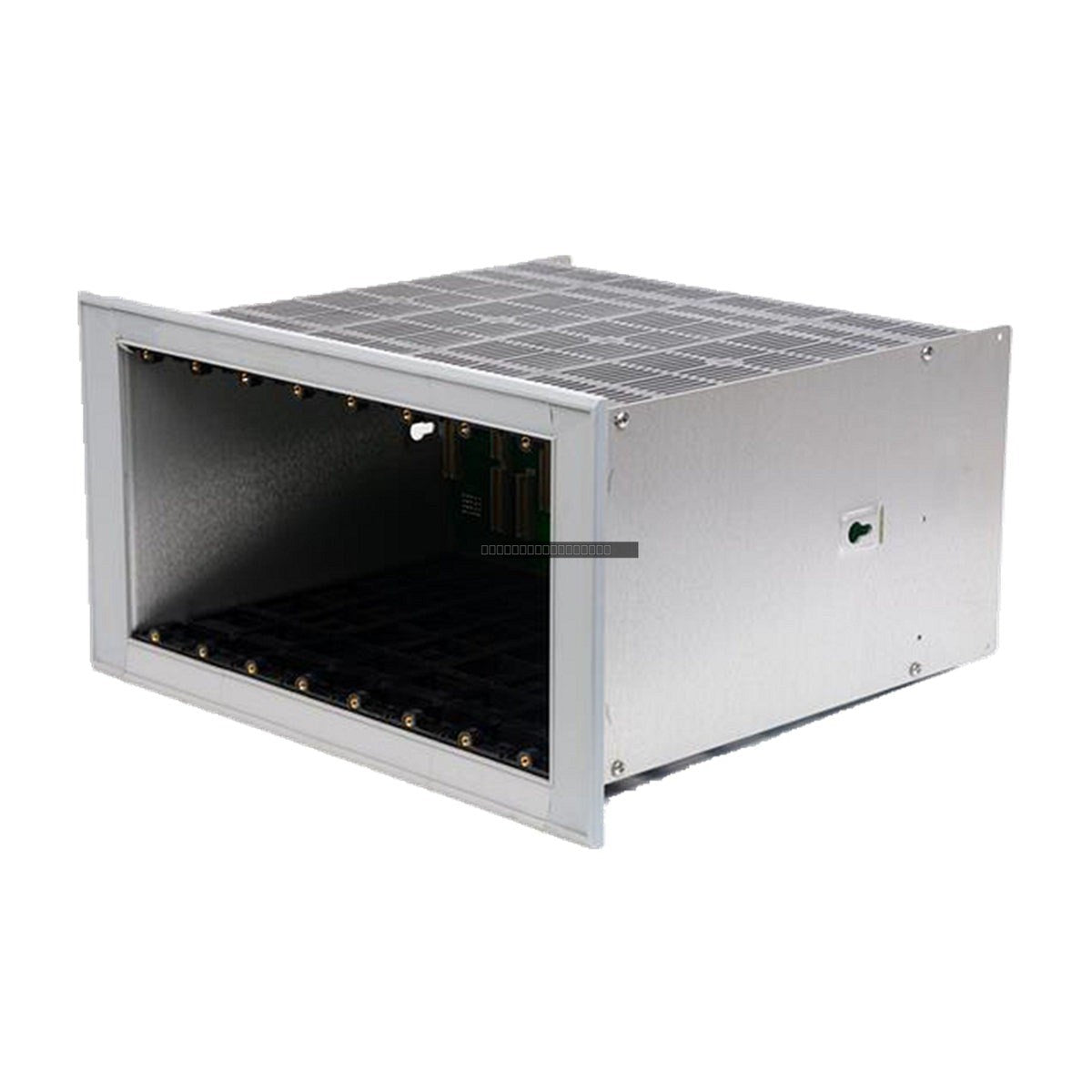

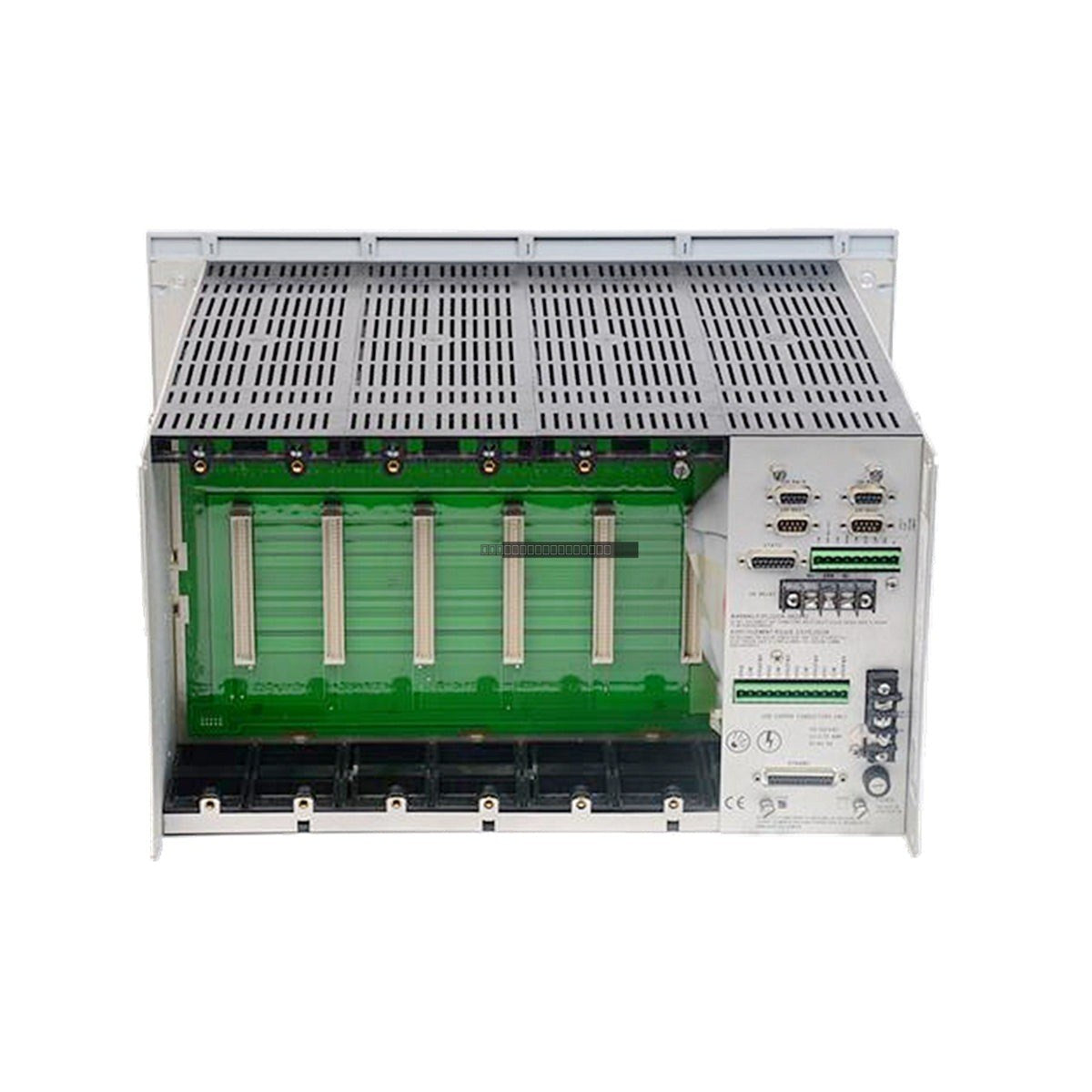

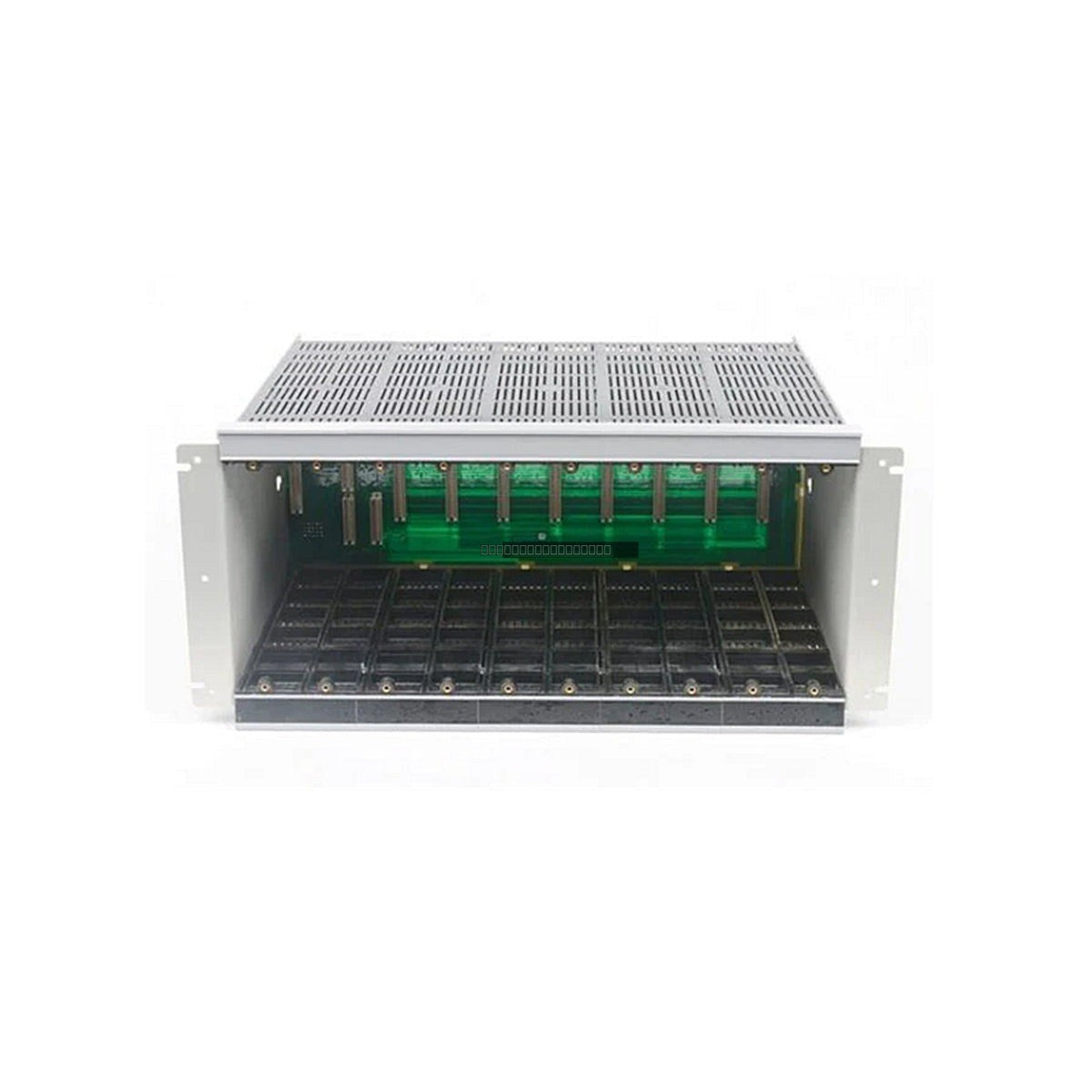

The Bently Nevada 3300/05-27-00-01 is a 12-slot rack chassis designed to serve as the mechanical and electrical foundation for the 3300 Monitoring System. This chassis provides the necessary backplane connectivity and structural support to integrate various monitoring modules, including vibration, thrust, eccentricity, expansion, tachometer, and temperature monitors, ensuring reliable machinery protection in industrial environments.
Features
- 12-slot capacity for high-density monitoring configurations.
- Robust mechanical housing ensuring alignment and stability for all installed modules.
- Integrated backplane for reliable signal and power distribution across the rack.
- Designed for seamless integration with 3300 series power supplies and monitoring modules.
- Standardized mounting configuration for simplified installation in industrial cabinets.
Technical Specifications
| Model |
3300/05-27-00-01 |
| Series |
3300 |
| Product Type |
12-Slot Rack Chassis |
| Operating Temperature |
0 to 60 degC |
| Power Compatibility |
Supports 3300/12 Power Supply Modules |
| Capacity |
12 Module Slots |
Installation Guidelines
- Ensure the chassis is mounted in a clean, dry, and vibration-dampened environment.
- Verify that the rack is properly grounded to the cabinet ground bus to prevent EMI/RFI interference.
- Power down the system before inserting or removing any monitoring modules from the chassis slots.
- Ensure adequate airflow around the chassis to maintain operating temperatures within the 0 to 60 degC range.
- Use appropriate ESD protection when handling modules to prevent damage to sensitive backplane components.
- Check that all module connectors are fully seated and secured before applying power.
FAQ
What is the primary function of the 3300/05 chassis?
The chassis provides the mechanical housing, power distribution, and backplane communication required for the 3300 series monitoring system to operate as a cohesive unit.
Can this chassis accommodate any 3300 series module?
Yes, the 3300/05-27-00-01 is designed to house standard 3300 series monitoring modules, including vibration, thrust, and system monitor modules, provided the total power and slot requirements are met.
Is this chassis compatible with 3300/12 power supplies?
Yes, this chassis is specifically designed to support 3300/12 power supply modules for system operation.
