Description

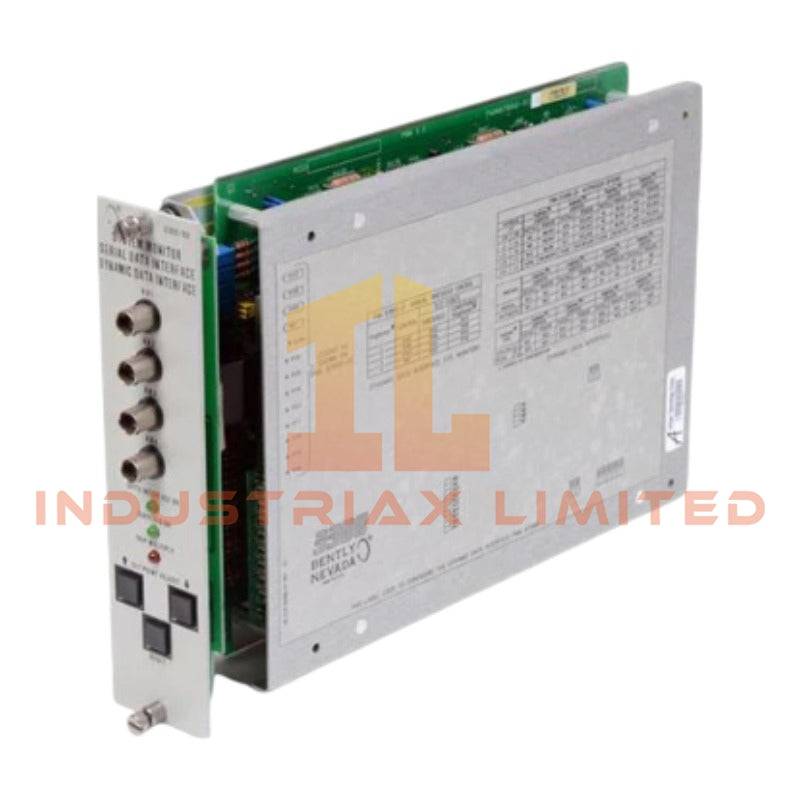

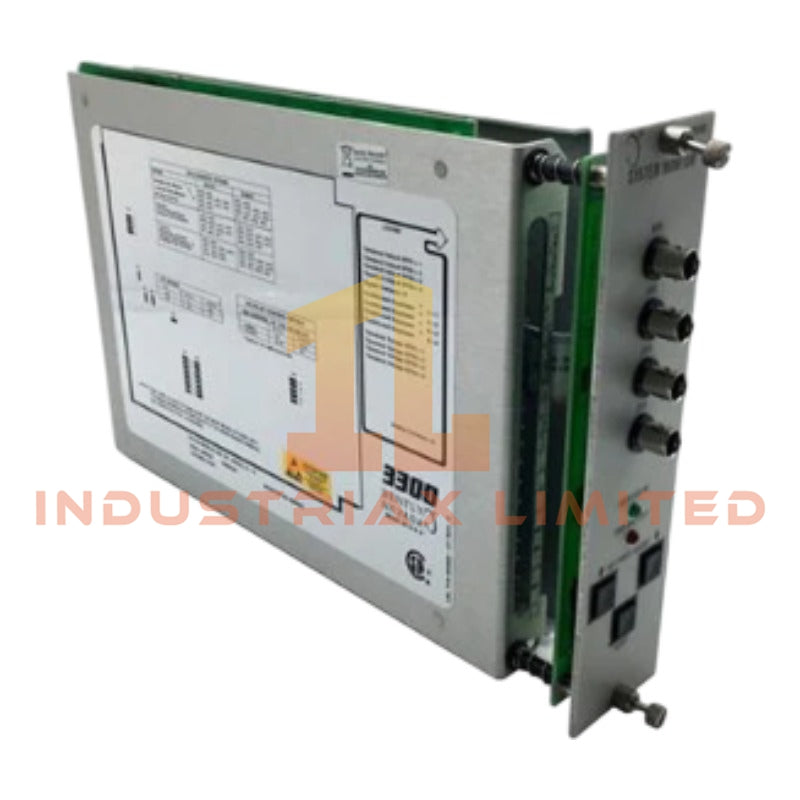

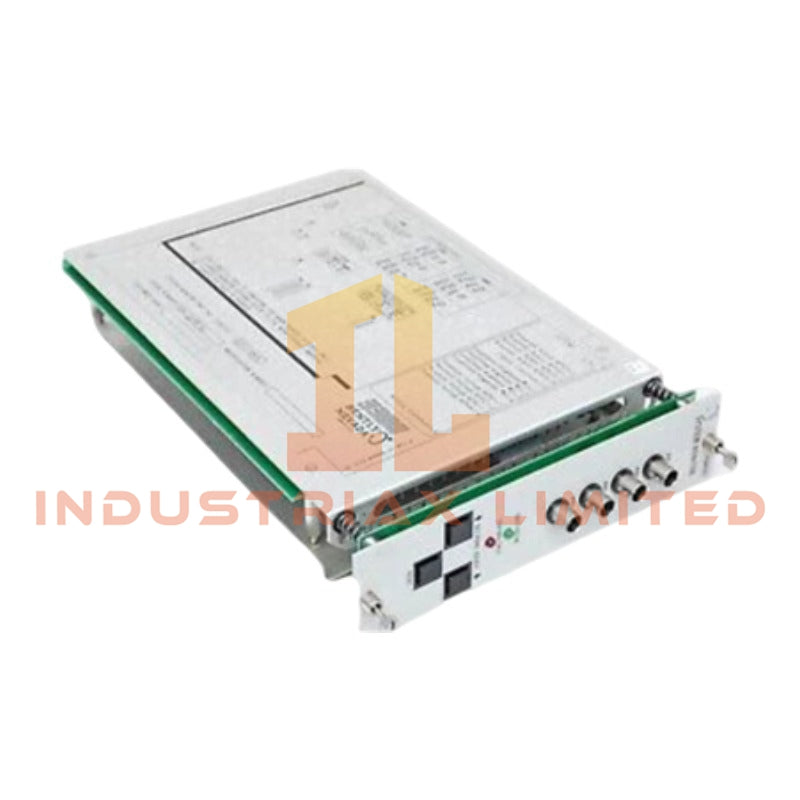

Bently Nevada 3300/03 System Monitor

Configured for rack-level signal conditioning and multi-channel monitor interconnection in the 3300 monitoring system, the Bently Nevada 3300/03 System Monitor (3300/03 System Monitor) provides direct physical/electrical execution within 3300 monitor rack architectures.

Suffix Breakdown & Model Matrix

No validated suffix segmentation is defined beyond the base ordering designation 3300/03 System Monitor. No internal subcode decomposition is assumed.

Hardware Specifications

Parameter	Specification
Model	3300/03 System Monitor
Brand	Bently Nevada
Origin	United States (Bently Nevada product line)
OperatingTemp	Not specified (system dependent rack environment)
PowerConsumption	2 W (4.6 W with interface options)
Keyphasor Inputs	Up to 4 proximity probe signals
Input Impedance	10 k ohm (Keyphasor inputs)
RS422 Baud Rate	Up to 19.2 k baud (SDI), 38.4 k baud (DDI)
RS232 Baud Rate	Up to 19.2 k baud
Signal Conditioning Range	Up to 10 kHz (software selectable)
Dynamic Accuracy	±0.3% full-scale typical at 25 degC
Phase Accuracy	±0.2 deg typical at 25 degC
Output Type	Buffered Keyphasor outputs (4 coaxial)

Bently Nevada Eddy-Current Signal Conditioning & Gap Validation Logic

The Bently Nevada 3300/03 System Monitor integrates eddy-current probe scaling logic for Keyphasor processing, maintaining proportional conversion between mechanical shaft displacement and conditioned voltage output. Gap voltage validation routines support negative bias operating windows (0 to -24 VDC / 0 to -18 VDC), ensuring stable probe linearization across rotor dynamic operating ranges. Cross-channel signal interaction is minimized through isolated impedance domains and buffered coaxial output stages, reducing crosstalk propagation in multi-rack installations.

Frequently Asked Questions

Q: Can the 3300/03 System Monitor interface directly with external control systems?
A: Yes. It supports RS422 and RS232 communication channels for SDI/DDI data transmission to external processors or compatible monitoring systems.

Q: What is the maximum Keyphasor input capacity?
A: The module accepts up to four proximity probe Keyphasor inputs with 10 k ohm input impedance and conditioned signal routing.

Q: Does the module perform internal signal conditioning?
A: Yes. It provides software-selectable frequency conditioning up to 10 kHz with dynamic and phase accuracy specified at 25 degC reference conditions.

Field Installation Guidelines

The 3300/03 System Monitor shall be installed within a compatible 3300 monitor rack backplane assembly with verified connector seating integrity. RS422/RS232 communication wiring must maintain controlled impedance routing and separation from high-noise power conductors. Keyphasor coaxial outputs require shield termination at a single-point ground to prevent ground loop formation. Probe input cabling should follow standard eddy-current extension practices, ensuring continuous shield integrity from probe head to termination module. Backplane insertion force must be applied evenly to avoid connector pin deformation.

Specifications

• Brand: Bently Nevada

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
