Description
Product Overview

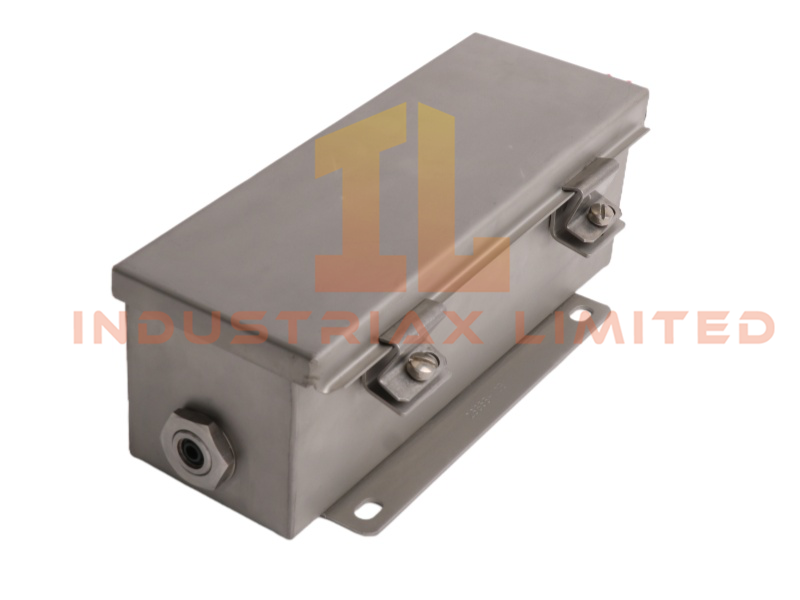

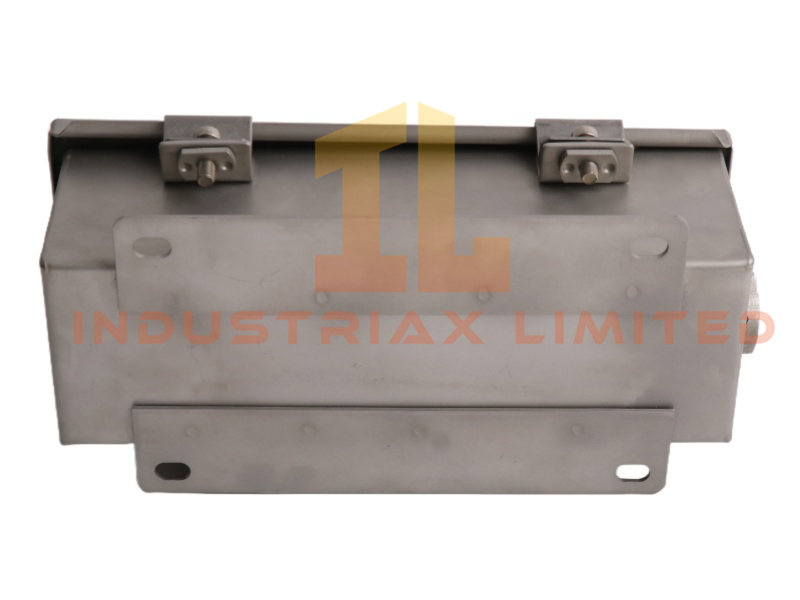

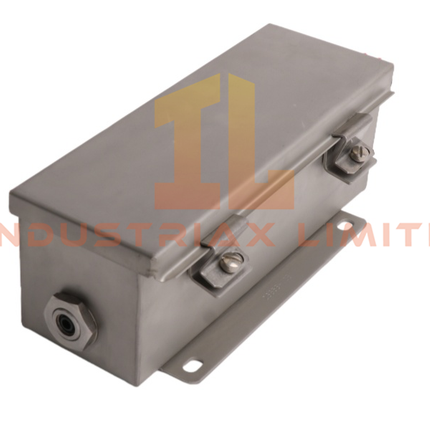

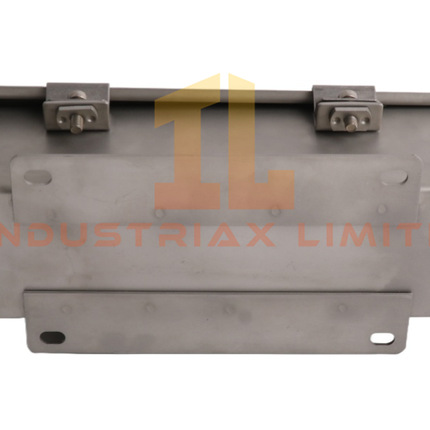

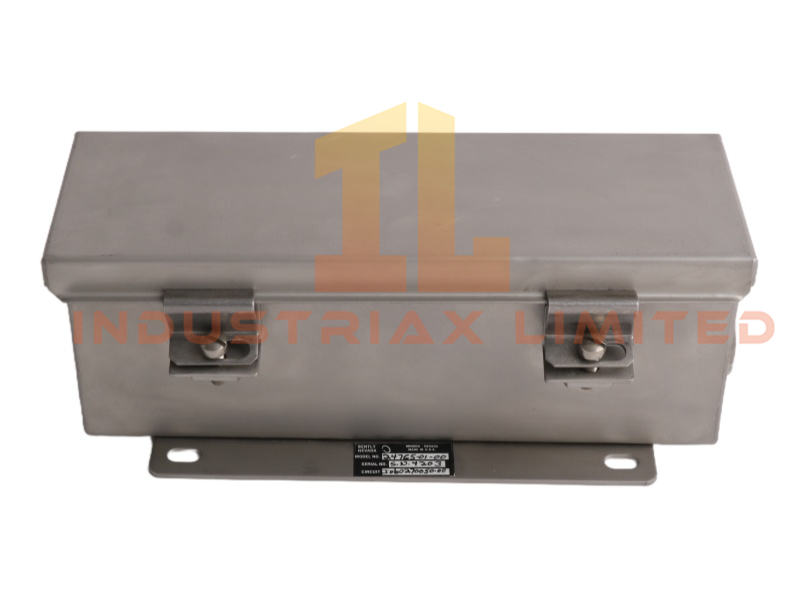

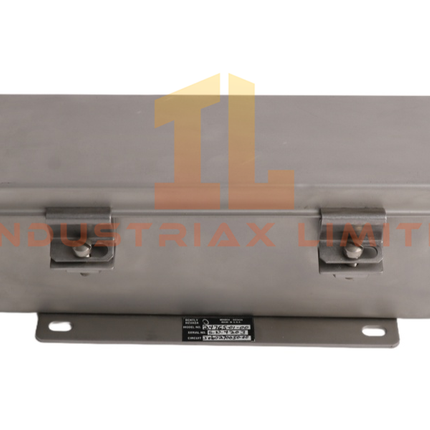

The Bently Nevada 24765-01-01 Case Expansion Transducer Assembly provides precise displacement measurement for turbines, compressors, and aerospace structures. Designed with a robust HSG case, this LVDT system ensures durability, long-term accuracy, and seamless integration into industrial monitoring applications.
Technical Specifications
| Parameter |
Value |
| Model Number |
24765-01-01 |
| Manufacturer |
Bently Nevada |
| Module Type |
Case Expansion Transducer Assembly |
| Product Range |
Bently Nevada |
| Condition |
Brand New |
| Dimensions |
1.8 × 1.6 × 123 cm |
| Weight |
0.06 kg |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System |
TSI |
| Communication Interface |
Ethernet Router |
| Status |
Active |
| Measurement Range |
0–10 inches |
| Resolution |
0.001 inches |
| Operating Temperature |
-40°C to +85°C |
| Output Options |
Analog 4–20 mA, Digital RS485 |
| Protection Rating |
IP67 |
Functional Description
The Bently Nevada 24765-01-01 offers a wide sensing range of 0–10 inches with a resolution of 0.001 inches, ensuring precise monitoring of mechanical expansion and contraction. Its compact 1.8 cm width and lightweight 0.06 kg design simplify installation, while the IP67 rating guarantees protection in harsh environments. Engineers benefit from analog 4–20 mA and digital RS485 outputs, which provide flexible connectivity to control systems.
Applications and Compatibility
The Bently Nevada 24765-01-01 integrates seamlessly into industrial monitoring systems, energy plants, and aerospace applications. Manufacturers deploy this transducer to measure turbine case expansion, structural displacement, and thermal changes in mechanical systems. Its versatility also makes it valuable for research and development projects requiring high-precision displacement monitoring.
Key Advantages
-
0–10 inch measurement range with 0.001 inch resolution.
-
Compact dimensions simplify installation in space-constrained environments.
-
Lightweight design reduces mechanical load during setup.
-
IP67 protection ensures durability in harsh industrial conditions.
-
Flexible output options support analog and digital integration.
-
Suitable for energy, aerospace, and R&D applications.
