Description
Overview

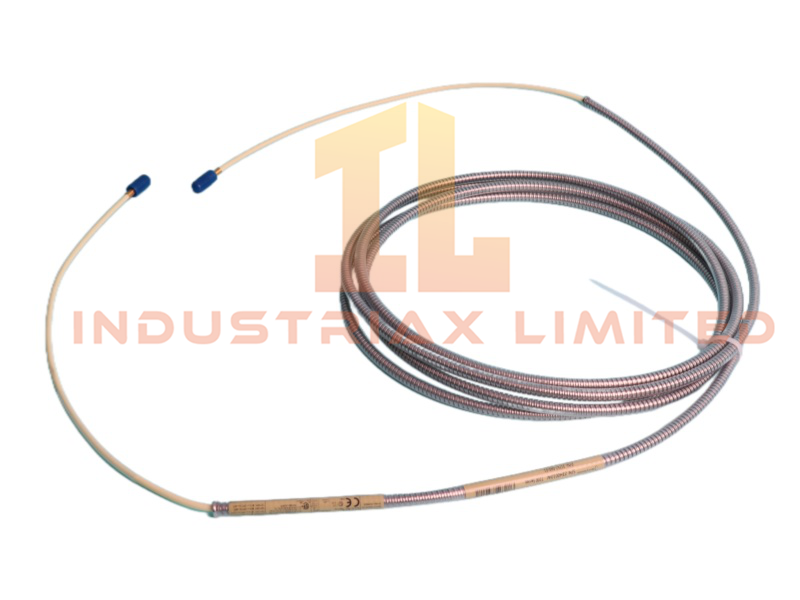

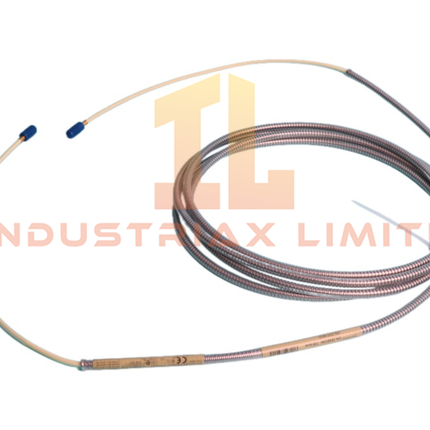

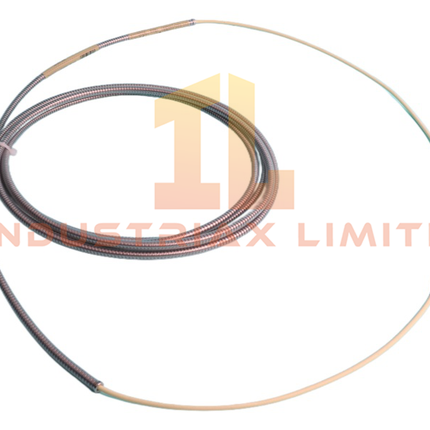

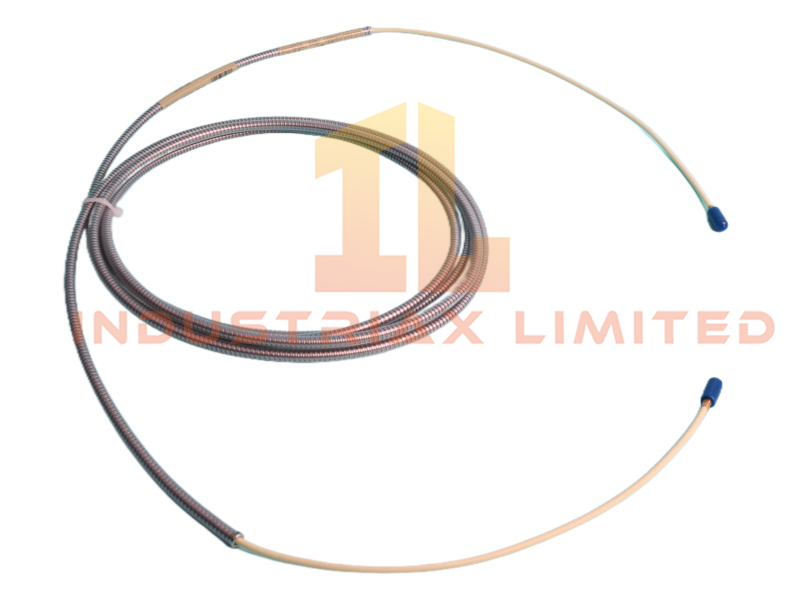

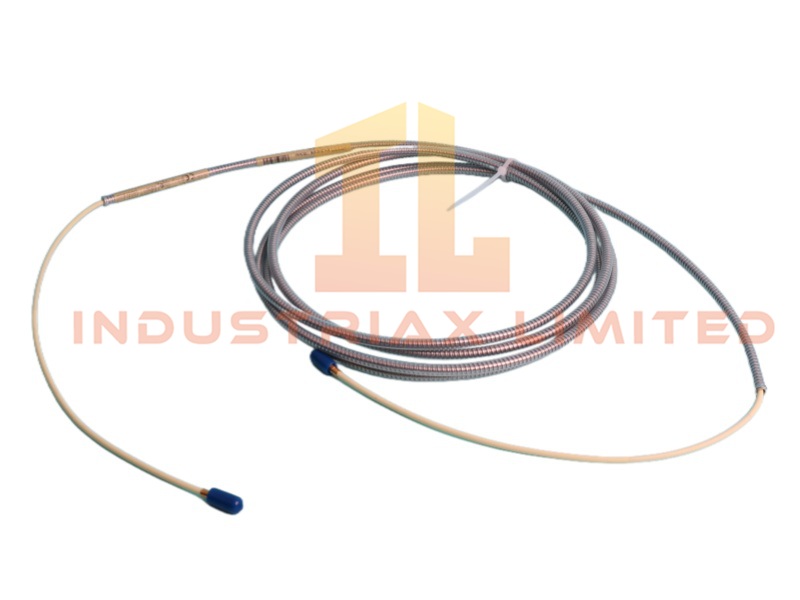

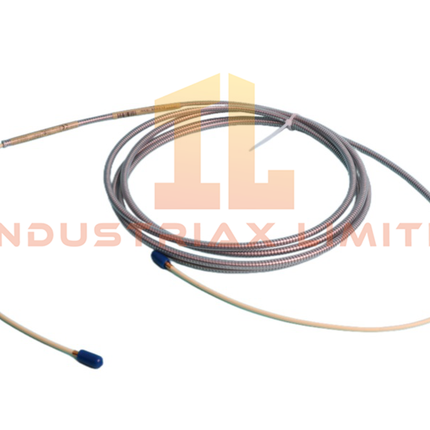

The 21747-040-01 Bently Nevada extension cable is a 4-meter signal transmission cable designed for use with proximity transducer systems. Manufactured in the USA, it is fully compatible with 7200 series monitoring equipment and ensures reliable displacement measurement across its entire length.
Technical Specifications
| Parameter |
Value |
| Model Number |
21747-040-01 |
| Product Type |
Extension Cable |
| Manufacturer |
Bently Nevada |
| Condition |
Brand New |
| Product Range |
Bently Nevada Monitoring Solutions |
| Cable Length |
4 m |
| Compatible Probes |
5 mm and 8 mm proximity probes |
| Measurement Range |
80 mils (2 mm) |
| Frequency Response |
0 Hz (DC) – 10 kHz |
| Connector Type |
Miniature coaxial ClickLoc |
| Weight |
0.06 kg |
| Dimensions |
1.8 × 1.6 × 123 cm |
| Certifications |
CSA, ATEX, IECEx |
| HS Code |
8537101190 |
| Origin |
USA |
| MOQ |
1 |
| Availability |
In Stock |
Functional Highlights
-
Provides reliable signal transmission between proximity probes and monitoring systems.
-
Maintains API 670 compliance for gap-to-voltage transduction.
-
Non-interference design ensures accurate readings in electrically noisy environments.
-
Compatible with both static and dynamic displacement measurements.
-
Durable construction for long-term use in demanding industrial conditions.
Application Scenarios
-
Shaft position and vibration monitoring in turbines.
-
Compressor and pump installations requiring extended cabling.
-
Electric motor diagnostics in hazardous environments.
-
Reciprocating machinery monitoring with API 670 compliance.
FAQ
Q: Which probes are supported by this cable? A: The 21747-040-01 works with both 5 mm and 8 mm proximity probes.
Q: What is the measurement range supported? A: It provides a linear range of 80 mils (2 mm) with a frequency response up to 10 kHz.
Q: Is it suitable for hazardous environments? A: Yes, it carries CSA, ATEX, and IECEx certifications for global compliance.
