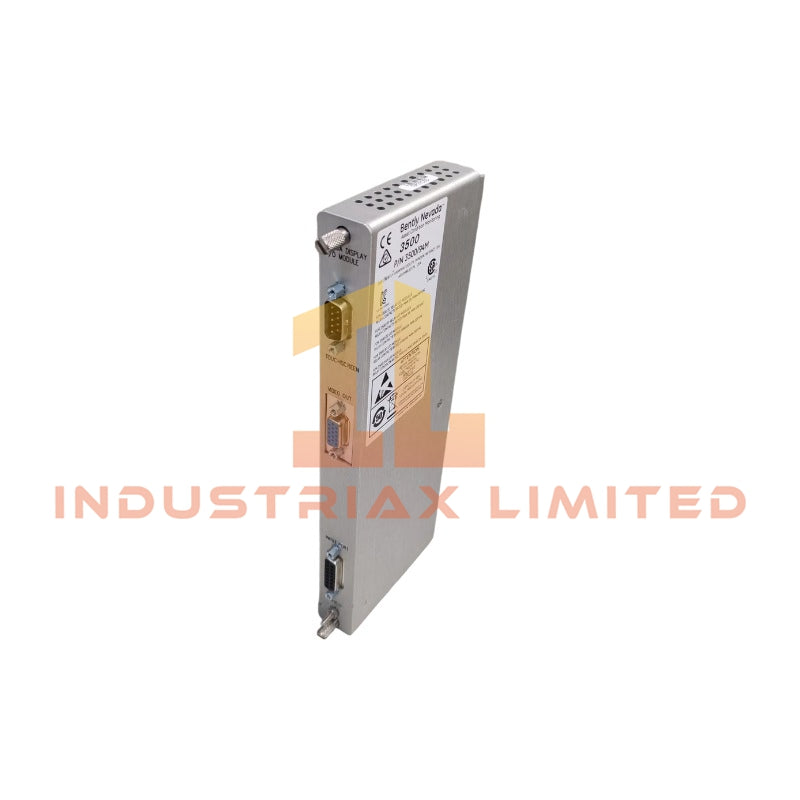

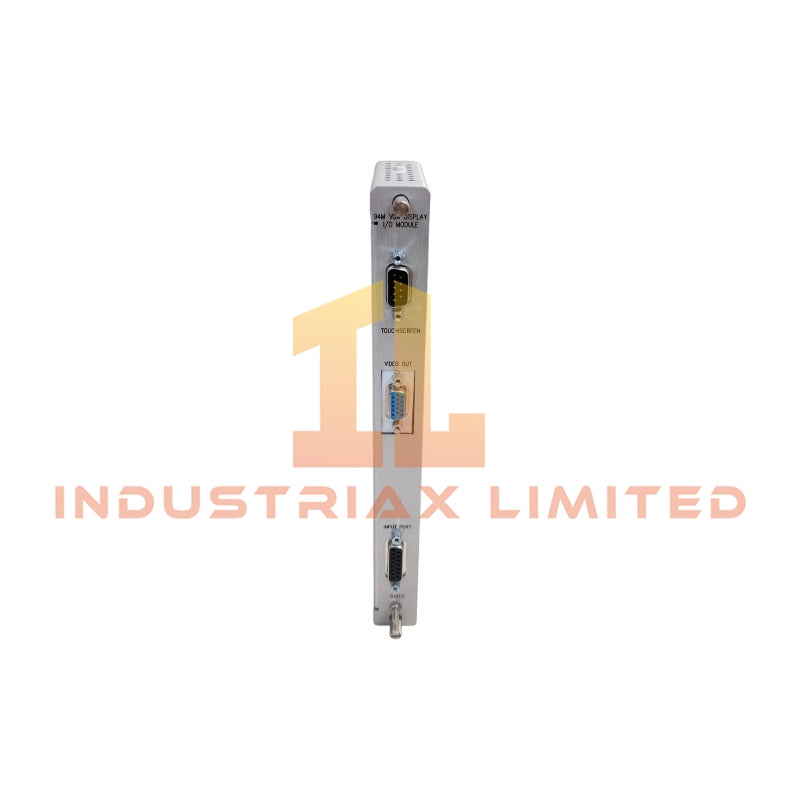

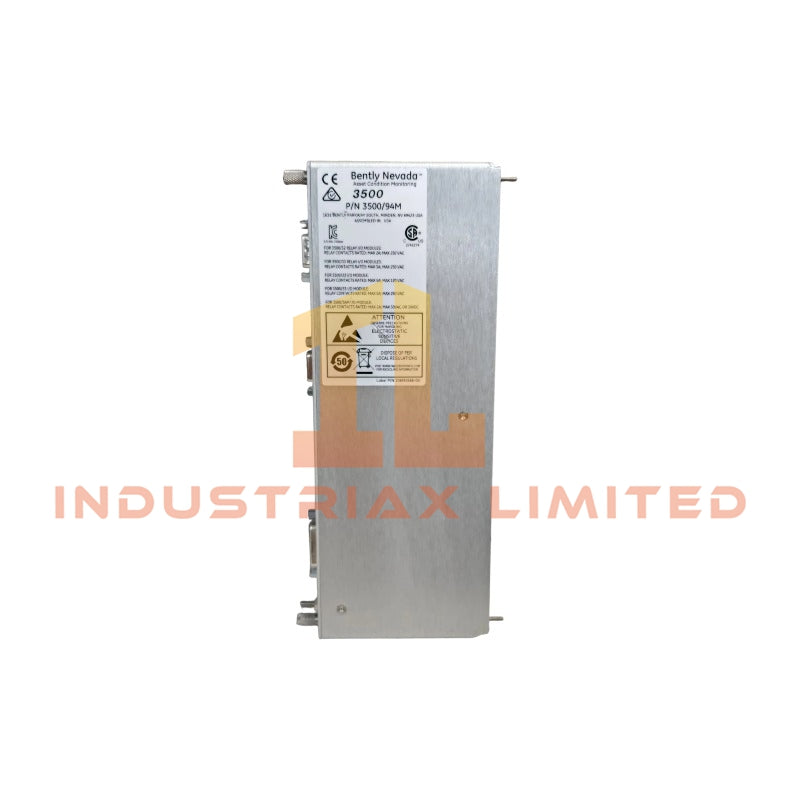

Bently Nevada 190214-01 3500/94M VGA I/O Module
The Bently Nevada 190214-01, also cataloged as the 3500/94M VGA I/O Module, operates as a dedicated hardware component for displaying machinery protection system data within the Bently Nevada 3500 monitoring platform.
Hardware Specifications
Parameter
Specification
Model
190214-01
Brand
Bently Nevada
Product Type
VGA I/O Module
Series
3500
System Compatibility
Bently Nevada 3500 Machinery Protection System
Origin
United States (USA)
Weight
0.38 kg
Dimensions
2.4 x 11 x 24.1 cm (shipping size)
Display Interface
VGA display interface with touch screen support
Maximum Custom Screens
Up to 9 custom screens
Display Distance
Up to 6 m using standard cables
Extended Distance Support
Up to 10 km using supported KVM Extender systems
Rotor Monitoring Interface and Display Data Processing
The 190214-01 VGA I/O Module provides the display interface function for Bently Nevada 3500 machinery protection systems. It transfers configured monitoring information from the rack system to external VGA display equipment.
The module supports custom screen configuration through the 3500 Rack Configuration Software. Operators can organize system information into multiple pages and create machine train display groups based on configured screen layouts.
The 3500/94M system configuration consists of the VGA module, I/O module, and a 10 inch or 15 inch VGA touch screen display. The module maintains communication between the 3500 rack monitoring hardware and the external visualization interface.
Frequently Asked Questions
Q: What display devices are compatible with the 190214-01 module? A: The 190214-01 is designed for use with VGA display equipment within the 3500/94M configuration, including supported 10 inch and 15 inch VGA touch screen displays.
Q: Can the VGA display be installed away from the 3500 rack? A: Yes. The module supports VGA display installation up to 6 m from the 3500 rack using standard cables. Longer distances require compatible KVM Extender equipment.
Q: Is the KVM Extender installation suitable for hazardous areas? A: Only approved receiver configurations may be used in specific hazardous area installations. The transmitter and unsupported extender equipment must be installed in safe areas or suitable approved enclosures.
Field Installation Guidelines
Install the 190214-01 module according to the Bently Nevada 3500 rack hardware configuration requirements.
Verify VGA cable routing before installation to prevent excessive cable length and signal degradation.
Keep display communication cables separated from high-voltage power wiring and high-current motor circuits.
Use proper grounding practices for connected display equipment and rack assemblies.
Confirm KVM Extender environmental approvals before installation in classified areas.
Ensure all external display devices are mounted in locations that maintain cable protection and service accessibility.
