Description

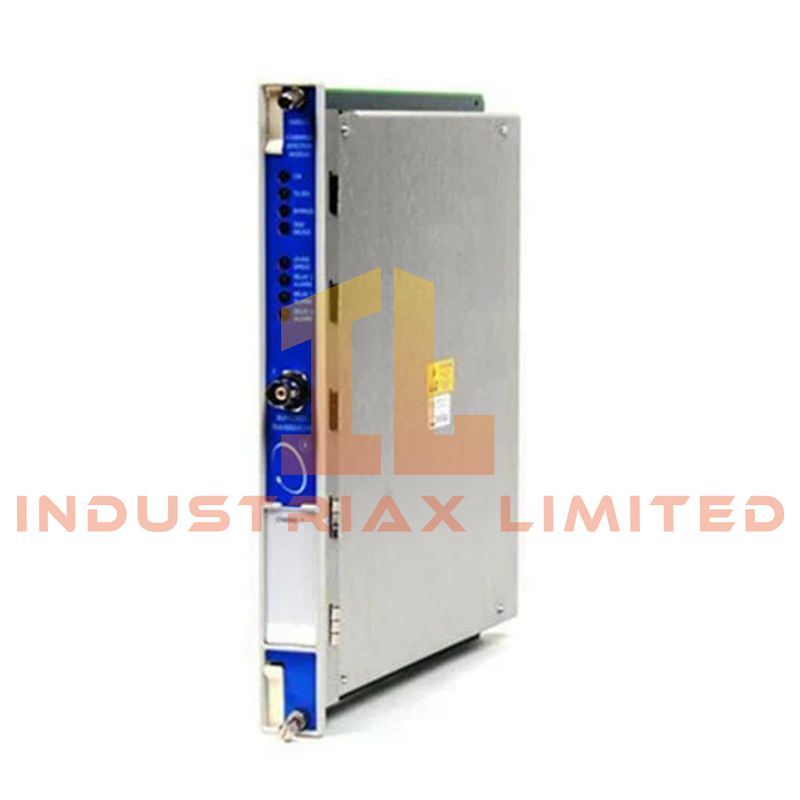

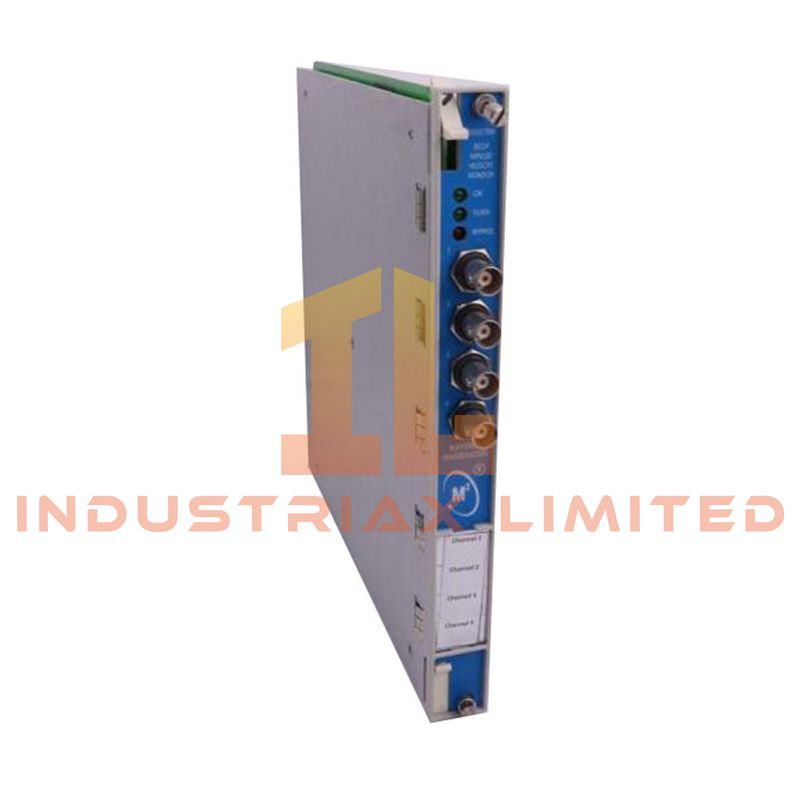

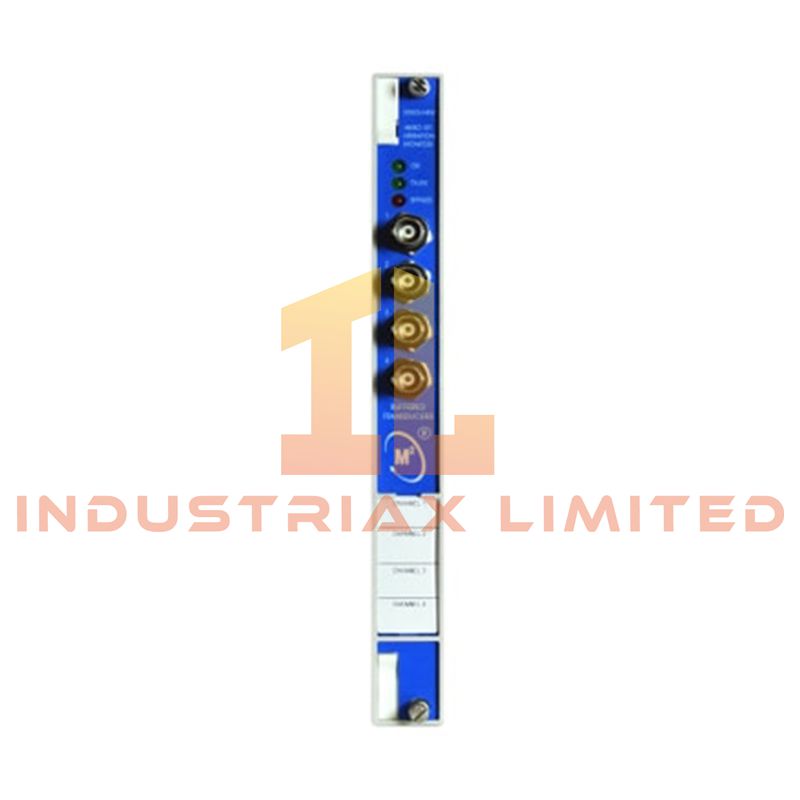

Bently Nevada 176449-03 3500/44M Aeroderivative GT Vibration Monitor Module
The Bently Nevada 176449-03, also cataloged as the 3500/44M Aeroderivative GT Vibration Monitor Module, serves as the primary vibration monitor module utilized to execute multi-channel vibration signal acquisition and processing across 3500 Machinery Protection System platforms. The module processes proximity probe and seismic transducer inputs for real-time protection logic and diagnostic output generation in turbine monitoring channels.
Hardware Specifications
| Parameter |
Specification |
| Model |
176449-03 |
| Brand |
Bently Nevada |
| Origin |
USA |
| Weight |
0.9 kg |
| Dimensions |
241.3 x 24.4 x 242 mm |
| Operating Temp |
-30 deg C to +65 deg C |
| Storage Temperature |
-40 deg C to +85 deg C |
| Power Consumption |
~7.7 W |
| Channels |
4-channel vibration monitoring (programmable in pairs) |
| Sensor Inputs |
Proximity probes (eddy-current), seismic transducers |
| Measurements |
Radial vibration, shaft absolute, casing vibration, acceleration |
| Recorder Outputs |
4-20 mA DC proportional outputs |
| Relay Outputs |
Alarm and trip relay contacts |
| Installation |
Rack-mounted, hot-swappable |
Bently Nevada Aeroderivative Rotor Dynamics Signal Processing Behavior
The 176449-03 module is optimized for aeroderivative gas turbine vibration signatures, where high rotational speed and transient load variation require tightly controlled signal separation. Channel-pair configuration supports independent mapping of radial and casing vibration vectors for synchronous and asynchronous rotor dynamic analysis.
Cross-talk suppression circuitry is implemented at the analog front-end stage to reduce inter-channel coupling during high-frequency vibration events. Eddy-current probe inputs are scaled to maintain stable displacement reference behavior, while seismic channels process velocity and acceleration signals for broadband mechanical response interpretation. Signal conditioning ensures stable 4-20 mA output representation under transient mechanical excitation.
Frequently Asked Questions (FAQ)
Q: Can the 176449-03 be hot-swapped during system operation?
A: Yes. The module supports hot-swapping in a live 3500 rack. Trip inhibit must be enabled to prevent unintended protective relay activation during insertion or removal.
Q: How are vibration channels configured in the 176449-03?
A: Channels are programmable in pairs, allowing independent assignment for radial vibration, casing vibration, or acceleration measurement depending on sensor type.
Q: Does cross-talk suppression affect measurement latency?
A: No additional processing latency is introduced at the output stage. Cross-talk suppression is implemented in the analog conditioning path to maintain real-time signal integrity.
Field Installation Guidelines
The module must be installed into a compatible Bently Nevada 3500 rack slot with full backplane engagement confirmed prior to energization. Improper seating can result in loss of channel synchronization or diagnostic reporting.
Sensor wiring for proximity probes and seismic transducers must use shielded twisted-pair cables. Shield termination shall be implemented at a single-point ground reference within the cabinet to prevent ground loop formation across high-sensitivity vibration inputs.
During hot-swap operations, trip inhibit must remain active until the module is fully seated and recognized by the rack backplane. Routing of sensor wiring must be physically separated from high-current conductors to reduce induced noise on measurement channels.
