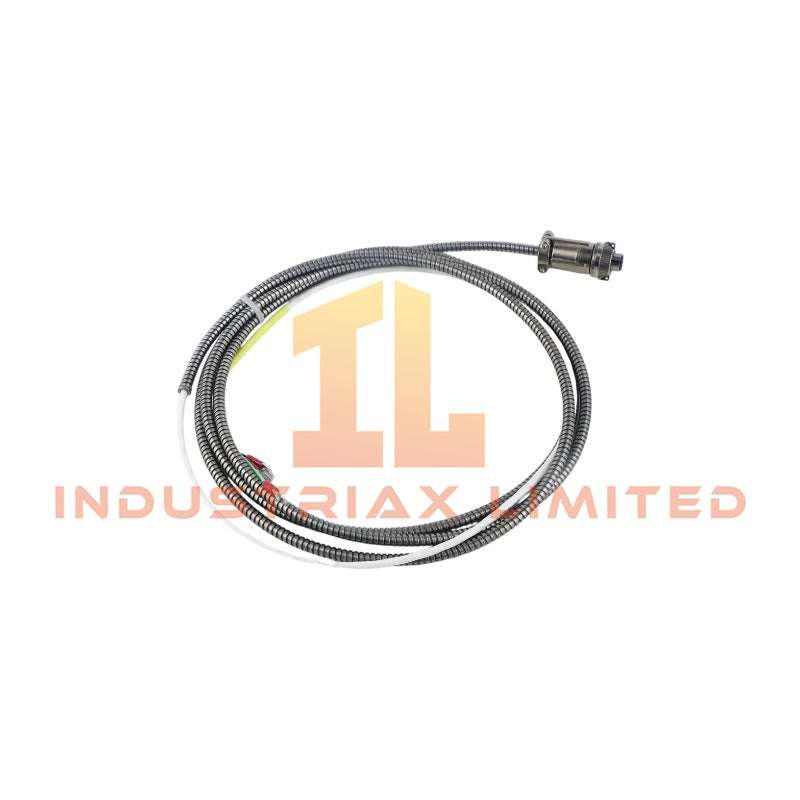

Bently Nevada 16710-08 Interconnect Cable

The Bently Nevada 16710-08, also cataloged as the 16710-08 Interconnect Cable, operates as a dedicated hardware component for shielded signal transmission between accelerometers and monitoring systems within Bently Nevada machinery protection platforms.

Hardware Specifications

Parameter	Specification
Model	16710-08
Brand	Bently Nevada
Product Type	Interconnect Cable
Origin	USA
Weight	0.2 kg
Dimensions	Estimated shipping size: 25 x 25 x 3 cm
Operating Temp	-35 deg C to +105 deg C
Power Consumption	Passive cable assembly, no external power consumption
Cable Length	8 feet (2.44 meters)
Minimum Length	3 feet (0.91 meters)
Maximum Length	99 feet (30.2 meters)
Conductors	3-conductor shielded cable
Conductor Gauge	22 AWG (0.5 mm2)
Voltage Rating	Typically 300 V
Connector Type	3-socket plug at one end, terminal lugs at the other end

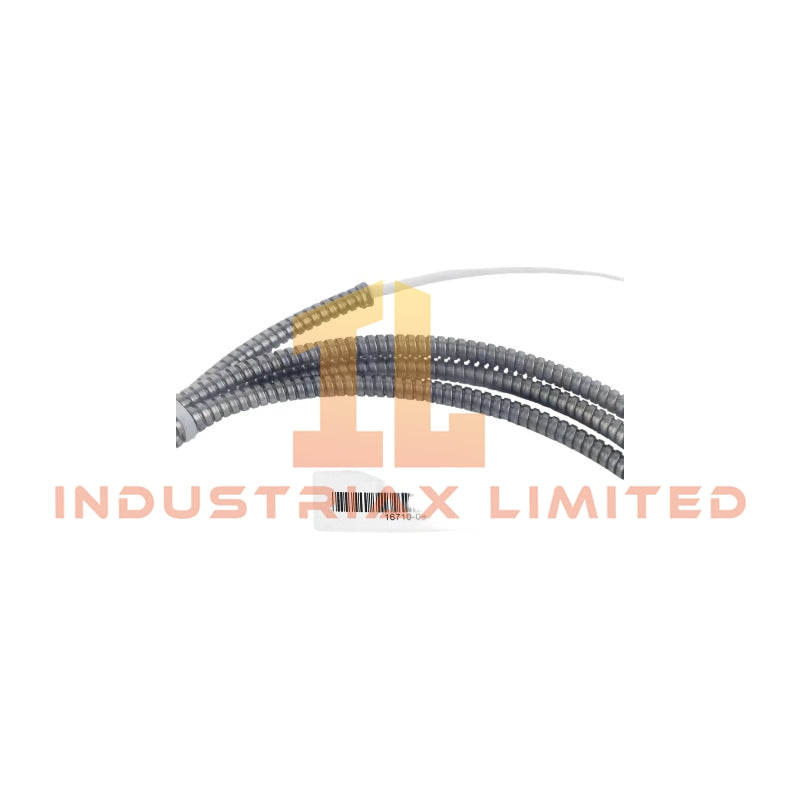

Cable Construction	Armored interconnect cable

Machinery Monitoring Signal Interface Characteristics

The Bently Nevada 16710-08 uses a 3-conductor shielded armored structure to maintain signal integrity between vibration sensors and monitoring equipment. Therefore, it supports direct connection of compatible accelerometers, including the 330400 and 330425 series, for casing acceleration measurement applications.

The cable assembly provides mechanical protection through its armored construction while maintaining electrical shielding for vibration signal transmission. In addition, the terminal lug termination allows field wiring connection to monitoring system terminals.

The connected accelerometers operate with defined sensitivity characteristics. The 330400 accelerometer provides a 50 g peak amplitude range with 100 mV/g sensitivity, while the 330425 model provides a 75 g peak amplitude range with 25 mV/g sensitivity.

For machinery protection systems, proper cable routing and shielding practices help reduce signal interference and maintain accurate vibration data acquisition. The assembly supports applications requiring consistent acceleration measurement for conditions such as gear mesh monitoring.

Frequently Asked Questions

Q: What type of sensors can connect to the Bently Nevada 16710-08 cable?
A: The 16710-08 cable is designed for 3-wire accelerometers, including compatible Bently Nevada 330400 and 330425 accelerometer models.

Q: Does the 16710-08 cable require an external power supply?
A: No. The cable is a passive interconnect component and does not consume electrical power. It transfers sensor signals between the accelerometer and monitoring hardware.

Q: How should the cable shield be installed in the field?
A: The shield should follow the machinery monitoring system grounding requirements. Field installation should avoid improper shield termination that may introduce electrical noise into vibration measurement circuits.

Field Installation Guidelines

• Verify the cable length before installation because the 16710-08 series supports configured lengths from 3 feet (0.91 meters) to 99 feet (30.2 meters).
• Route the armored cable away from high-current power conductors to reduce electromagnetic interference.
• Connect the 3-socket plug end directly to the compatible accelerometer interface.
• Terminate the opposite end using the supplied terminal lugs according to the monitoring system wiring diagram.
• Maintain proper shield grounding practices to preserve vibration signal quality.
• Avoid excessive bending or mechanical stress on the armored cable during installation.
