Description

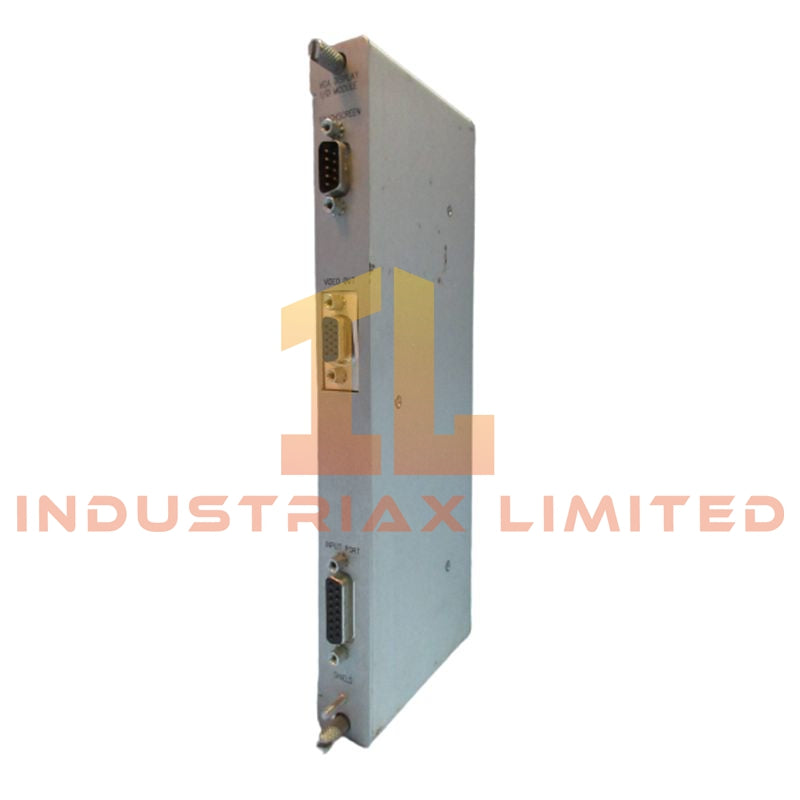

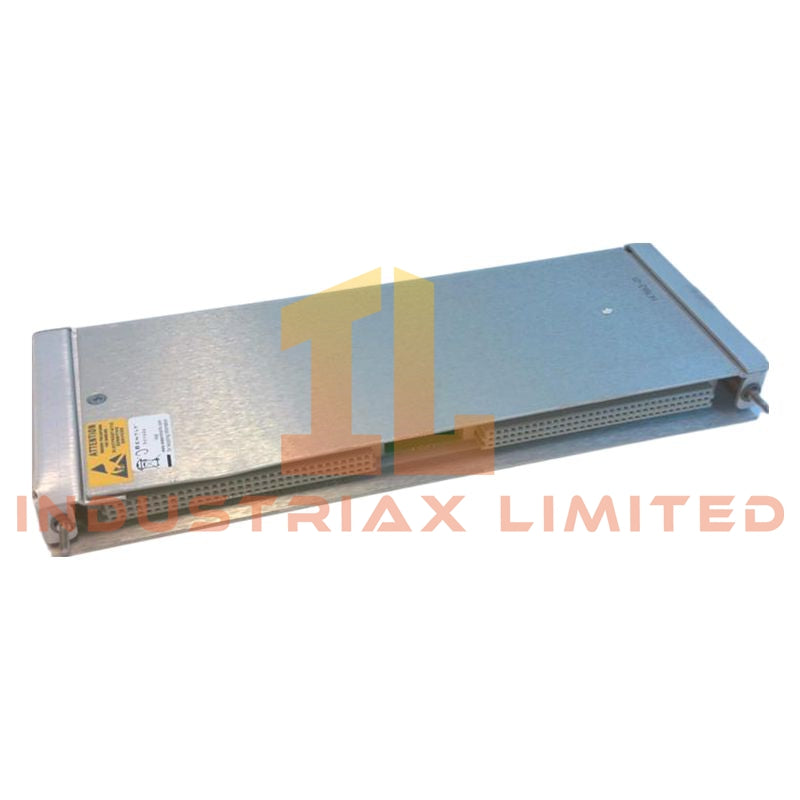

Bently Nevada 147663-01 VGA Display I/O Module
Configured for real-time visualization of vibration, position, gap, and machinery condition data in the 3500/94 Machinery Protection System, the Bently Nevada 147663-01 (147663 VGA Display I/O Module) provides direct physical and graphical interface functionality. The module supports local touch-screen operation, remote VGA monitor connectivity up to 10 m, configurable machine monitoring screens, and API-670 compatible display formatting within 3500 rack installations.
Suffix Breakdown & Model Matrix
The supplied documentation identifies 147663-01 as a complete ordering model. No official suffix matrix or option breakdown is provided in the available data; therefore, no further suffix interpretation is included.
Hardware Specifications
| Parameter |
Specification |
| Model |
147663-01 |
| Brand |
Bently Nevada |
| Series |
3500/94 |
| Product Type |
VGA Display I/O Module |
| Origin |
USA |
| Display Type |
Color VGA with touch-screen interface |
| Custom Screens |
Up to 9 configurable display screens |
| Supported Data |
Vibration, gap, position, machine train and system data |
| Resolution |
Up to 1920 x 1080 @ 60 Hz |
| Indicators |
OK LED, Bypass LED |
| Remote Display Distance |
Up to 10 m (33 ft) |
| Configuration Method |
3500 Rack Configuration Software |
| Compliance |
API-670 compatible display format |
| Power Supply |
5 VDC input (version dependent) |
| Operating Temp |
-20 deg C to +70 deg C |
| Environmental Protection |
IP54 |
| MTBF |
Approximately 50,000 hours |
| Dimensions |
241.3 x 24.4 x 99.1 mm |
| Weight |
0.34 kg |
| Core Function |
Real-time machinery monitoring display interface |
Eddy-Current Probe Data Visualization and Gap Validation
Within 3500 Series machinery protection systems, the 147663-01 display interface presents dynamic information generated by vibration monitors, position monitors, and proximity probe channels. Operators can review shaft vibration amplitudes, phase information, machine train status, and probe gap conditions from configurable display pages.
For installations utilizing eddy-current proximity probes, displayed gap values are commonly verified against commissioning targets established by the associated monitor channels. Proper gap voltage validation assists maintenance personnel in confirming probe positioning and signal integrity before machinery startup. The display module itself performs visualization functions and depends on the corresponding 3500 monitoring modules for signal acquisition and processing.
Frequently Asked Questions
Q: Does the 147663-01 directly acquire vibration signals from proximity probes?
A: No. The module functions as a display and operator interface. Signal acquisition and processing are performed by the corresponding 3500 monitoring modules installed within the rack.
Q: Can a remote monitor be connected to the module?
A: Yes. The module supports remote VGA monitor connections with a specified distance of up to 10 m using appropriate cabling practices.
Q: Is the module hot-swappable while the rack is energized?
A: Hot-swap capability is not explicitly specified in the provided documentation. Installation, removal, or replacement should follow approved 3500 system maintenance procedures and site safety requirements.
Field Installation Guidelines
-
Install the module only in designated 3500/94 rack positions specified by the system documentation.
-
Verify rack power status and maintenance procedures before insertion or removal.
-
Route VGA and communication cabling separately from high-energy power conductors to reduce electromagnetic interference.
-
Maintain proper shield grounding practices according to plant instrumentation standards.
-
Confirm all module seating and backplane engagement before system energization.
-
Validate display operation, alarm visibility, and machine data presentation following configuration download.
-
When remote displays are used, ensure cable length does not exceed the specified maximum distance and avoid excessive bending or mechanical stress on connectors.
