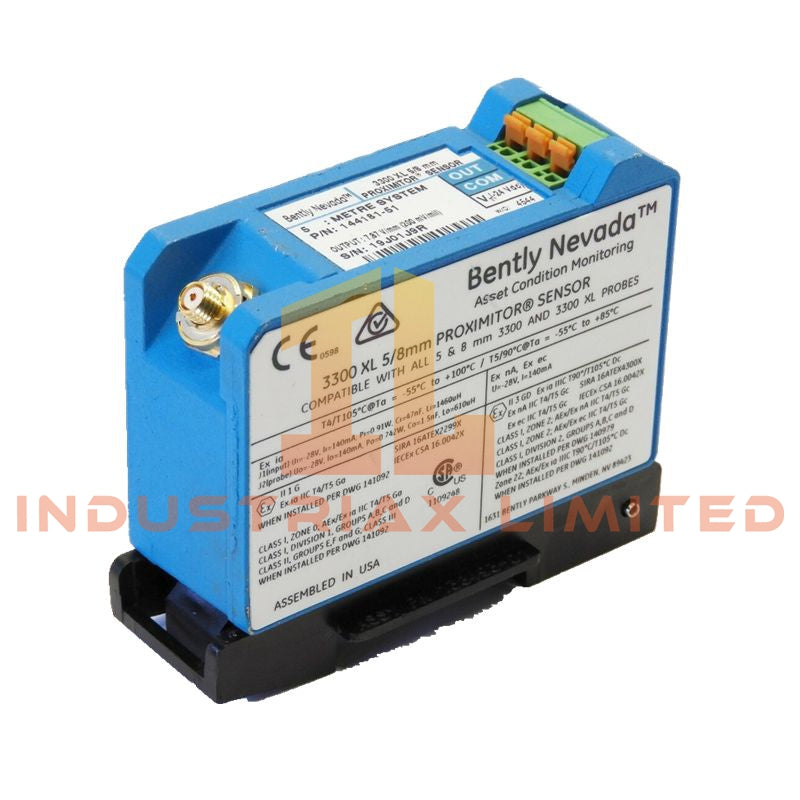

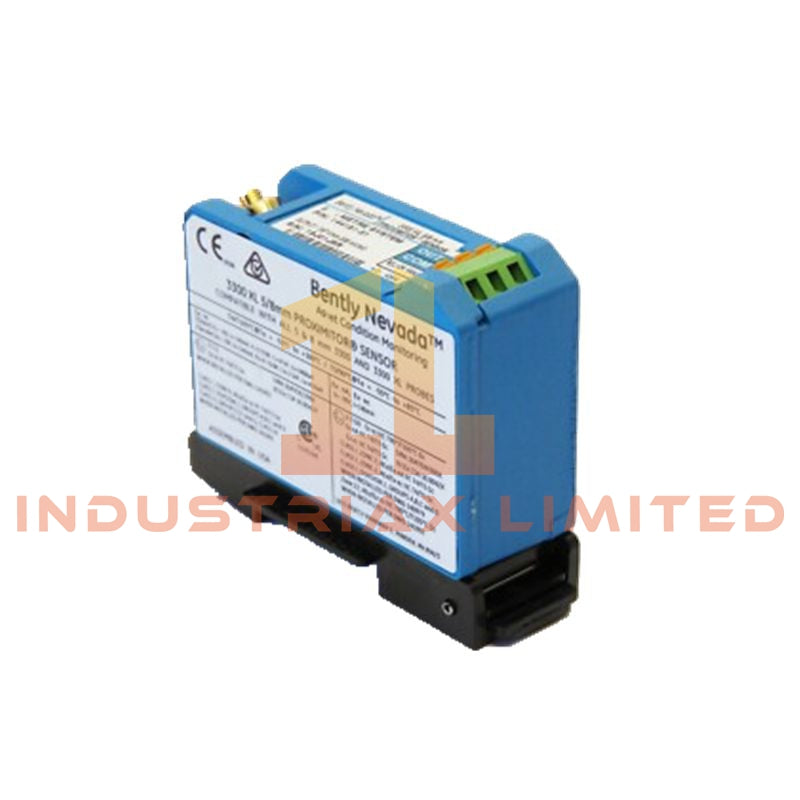

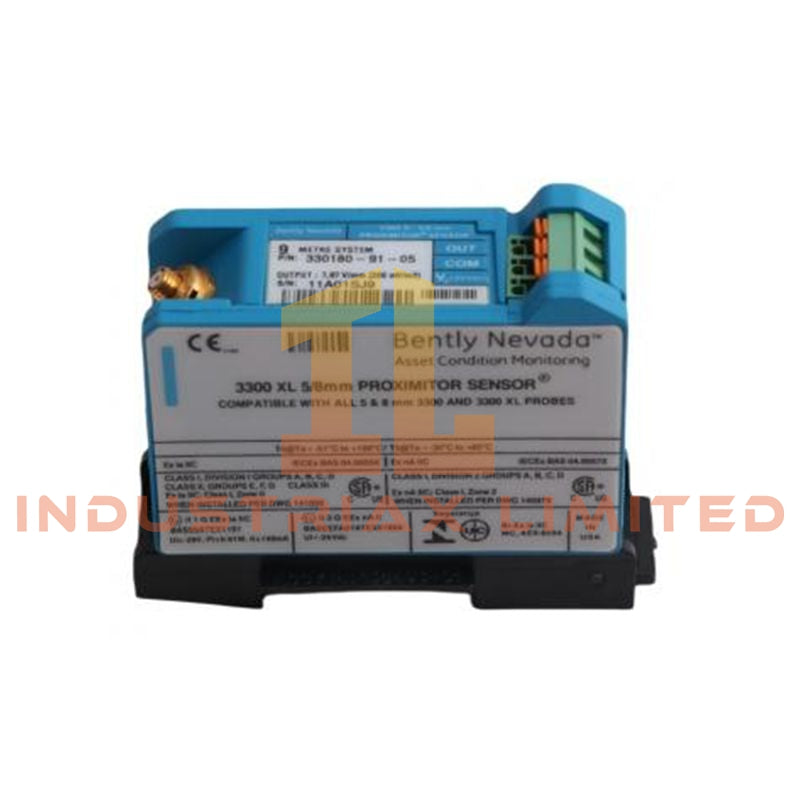

Bently Nevada 144181-51 3300 XL 5/8 mm Proximity Sensor
Configured for non-contact shaft displacement and vibration measurement in 3300 XL machinery monitoring networks, the Bently Nevada 144181-51 (144181-51 Proximity Sensor) provides direct electrical execution. The sensor assembly operates with analog voltage output scaling for rotor position and dynamic vibration acquisition across rotating equipment monitoring channels.
Suffix Breakdown & Model Matrix
| Parameter |
Specification |
| Full Model |
144181-51 |
| Base Model |
144181 |
| Brand |
Bently Nevada |
| Series |
3300 XL |
| Product Type |
5/8 mm Proximity Sensor |
| Measurement Method |
Eddy-current non-contact sensing |
| Output Type |
Analog voltage |
| Mounting Method |
Threaded or bracket-mounted installation |
Hardware Specifications
| Parameter |
Specification |
| Model |
144181-51 |
| Brand |
Bently Nevada |
| Origin |
United States |
| Series |
3300 XL |
| Sensor Type |
Eddy-current proximity sensor |
| Operating Frequency |
10 kHz to 1 MHz |
| Input Impedance |
50 Ohm |
| Output Signal |
Analog voltage |
| Sensitivity |
200 mV/mil (7.87 V/mm) |
| Accuracy |
+/-0.5% |
| Resolution |
100 mV |
| Operating Voltage |
24 VDC typical |
| Operating Temp |
-40 deg C to +120 deg C |
| Storage Temp |
-40 deg C to +125 deg C |
| Humidity |
0-95% non-condensing |
| Protection Rating |
IP65 |
| Housing Material |
Stainless steel |
| Shaft Diameter Range |
10 mm to 300 mm |
| Probe Length |
50 mm to 1000 mm |
| Dimensions |
Approximately 81 x 35 x 64 mm |
| Weight |
Approximately 0.25 kg to 2 kg depending on configuration |
| Compliance |
CE, UL, API 670 |
| Application |
Shaft displacement and vibration monitoring |
Eddy-Current Probe Scaling and Gap Voltage Validation
The 3300 XL sensing architecture applies eddy-current transducer scaling to generate linear shaft displacement output relative to conductive target movement. Probe response is influenced by shaft metallurgy, surface finish, and radial clearance stability.
During commissioning, gap voltage verification is commonly performed against nominal negative bias targets near -10 VDC to confirm proper probe-to-shaft positioning within the calibrated linear operating region. Incorrect gap positioning may introduce amplitude compression, non-linear response, or elevated cross-talk between adjacent probe channels.
Rotor dynamic monitoring applications typically use the sensor for:
-
Radial vibration measurement
-
Axial thrust displacement detection
-
Differential expansion observation
-
Eccentricity and shaft position tracking
The analog response bandwidth supports both slow-roll shaft behavior and higher-frequency vibration signatures generated by imbalance, rub, or misalignment conditions.
Frequently Asked Questions
Q: Does the 144181-51 support direct hot-swap replacement while the monitoring rack remains energized?
A: Hot-swap capability depends on the associated monitoring rack and proximitor interface design. Standard practice requires verification of channel inhibit conditions before probe replacement to avoid transient vibration alarms or invalid gap readings.
Q: What installation factors affect proximity sensor linearity?
A: Probe tip clearance, shaft material composition, concentricity, cable routing separation, and grounding continuity directly affect linear analog response and signal stability.
Q: Can multiple proximity probes be installed in close mechanical spacing?
A: Yes, but probe spacing and cable shielding practices must minimize electromagnetic coupling. Cross-talk suppression becomes increasingly important in multi-channel radial vibration monitoring arrangements.
Field Installation Guidelines
-
Maintain shield grounding at a single designated instrumentation grounding point to reduce circulating noise currents.
-
Route proximity probe extension cables separately from high-voltage motor leads and VFD output conductors.
-
Verify probe target surface condition before calibration. Excessive shaft runout or surface scoring may distort vibration readings.
-
Avoid excessive cable bending radius near connector transitions and probe heads.
-
Confirm threaded engagement depth and mechanical locking torque according to the associated mounting hardware specification.
-
Validate gap voltage after installation and again after thermal stabilization of the rotating assembly.
