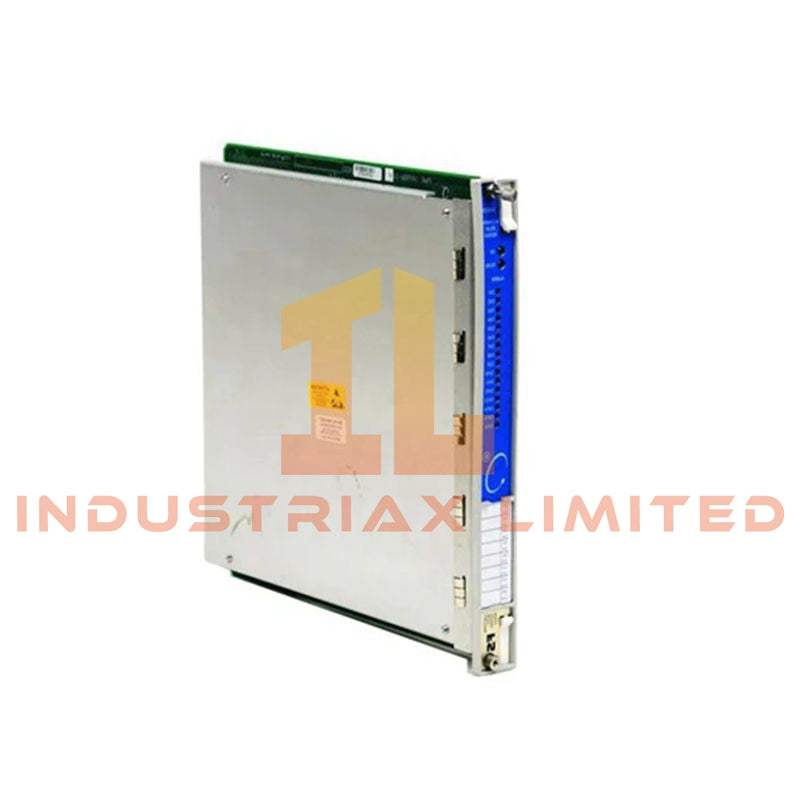

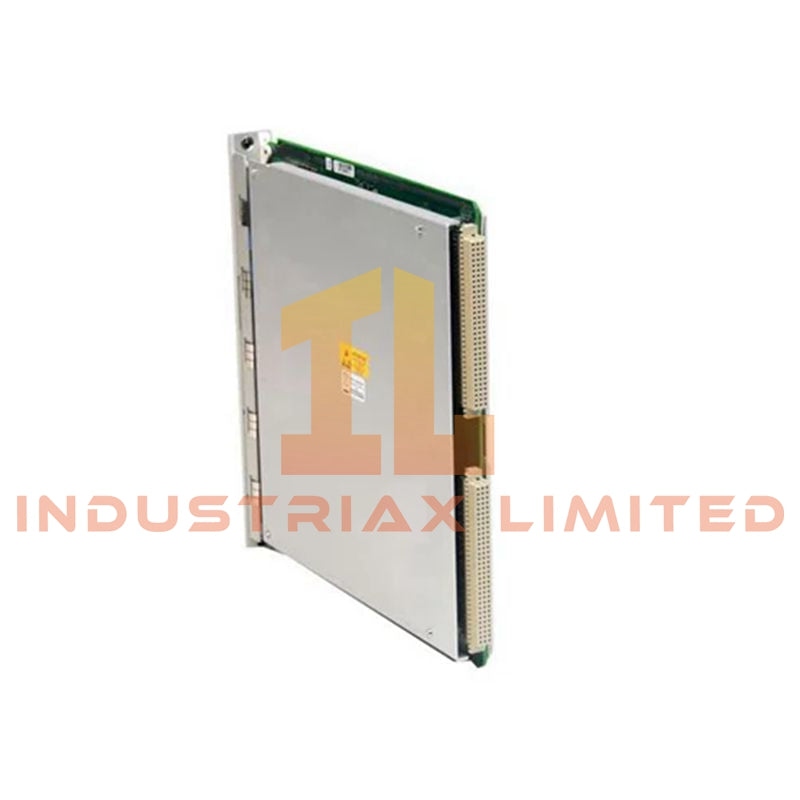

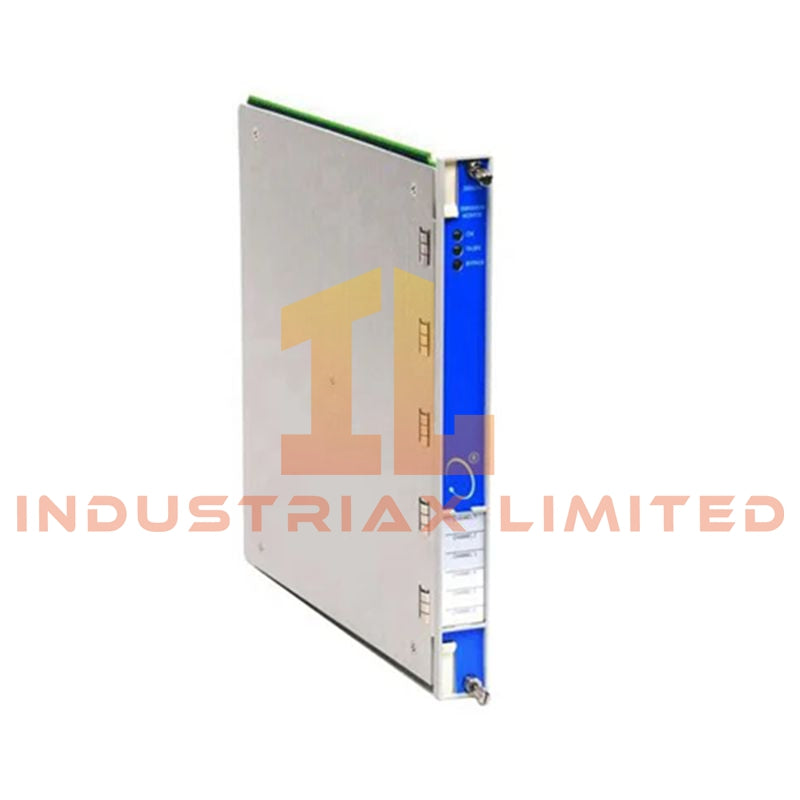

Bently Nevada 136179-01 3500 Series Isolated Input Module
The Bently Nevada 136179-01, also cataloged as the 136179-01 3500 Series Isolated Input Module, operates as a dedicated 4-channel signal acquisition interface for vibration and shaft position measurement within Bently Nevada 3500 machinery protection architectures.
Configured for proximity probe and vibration sensor signal conditioning in multi-channel monitoring chains, the Bently Nevada 136179-01 (136179-01 input module) provides galvanically isolated analog-to-digital conversion across independent measurement channels in the 3500 backplane system.
Suffix Breakdown & Model Matrix
Hardware Specifications
| Parameter |
Specification |
| Model |
136179-01 |
| Brand |
Bently Nevada |
| Weight |
0.33 kg |
| Dimensions |
241 mm × 24.4 mm × 163 mm |
| Operating Temp |
–30 deg C to +65 deg C |
| Power Consumption |
Up to 7.7 W |
| Channels |
4 isolated input channels |
| Input Types |
Proximity probes, vibration sensors, position sensors |
| Isolation |
Galvanic isolation between channels |
| Backplane Isolation |
500 Vrms |
| Hot-Swap Capability |
Supported |
| Signal Conditioning |
Internal analog sampling and probe scaling |
Eddy-Current Probe Scaling and Channel Isolation Integrity Behavior
The module processes eddy-current probe inputs through internal scaling circuits aligned with Bently Nevada 3500 series signal conditioning architecture.
Gap voltage validation centered around a -10 VDC reference enables stable probe linearization across full operating displacement ranges.
Galvanic isolation between channels eliminates ground loop propagation and reduces cross-channel interference during multi-sensor acquisition.
Each channel operates with independent analog front-end sampling, ensuring separation of vibration and shaft position signal domains under dynamic rotor conditions.
Hot-swap logic is implemented at the backplane interface level, allowing module replacement without interruption of adjacent monitoring channels.
Frequently Asked Questions (FAQ)
Q: Does the 136179-01 maintain channel independence during operation?
A: Yes. Each of the four input channels is galvanically isolated with independent signal conditioning paths.
Q: Can the module be replaced without powering down the 3500 rack?
A: Yes. The module supports hot-swap insertion and removal through backplane-controlled synchronization.
Q: How is probe calibration referenced internally?
A: Gap voltage validation is referenced to a -10 VDC target for eddy-current probe scaling alignment.
Field Installation Guidelines
Install the module into a designated slot in the Bently Nevada 3500 rack with full backplane engagement to ensure proper channel initialization. Avoid partial seating, which may cause isolation monitoring faults or signal dropout.
Use shielded cabling for all proximity probe inputs. Terminate cable shields at a single ground point to prevent ground loop formation across isolated channels.
Maintain separation between low-level sensor wiring and high-power switching conductors. Route signal cables perpendicular when crossing unavoidable interference paths.
Verify channel configuration and probe calibration parameters before commissioning to ensure correct scaling within the linear measurement range.
