Description

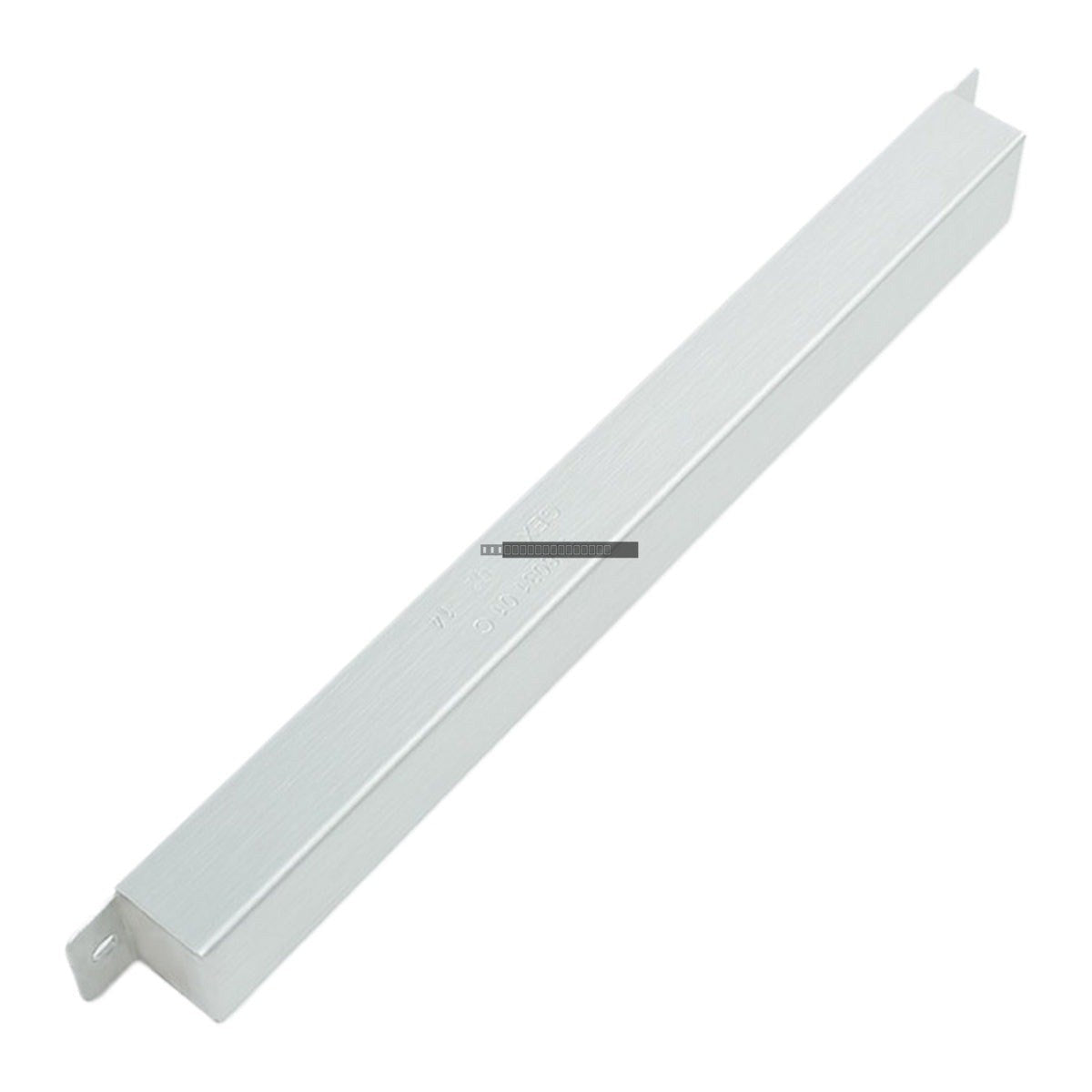

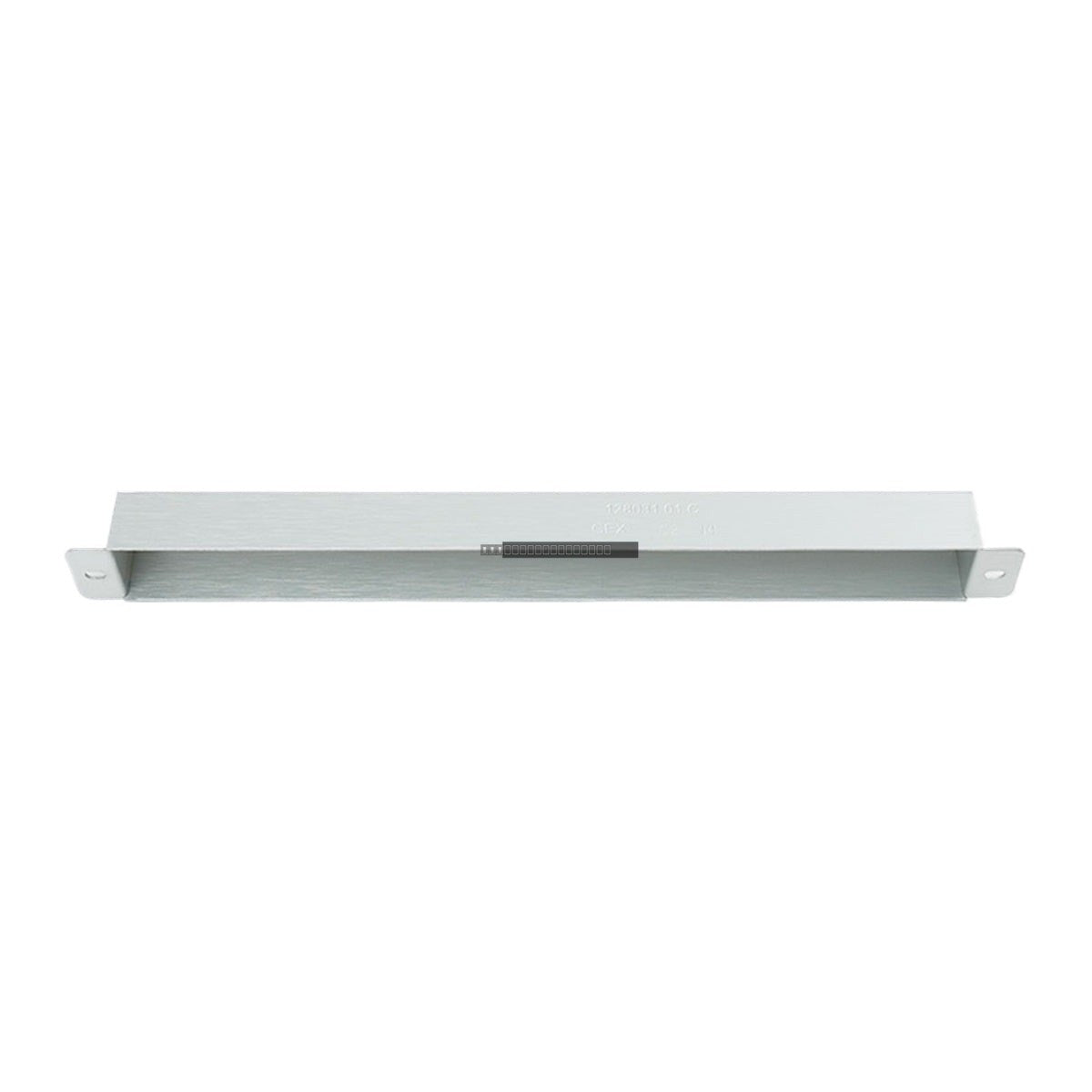

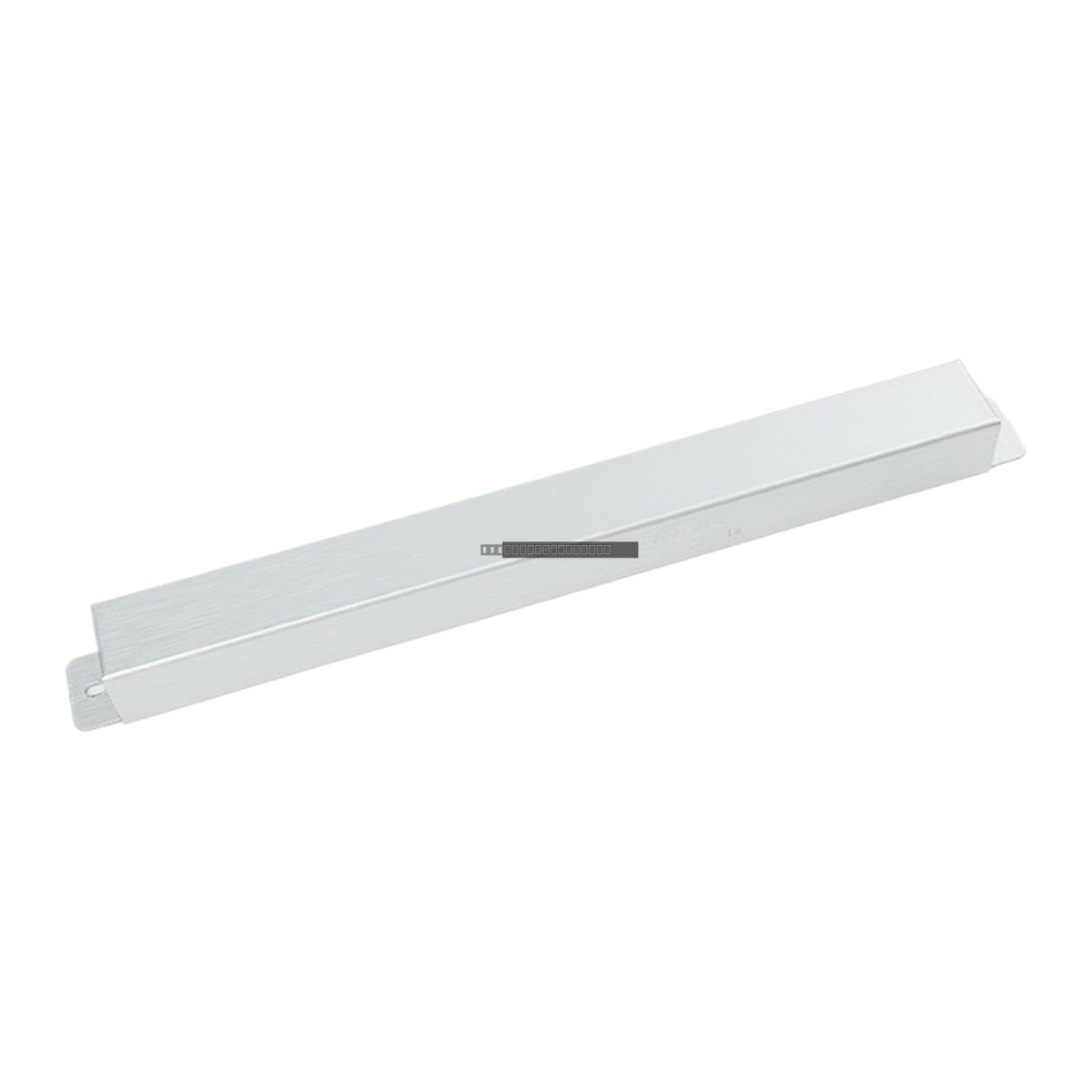

The Bently Nevada 128031-01C is a rear connector cover, also known as a blank filler plate, engineered for the Bently Nevada 3500 Series machinery protection system. This component is essential for maintaining the integrity of the 3500 rack by sealing unused slots, which protects the internal backplane and module connections from environmental contaminants such as dust, moisture, and debris.
Features
- Designed specifically for Bently Nevada 3500 System racks.
- Constructed from durable aluminum for structural rigidity.
- Prevents bypass airflow, ensuring optimal cooling efficiency for active modules within the rack.
- Provides a professional, clean finish to the rear of the monitoring system.
Applications
- Steam, gas, and hydro turbines.
- Centrifugal, reciprocating, and screw compressors.
- Large electric motors and synchronous or induction generators.
- Industrial pumps, fans, and blowers.
Technical Specifications
| Model |
128031-01C |
| Manufacturer |
Bently Nevada |
| Material |
Aluminum |
| Operating Temperature |
-40 degC to +85 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Humidity |
0 to 95% RH (non-condensing) |
| Compatibility |
3500 Series System Rack |
Installation Guidelines
- Ensure the rack is powered down or follow site-specific safety protocols before installing or removing any components near the backplane.
- Align the cover with the empty slot on the rear of the 3500 rack.
- Secure the plate using the provided mounting points to ensure a proper seal.
- Always install blanking plates in all unused slots to maintain proper internal airflow and prevent overheating of adjacent active modules.
- When working near the open backplane, adhere to standard ESD (Electrostatic Discharge) safety practices to protect sensitive electronic components.
FAQ
What is the primary purpose of the 128031-01C?
This cover is used to fill empty slots in a 3500 series rack. It protects the backplane from debris and ensures that cooling air is directed correctly through active modules rather than escaping through open gaps.
Is this part compatible with all 3500 racks?
Yes, it is designed for standard 3500 machinery protection system racks. It is often paired with a front blank monitor panel to fully enclose an unused slot.
Does this cover require special tools for installation?
Installation is straightforward and typically requires standard hand tools to secure the plate to the rack frame.
