Description

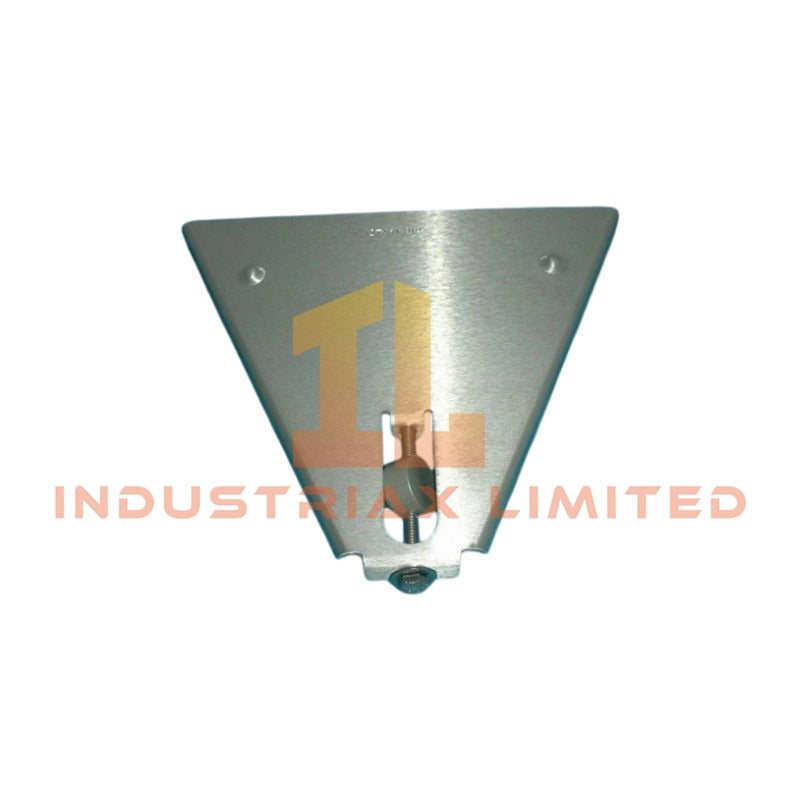

Bently Nevada 127461-01 Rack Mount Unit Module

Configured for rack integration and machinery monitoring hardware installation, the Bently Nevada 127461-01 (127461-01 Rack Mount Unit Module) provides mechanical support and electrical integration within Bently Nevada monitoring rack platforms.

Hardware Specifications

Parameter	Specification
Model	127461-01
Brand	Bently Nevada
Product Type	Rack Mount Unit Module
Origin	USA
Weight	Approx. 0.25 kg - 0.6 kg (configuration dependent)
Dimensions	Not specified by manufacturer
Operating Temp	-40 deg C to +85 deg C
Power Consumption	Passive rack mounting component; no independent power consumption specified
Mounting Type	Rack mounting
System Integration	Bently Nevada rack-based monitoring systems
Application	Machinery condition monitoring and vibration monitoring hardware integration
Communication Interface	System-dependent rack communication interface
Installation Location	Industrial control cabinets and monitoring racks

Eddy-Current Monitoring Rack Integration

The 127461-01 module provides the physical rack interface required for Bently Nevada monitoring system assemblies. It supports installation alignment between monitoring hardware modules and the rack structure used for vibration and machinery protection applications.

Within Bently Nevada TSI and machinery monitoring architectures, rack assembly design maintains signal routing organization for proximity probe inputs, vibration measurement channels, and diagnostic modules. The rack structure supports controlled module positioning and reduces wiring complexity during system integration.

Frequently Asked Questions

Q: Does the 127461-01 provide independent signal measurement functions?
A: No. The 127461-01 is a rack mount unit module designed for hardware installation and system integration. Measurement processing is performed by compatible monitoring modules installed within the rack system.

Q: Can the 127461-01 be installed in any industrial rack system?
A: No. The module is intended for compatible Bently Nevada rack assemblies. Installation should verify mechanical fit, electrical interface compatibility, and system configuration requirements.

Q: Does the 127461-01 require separate power wiring?
A: The module does not have an independently specified power supply requirement. Power and communication functions depend on the installed monitoring rack configuration.

Field Installation Guidelines

• Install the module only in a compatible Bently Nevada rack assembly.
• Verify rack slot allocation and mechanical alignment before inserting connected monitoring hardware.
• Maintain proper cabinet grounding practices for installed monitoring modules and signal wiring.
• Separate vibration signal cables from high-current power cables to reduce electrical interference.
• Confirm rack communication connections and module positioning during commissioning.
• Follow the applicable Bently Nevada system installation documentation for configuration procedures.

Specifications

• Brand: Bently Nevada

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
