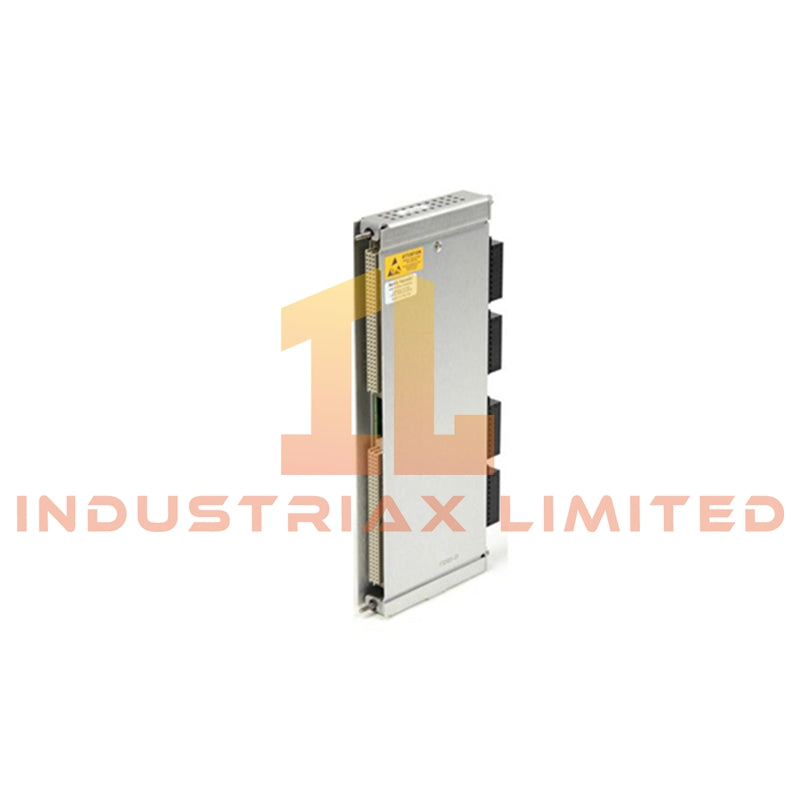

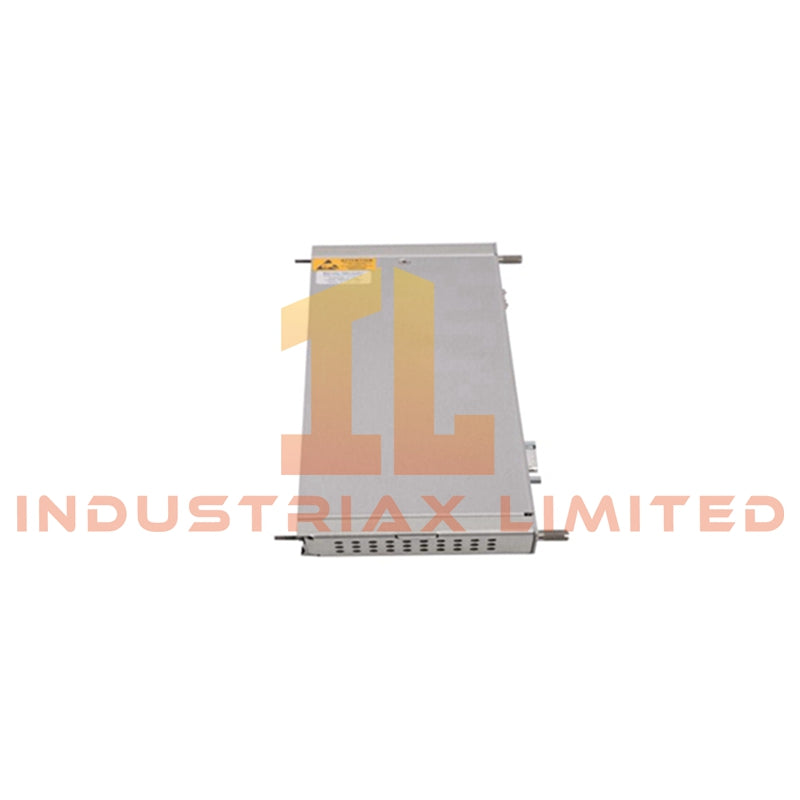

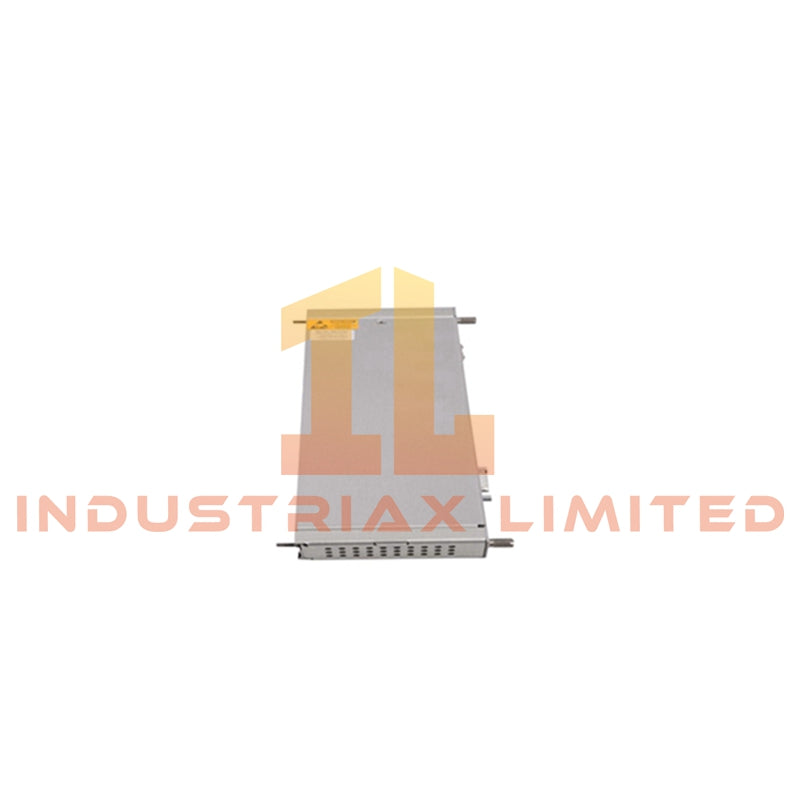

Bently Nevada 125740-01 Relay I/O Module
The Bently Nevada 125740-01, also cataloged as the 125740 Relay I/O Module, operates as a dedicated hardware component for alarm relay execution and shutdown signal transfer within Bently Nevada 3500 Machinery Protection System racks.
Hardware Specifications
| Parameter |
Specification |
| Model |
125740-01 |
| Brand |
Bently Nevada |
| Origin |
United States |
| Product Type |
Relay I/O Module |
| System Compatibility |
Bently Nevada 3500 Machinery Protection System |
| Relay Channels |
4 independent channels |
| Relay Type |
Form C SPDT |
| Contact Configuration |
Normally-open and normally-closed |
| Input Voltage |
24 VDC |
| Input Voltage Range |
10-30 VDC depending on configuration |
| Output Signal |
Contact closure outputs |
| Optional Interface |
4-20 mA loop support on variant configurations |
| Dimensions |
241 mm x 24 mm x 103 mm |
| Weight |
0.40 kg |
| Operating Temp |
-30 deg C to +65 deg C |
| Alternate Operating Temp |
Some sources specify -40 deg C to +85 deg C |
| Ingress Protection |
IP20-IP67 depending on configuration |
| Certifications |
CE, UL, ATEX, IECEx |
| Mounting Method |
Rack-mounted |
| Power Consumption |
Not specified in supplied documentation |
| Communication Interface |
Backplane interface to monitoring rack |
Gap Voltage Integrity and Relay Signal Isolation
The relay I/O module interfaces monitoring channels with external shutdown systems through isolated relay contact outputs. Internal routing architecture minimizes interference between relay switching activity and adjacent low-level vibration monitoring circuits located within the same rack structure.
In machinery protection systems utilizing eddy-current transducers, gap voltage verification near the standard -10 VDC reference remains necessary during monitor commissioning and shutdown logic validation. Improper grounding or mixed cable routing may introduce transient switching noise into shaft vibration or axial position measurement channels.
The module supports relay execution sequences associated with rotor dynamic alarm conditions generated by displacement, velocity, and seismic monitors.
Frequently Asked Questions
Q: Are relay outputs individually configurable?
A: The supplied specifications indicate four independent software-configurable relay channels supporting normally-open and normally-closed logic arrangements.
Q: Can the module directly interface with external DCS or ESD systems?
A: The module functions as an intermediary relay interface between 3500 monitoring modules and external plant shutdown or annunciation systems.
Q: What installation factor most affects relay signal stability?
A: Physical separation between relay output wiring and low-level transducer cabling reduces electrical noise coupling during switching events.
Field Installation Guidelines
-
Verify relay contact ratings before connection to external trip solenoids or annunciation circuits.
-
Maintain separate cable trays for relay outputs and vibration transducer wiring.
-
Confirm rack grounding continuity before energizing the module.
-
Avoid parallel routing with high-current motor feeder cables.
-
Inspect rear connector seating during maintenance intervals.
-
Use shielded instrumentation cable where relay outputs interface with sensitive control inputs.
-
Validate shutdown logic operation during commissioning procedures.
