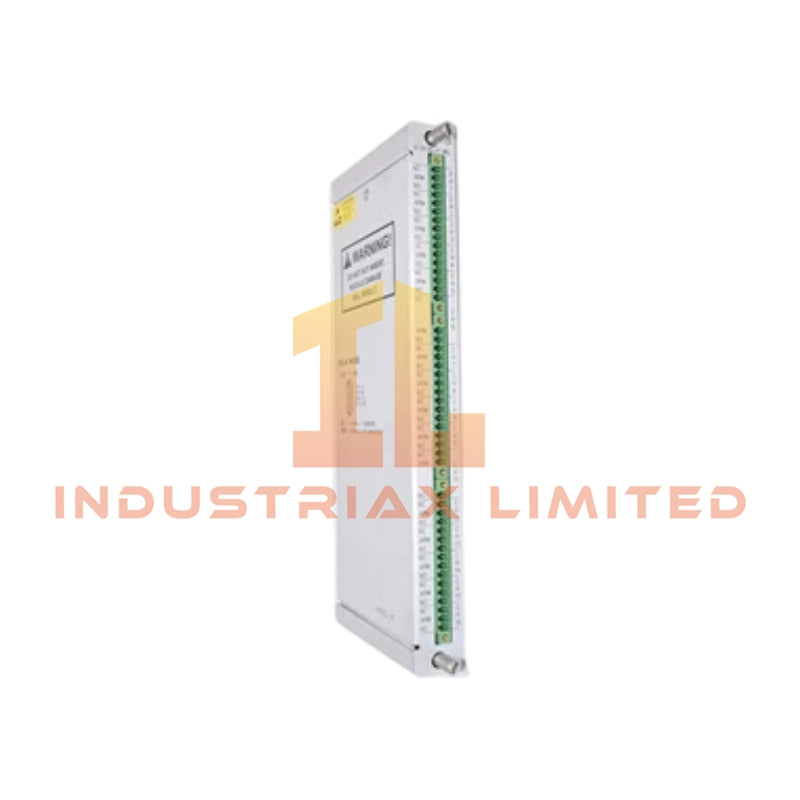

Bently Nevada 125710-01 3500 Series 4-Channel Relay I/O Module

The Bently Nevada 125710-01, also cataloged as the 125710-01 4-Channel Relay I/O Module, operates as a dedicated hardware component for relay signal execution within the Bently Nevada 3500 Series Machinery Protection System. The module receives alarm logic signals from monitoring modules and controls external relay contact circuits.

Hardware Specifications

Parameter	Specification
Model	125710-01
Brand	Bently Nevada
Origin	USA
Module Type	4-Channel Relay Input/Output Module
System Compatibility	Bently Nevada 3500 Series Machinery Protection System
Function	Relay output interface for alarm and shutdown signal execution
Channel Count	4 independent relay channels
Relay Type	Electromechanical SPDT (Form C) relay contacts
Contact Rating	2 A at 30 VDC or 250 VAC resistive load
Operating Voltage	+24 VDC via 3500 rack backplane
Weight	Approx. 0.45 kg
Dimensions	241 mm x 24.4 mm x 99.1 mm
Operating Temp	-30 deg C to +65 deg C
Storage Temp	-40 deg C to +85 deg C
Humidity	Up to 95% RH, non-condensing
Power Consumption	Approx. 2.8 W
Rack Position	Any slot to the right of the Main Interface Module

Rotor Protection Relay Logic Interface

The Bently Nevada 125710-01 module processes relay commands generated by 3500 monitoring modules and transfers these commands to external control circuits. In addition, the module supports programmable AND/OR voting logic to define relay activation conditions.

The module operates with the 3500 system architecture where vibration, position, speed, and other machinery parameters are evaluated before relay outputs change state. Therefore, the relay contacts normally connect to PLC inputs, shutdown logic circuits, annunciators, or interlock systems rather than directly switching high-power loads.

For machinery monitoring applications, the 3500 platform validates sensor signals through functions such as eddy-current probe scaling and gap voltage measurement. The relay interface then executes the configured protection response after the monitoring logic confirms an alarm condition.

Frequently Asked Questions

Q: Can the 125710-01 relay contacts directly control high-power motors or actuators?
A: No. The onboard relay contacts are pilot contacts designed for signaling circuits, PLC inputs, interlocks, or external relay interfaces. External switching devices should control higher current loads.

Q: Does the 125710-01 support hot replacement in a powered 3500 rack?
A: The module supports replacement in a powered rack when the correct system maintenance procedures and bypass conditions are applied. The connected protection logic must be evaluated before removal.

Q: How does the module receive relay activation commands?
A: The module receives relay control commands from the 3500 system backplane after monitoring modules process configured alarm conditions and logic states.

Field Installation Guidelines

Install the Bently Nevada 125710-01 module only in compatible 3500 rack positions located to the right of the Main Interface Module.

Use proper cabinet grounding practices and maintain separation between relay wiring and high-voltage power conductors. Connect shielded signal cables according to the system grounding design to reduce electrical interference.

Verify relay contact ratings before connecting external circuits. Use external interposing relays or contactors when the controlled device exceeds the module contact capability.

Confirm the 3500 rack configuration, module addressing, and relay logic settings before placing the machinery protection system into operation.
