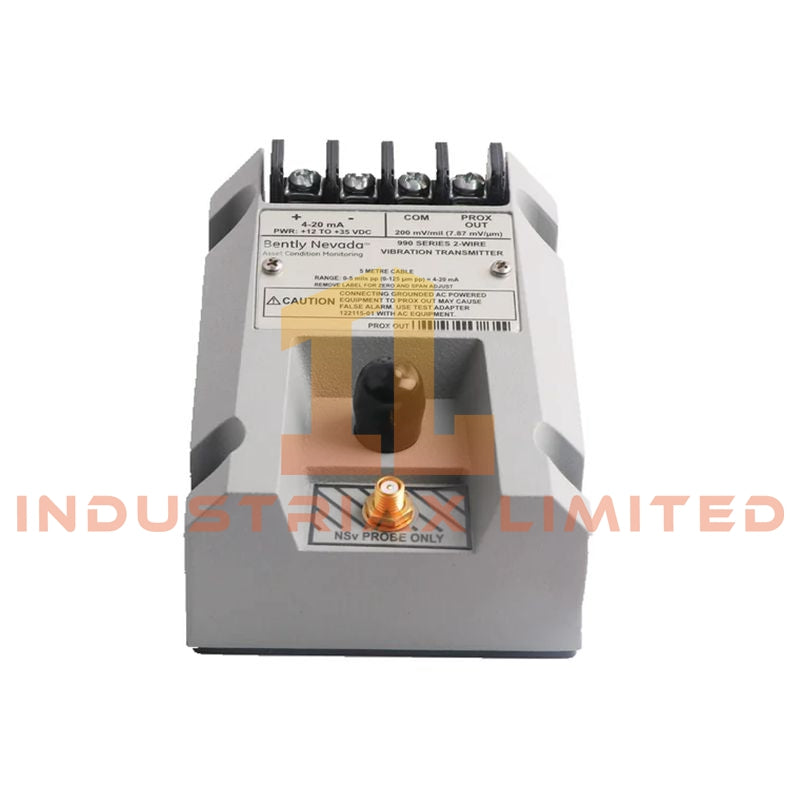

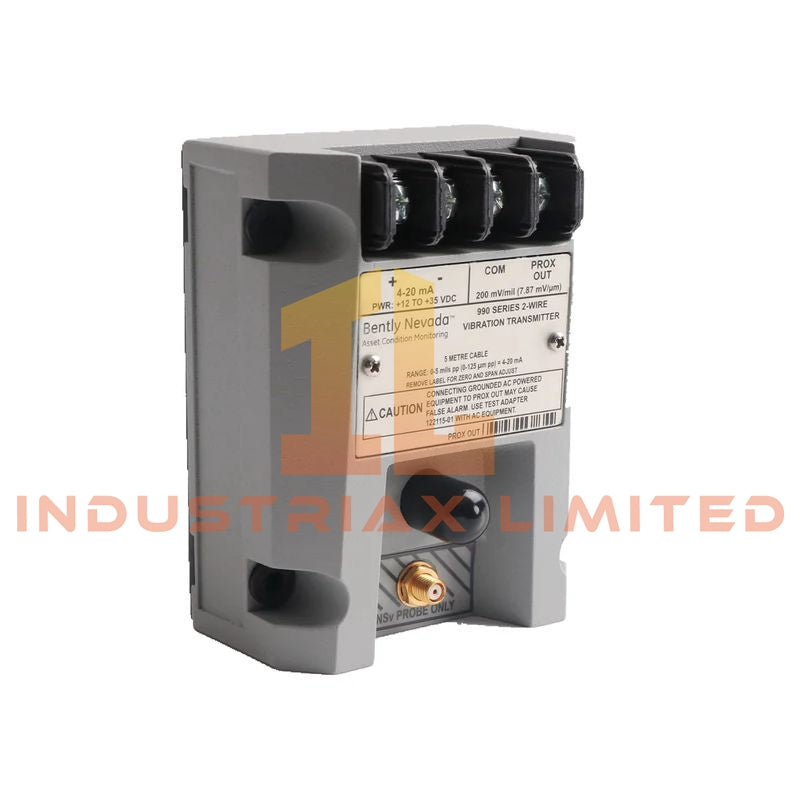

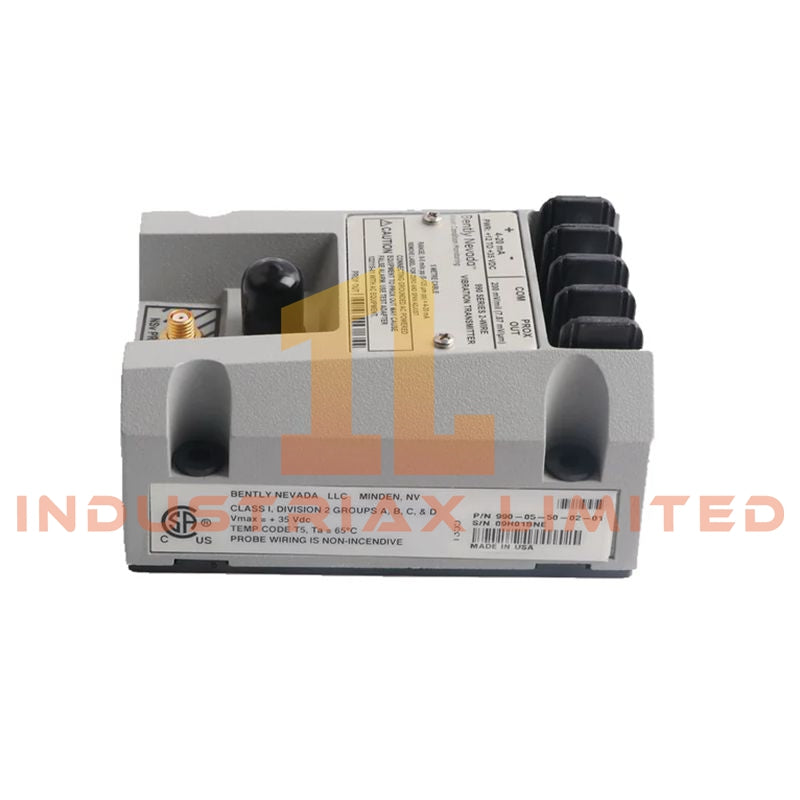

Bently Nevada 124534-01 Proximitor Transducer Module
Configured for shaft vibration and gap position monitoring in Bently Nevada TSI systems, the Bently Nevada 124534-01 (124534 Proximitor Transducer Module) provides direct electrical conversion of eddy-current probe impedance variation into a proportional negative DC output signal for rotor dynamic measurement circuits.
Hardware Specifications
| Parameter |
Specification |
| Model |
124534-01 |
| Brand |
Bently Nevada |
| Origin |
United States |
| Product Type |
Proximitor Transducer Module |
| Supply Voltage |
-24 VDC |
| Linear Sensitivity |
200 mV/mil |
| Sensitivity Equivalent |
Approximately 7.87 V/mm |
| Measurement Range |
10-90 mils (0.25-2.30 mm) |
| Output Signal |
Negative DC voltage proportional to probe gap |
| Connector Type |
3-pin |
| Housing Material |
Aluminum |
| Mounting Method |
DIN rail mounting |
| Weight |
0.75 lbs |
| Compatibility |
Bently Nevada 3300 and 3500 monitoring systems |
| Calibration Reference |
-10 VDC at 50 mil gap target |
| Signal Interface |
Eddy-current proximity probe input |
Eddy-Current Probe Scaling and Gap Voltage Validation
The module operates as a calibrated Proximitor interface for eddy-current probe assemblies. Linear scaling is maintained at 200 mV/mil throughout the specified operating span between 10 mils and 90 mils.
Gap voltage verification is typically referenced at approximately -10 VDC during probe alignment at the 50 mil mechanical center position. Incorrect target gap adjustment may introduce amplitude deviation in radial vibration channels and axial position measurements.
Internal circuit construction incorporates shielding methods intended to reduce EMI and probe cable cross-talk effects in turbine supervisory instrumentation installations where parallel routing of transducer cables exists.
Frequently Asked Questions
Q: Does the 124534-01 support hot replacement during system operation?
A: The supplied documentation does not specify online hot-swap capability. Standard industrial practice is to isolate monitor channel power before transducer replacement to prevent incorrect gap reference readings.
Q: What type of output does the module generate?
A: The module provides a negative DC voltage output proportional to probe-to-target distance variation derived from eddy-current signal conditioning circuitry.
Q: What installation factor most directly affects measurement accuracy?
A: Probe gapping accuracy and shield grounding continuity directly influence linear response stability and vibration signal integrity. Improper shield termination may increase electrical noise coupling.
Field Installation Guidelines
-
Install the module on grounded DIN rail structures with low impedance bonding continuity.
-
Maintain physical separation between transducer cabling and high-voltage motor conductors.
-
Use shielded extension cable assemblies approved for matching eddy-current probe systems.
-
Avoid sharp cable bending near probe connectors to minimize impedance variation.
-
Confirm target material compatibility before calibration procedures.
-
Validate gap voltage prior to machine startup and after rotor maintenance activity.
-
Terminate cable shielding at the designated instrumentation ground point only to reduce ground-loop current circulation.
