Overview

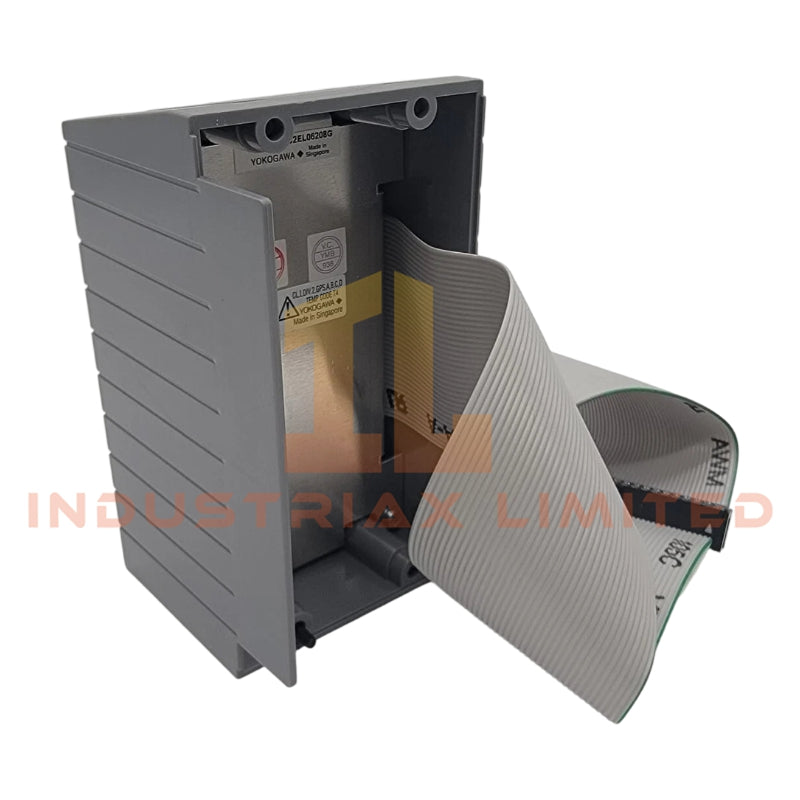

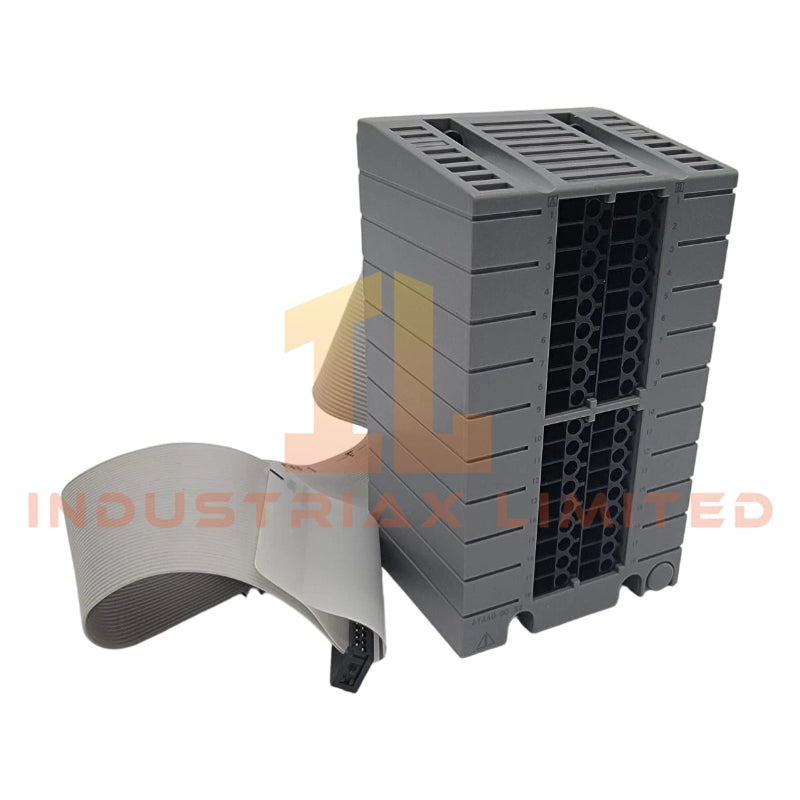

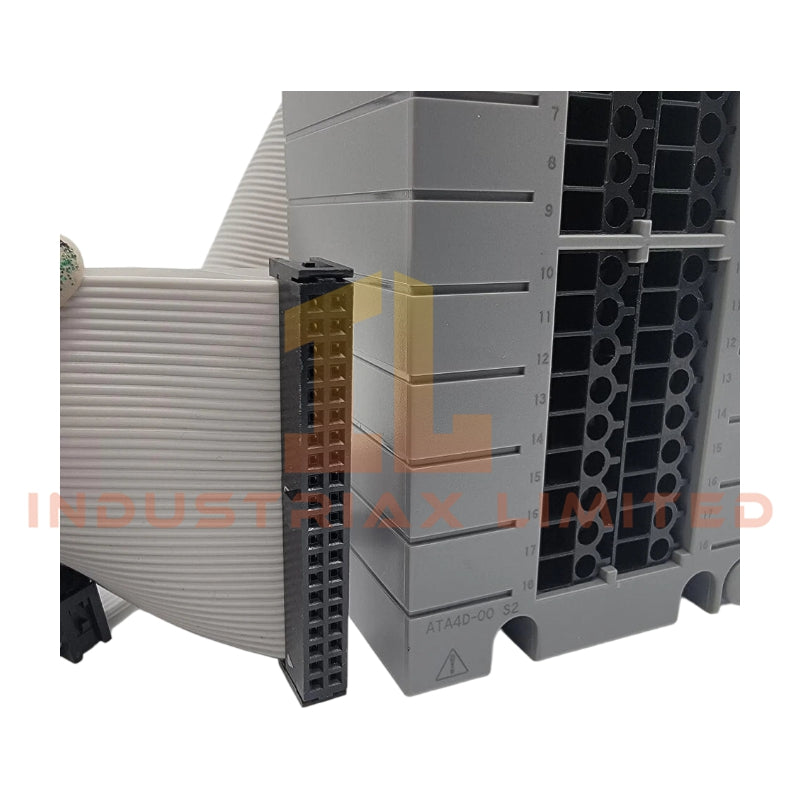

The ATA4D-00 is a dual-redundant pressure clamp terminal block engineered by Yokogawa for industrial process control applications. It provides secure and reliable connections for multiple pressure transmitters and measurement devices, ensuring system stability and accurate data transmission. This terminal block is designed for integration with Yokogawa’s CENTUM VP system and supports high-density signal routing.
Technical Specifications
-
Type: Dual-Redundant Pressure Clamp Terminal Block
-
Model: ATA4D-00
-
Channels: 16 independent channels
-
Connection Method: Pressure clamp for reliable electrical contact
-
Surge Absorber: Optional installation for transient protection
-
Compatible Systems: Yokogawa CENTUM VP control systems
-
Weight: Approximately 0.30 kilograms
-
Mounting: DIN rail compatible for industrial panel installation
-
Operating Temperature Range: -20 to 70 degrees Celsius
-
Material: High-durability insulating polymer, corrosion-resistant terminals
-
Electrical Rating: Supports standard industrial signal voltage and current ranges
Applications
Ideal for process control environments where precise pressure monitoring is critical. Common use cases include chemical plants, power generation facilities, and manufacturing lines requiring dual-redundant pressure inputs.
FAQ
Q: Can the ATA4D-00 be used with non-Yokogawa transmitters?
A: It is optimized for Yokogawa transmitters, but compatible pressure signals from standard industry transmitters can be supported if wiring and signal levels match.
Q: How is redundancy achieved?
A: The dual-redundant design allows two independent signal paths per channel, improving reliability in critical systems.
Q: Is surge protection included?
A: Surge absorbers are optional and can be added to each channel depending on field requirements.
