Description

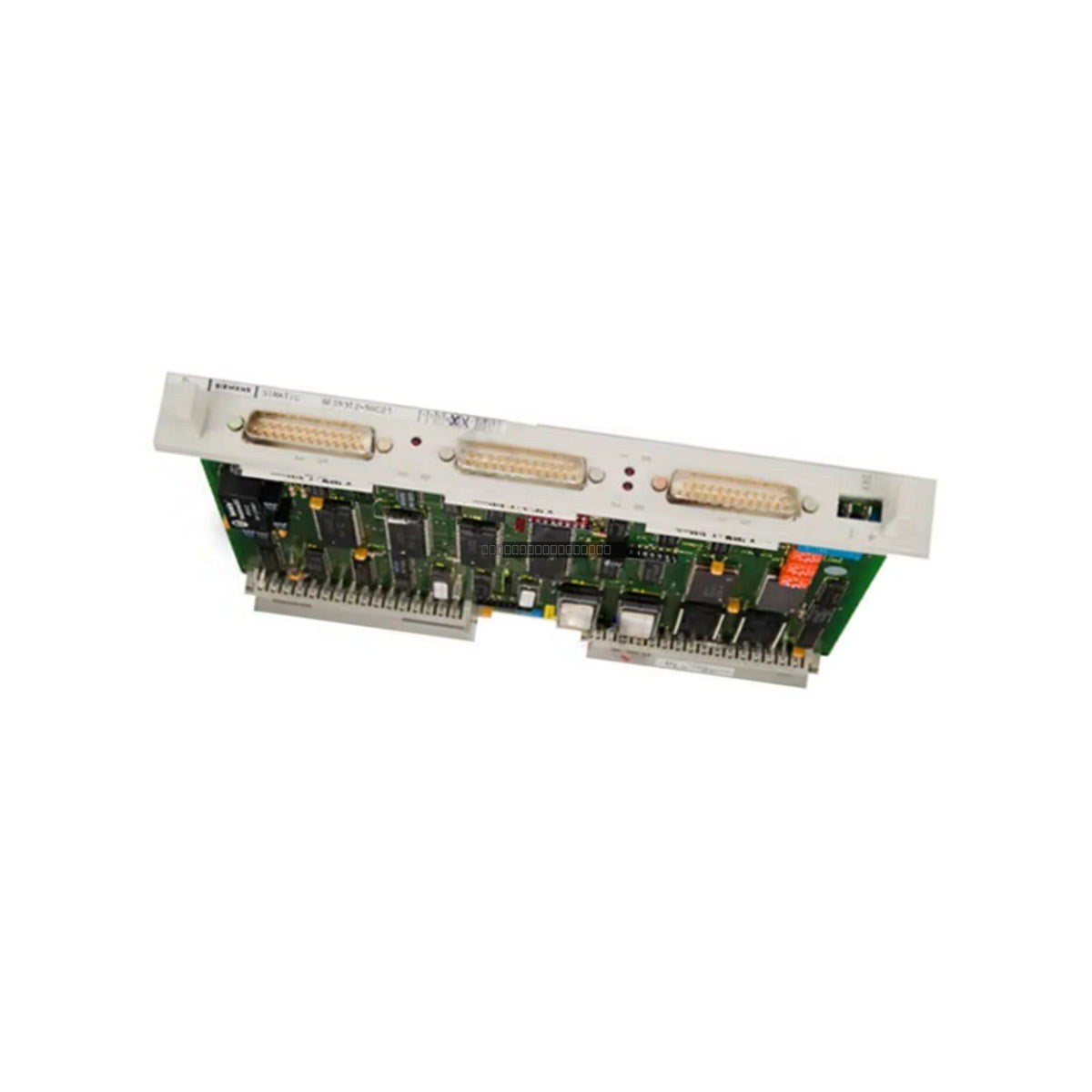

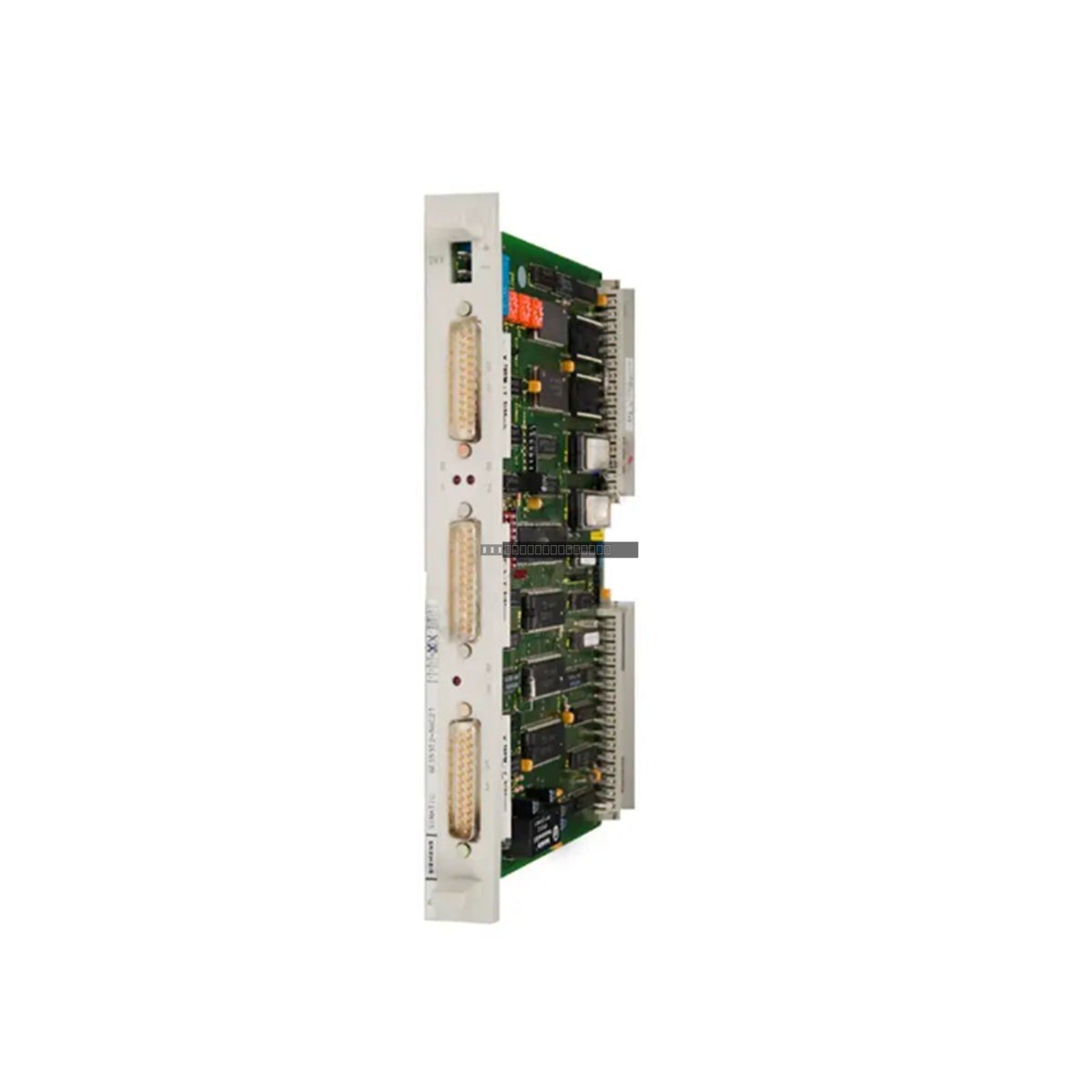

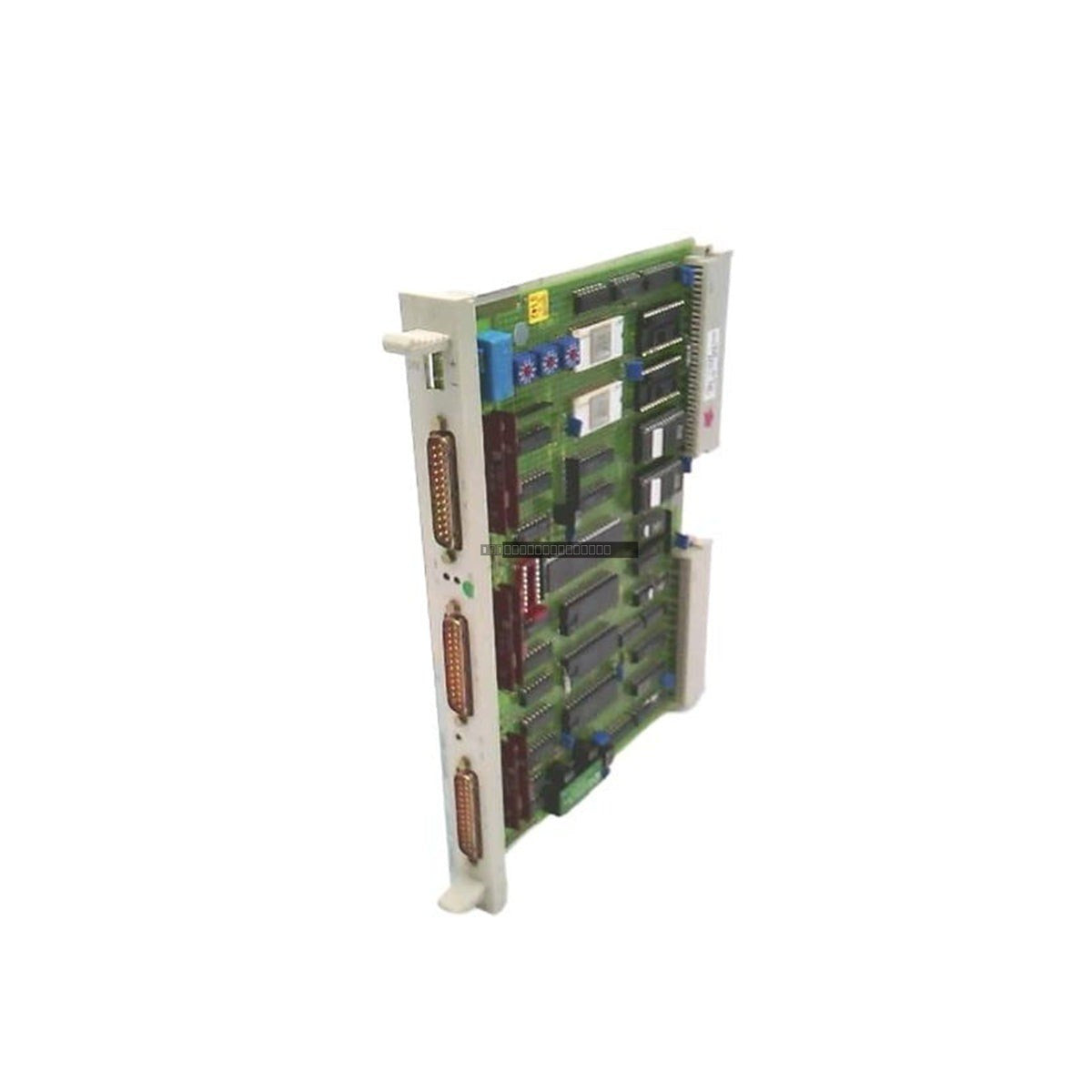

The Siemens 6ES5512-5BC21 is an AS512 interface module designed for integration within legacy Siemens Simatic S5-130 and S5-150 automation architectures. This module serves as a dedicated expansion board, facilitating high-speed communication and bus expansion between the central controller and distributed I/O racks. It is engineered for demanding industrial environments, ensuring consistent data throughput and maintaining deterministic timing in critical control applications.
Features
- Provides reliable physical and electrical bridging across the Simatic S5 backplane bus.
- Features dedicated transceiver circuits for noise immunity and cross-talk suppression.
- Optimizes CPU performance by offloading bus management tasks at the hardware layer.
- Supports long-distance sub-rack connectivity without signal degradation.
- Designed for high-availability performance in multi-tier control topologies.
Applications
This module is typically utilized in large-scale industrial automation systems, including chemical processing plants, power generation facilities, and mining operations, where robust, long-distance communication between central controllers and distributed I/O is required.
Technical Specifications
| Model |
6ES5512-5BC21 |
| Brand |
Siemens |
| Series |
Simatic S5-130/150 |
| Module Type |
AS512 Interface Module |
| Operating Temperature |
0 to 60 deg C |
| Power Consumption |
5.5 W (nominal via backplane) |
| Bus Protocol |
Proprietary Simatic S5 Parallel Backplane Bus |
| Max Expansion Distance |
200 m (with shielded cables) |
Installation Guidelines
- Ensure the system power is completely disconnected before inserting or removing the module from the rack.
- Install the module into the designated interface slot within the S5-130 or S5-150 central rack.
- Use only approved shielded Siemens bus cables to maintain signal integrity and meet the 200 m distance rating.
- Ensure proper grounding of the rack to mitigate electromagnetic interference.
- Handle the module using ESD-safe practices to prevent damage to sensitive internal circuitry.
- Verify that the module is fully seated and the locking mechanism is engaged to ensure reliable backplane contact.
FAQ
What is the primary function of the 6ES5512-5BC21?
The 6ES5512-5BC21 acts as an interface module for the Simatic S5-130/150 series, allowing for the expansion of the backplane bus to distributed I/O racks.
What is the maximum cable distance for this module?
When using appropriate shielded Siemens bus cables, the module supports expansion distances of up to 200 meters.
Does this module require external power?
No, the module is powered directly via the Simatic S5 backplane with a nominal consumption of 5.5 W.
