Description

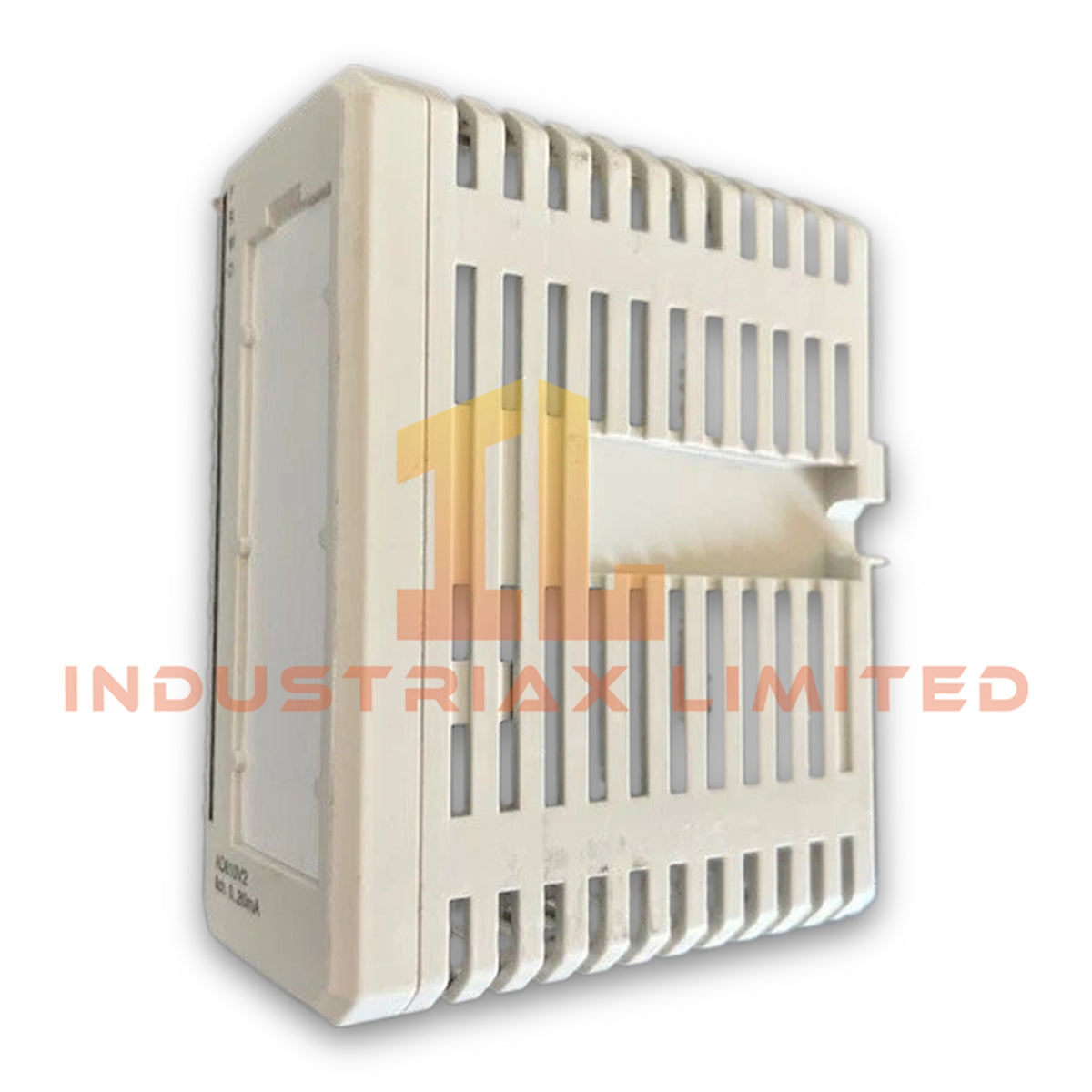

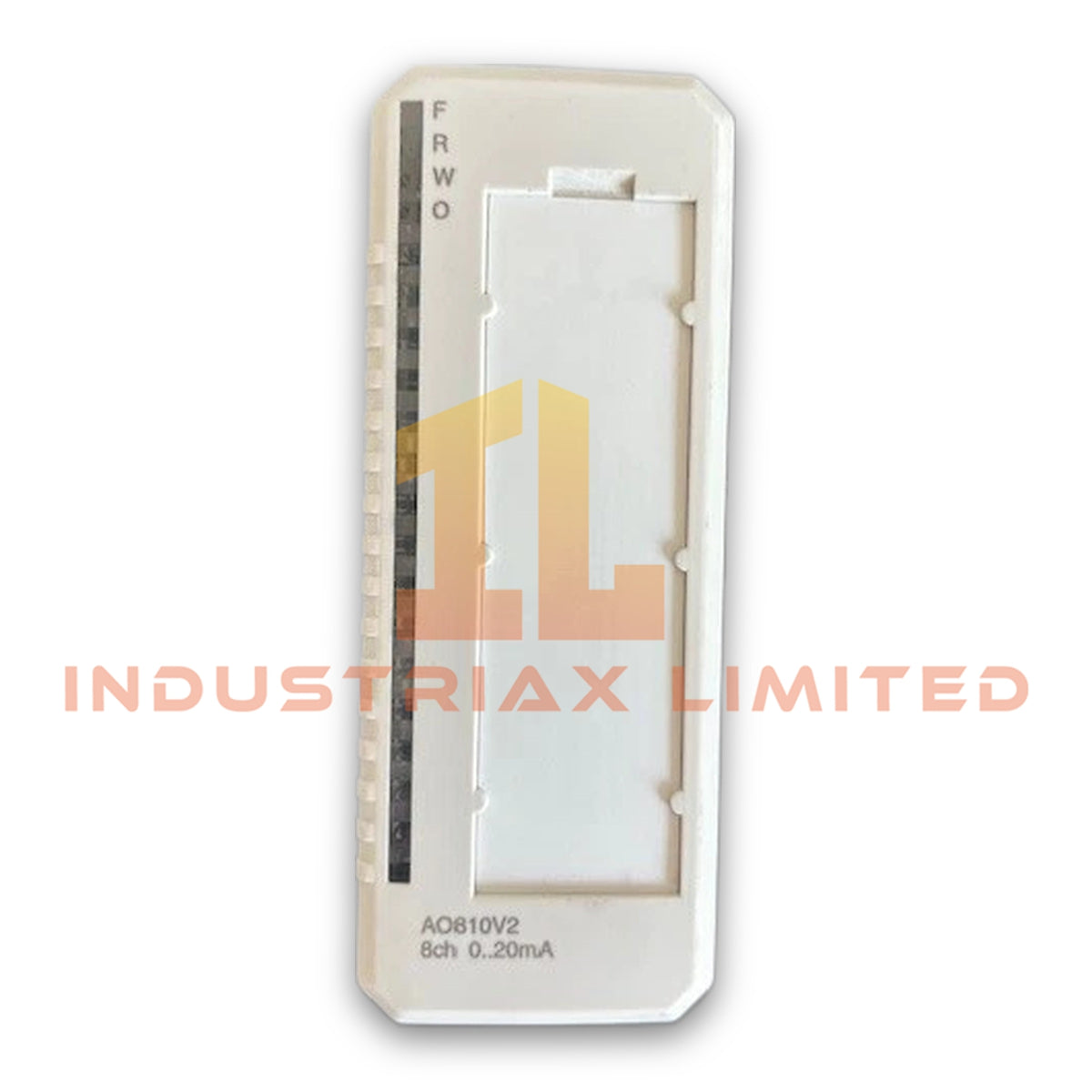

ABB AO810V2 3BSE038415R1 Analog Output Module
Configured for analog current signal execution in ABB S800 I/O systems, the ABB AO810V2 3BSE038415R1 (AO810V2 Analog Output Module) provides direct physical output control for 0-20 mA and 4-20 mA field devices within AC 800M and ABB 800xA platforms.
Hardware Specifications
Parameter
Specification
Model
AO810V2 3BSE038415R1
Brand
ABB
Product Type
Analog Output Module
Series
ABB S800 I/O
Origin
Sweden
Weight
0.18 kg
Dimensions
4.5 x 10.5 x 12 cm
Operating Temp
Not specified
Power Consumption
2.3 W
Output Channels
8 analog output channels
Signal Specification
0-20 mA, 4-20 mA
Resolution
14 bit
Isolation
Groupwise isolated from ground
Under/Over Range
- / +15%
Rise Time
0.35 ms at PL = 500 ohm
Update Cycle Time
<= 2 ms
Maximum Field Cable Length
600 m
Rated Insulation Voltage
50 V
Dielectric Test Voltage
500 V AC
Current Consumption +5 V Modulebus
Maximum 70 mA
Current Consumption +24 V External
245 mA
ABB Industrial I/O Architecture and Backplane Communication
The AO810V2 operates as an S800 I/O analog output device connected through the ABB control system communication structure. The module receives output commands from the controller and converts digital values into continuous current signals through integrated digital-to-analog conversion circuits.
Additionally, the module supports diagnostic feedback by reading back serial data from the D/A converters. Therefore, the system can verify output conversion status and identify channel-level faults during operation.
The module supports I/O density scaling within ABB S800 configurations. It can be integrated with AC 800M controllers and ABB 800xA automation environments where deterministic module communication and structured I/O management are required.
Frequently Asked Questions
Q: How many analog output channels does the AO810V2 3BSE038415R1 provide? A: The AO810V2 provides 8 unipolar analog output channels with selectable 0-20 mA and 4-20 mA current signals.
Q: Does the AO810V2 support channel diagnostics? A: Yes. The module performs cyclic self-diagnostics and monitors output circuitry, process power supply status, and active channel fault conditions.
Q: What type of electrical isolation does the module provide? A: The AO810V2 provides groupwise isolation from ground with a rated insulation voltage of 50 V.
Field Installation Guidelines
Install the AO810V2 module according to ABB S800 I/O system installation requirements. Verify that the Modulebus connection is correctly seated before powering the system.
Use suitable field wiring practices for analog current loops. Keep signal cables separated from high-voltage power conductors to reduce electrical interference.
Connect cable shields according to the plant grounding standard. Confirm that field devices match the configured 0-20 mA or 4-20 mA output range before commissioning.
Check module diagnostics after installation to verify power supply status, communication operation, and channel output conditions.
