Description

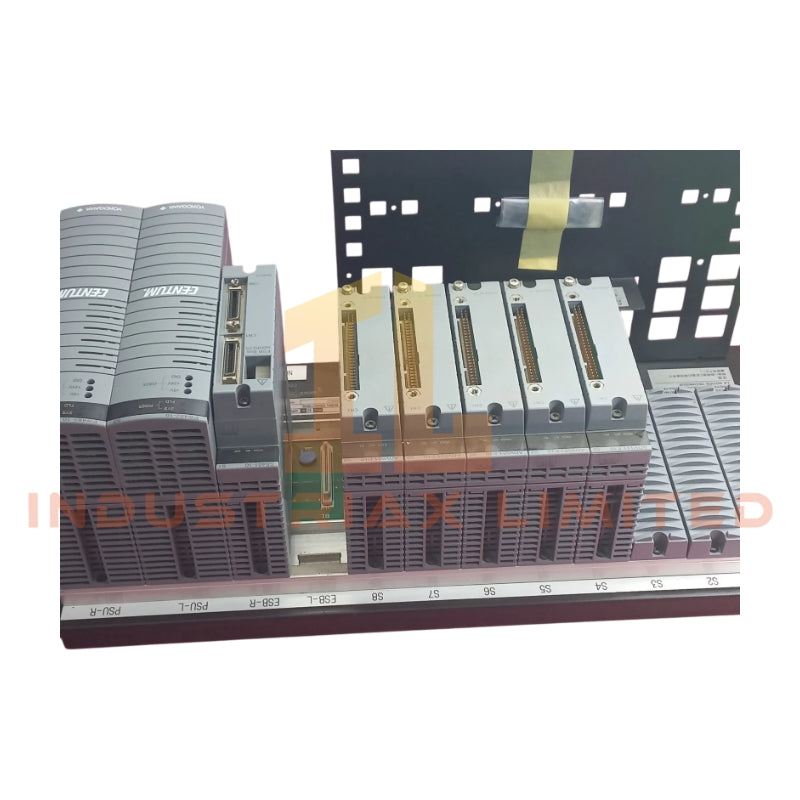

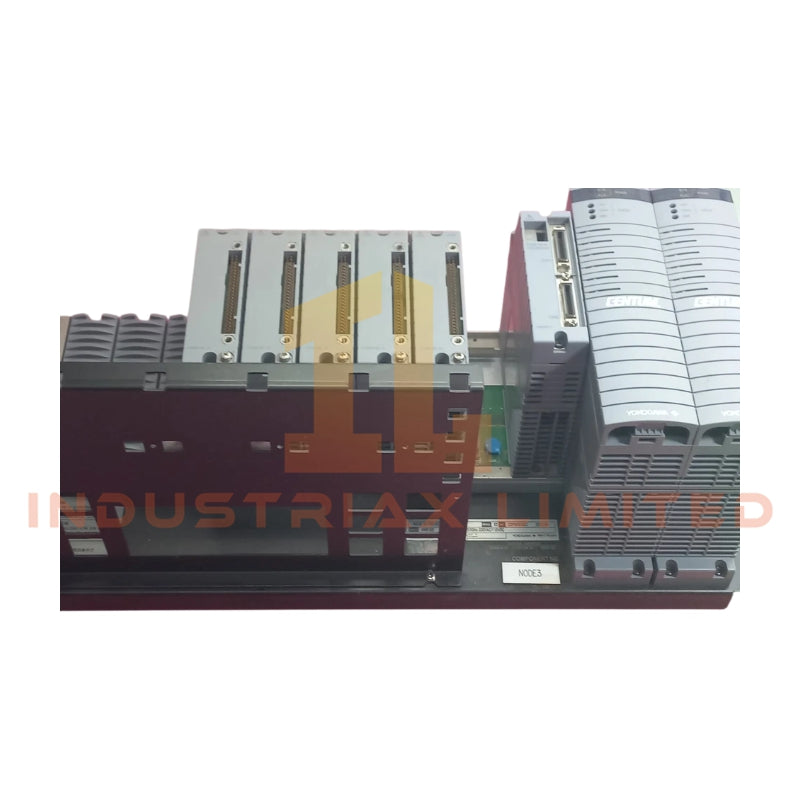

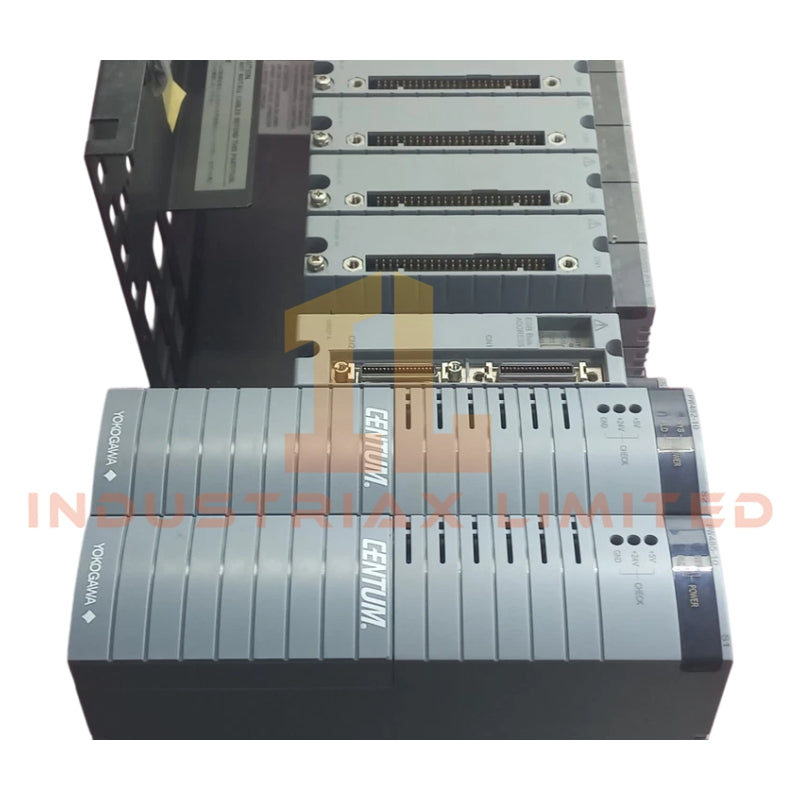

Yokogawa ANB10D-425/CU2N ESB Bus Node Unit
The Yokogawa ANB10D-425/CU2N, also cataloged as the ANB10D Node Unit for Dual-Redundant ESB Bus, operates as a dedicated hardware component for deterministic I/O expansion and process data communication within CENTUM VP and CENTUM CS 3000 platforms.
Hardware Specifications
Parameter
Specification
ModelBrand
Yokogawa ANB10D-425/CU2N
Origin
Japan
Weight
10 kg
Dimensions
19-inch rack, 5U height
OperatingTemp
0 to 60 degC
PowerConsumption
Maximum 230 VA / 120 W
IOModuleCapacity
Up to 8 single-slot FIO modules
InterfaceBus
Copper ESB via /CU2N connector
Redundancy
Dual-redundant power supply (PW482), dual-redundant SB401 ESB Interface
InputVoltage
198–264 V AC
RatedVoltage
220–240 V AC
Frequency
50/60 Hz (47–63 Hz acceptable)
Process Control Integration Features
The node supports channel-to-channel isolation to prevent signal interference between I/O modules. It also incorporates cold junction compensation (CJC) for temperature-sensitive inputs, ensuring accurate analog readings over varying environmental conditions. Communication over the ESB bus is deterministic, providing synchronized and timed execution of I/O events.
Frequently Asked Questions
Q: Does the ANB10D-425/CU2N support hot-swap of I/O modules? A: Only non-redundant FIO modules can be replaced while the system is powered; dual-redundant modules require system power down for safe insertion/removal.
Q: What is the maximum distance supported for copper ESB bus connections? A: Standard copper ESB wiring supports up to 100 meters between the node and the FCU under typical signal conditions.
Q: Can the node handle voltage fluctuations beyond the specified input range? A: Operation outside 198–264 V AC is not recommended; sustained overvoltage or undervoltage can trigger power supply fault indications.
Field Installation Guidelines
Mount in a standard 19-inch rack using M5 screws with insulation bushes to prevent ground loops.
Maintain minimum 50 mm clearance around ventilation openings to ensure adequate airflow.
Connect dual-redundant power inputs to separate branches to preserve redundancy.
Ensure ESB bus cables are shielded and grounded at a single point to avoid noise induction.
Avoid routing high-current power cables parallel to ESB communication lines to reduce crosstalk.
When installing near temperature-sensitive modules, verify cold junction compensation paths are unobstructed.
