Product Description

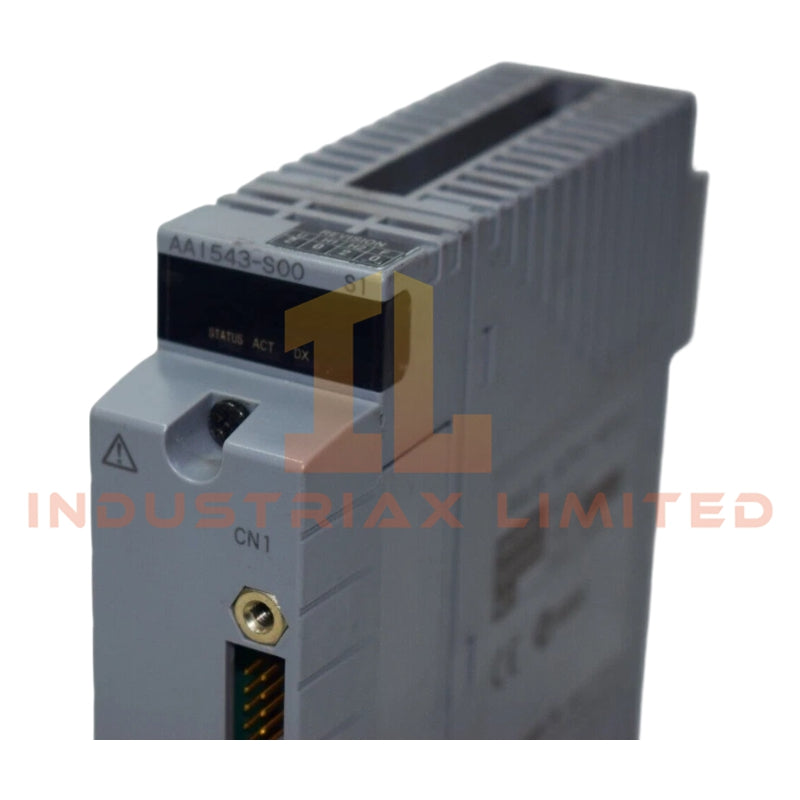

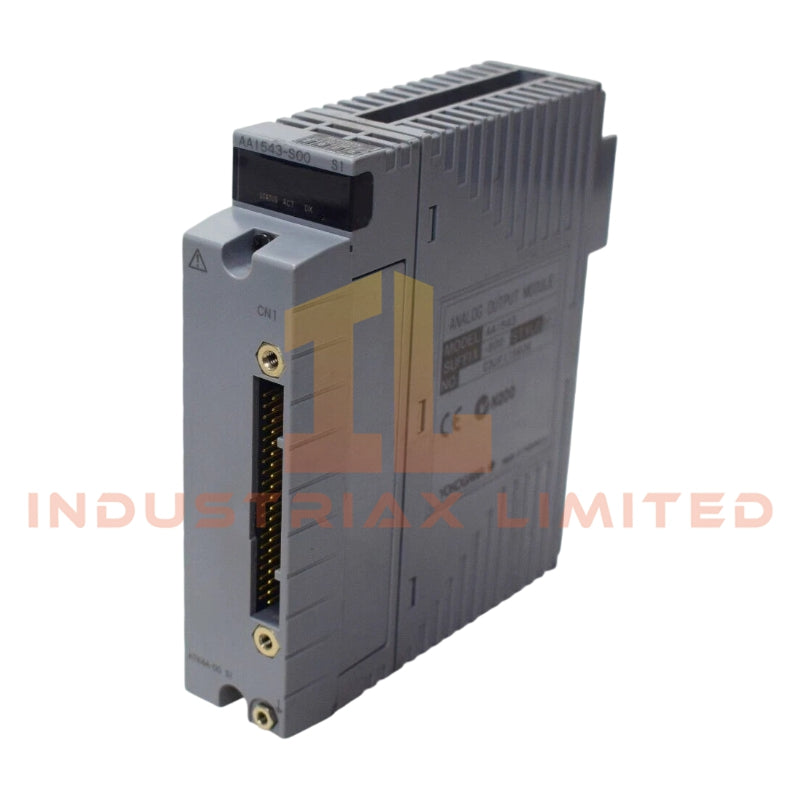

The Yokogawa AAI543-S00 is a high-performance analog output module designed for precision signal control in complex industrial environments. This module delivers reliable 4 to 20 mA output across 16 fully isolated channels, ensuring minimal interference and maximum signal integrity. Suitable for continuous process monitoring, automation control, and systems requiring high reliability, this module combines flexibility with robustness.
Key Features
-
Output Type: 4 to 20 mA across 16 channels
-
Channel Isolation: Fully isolated to prevent cross-talk and interference
-
Communication Protocol: Optional HART support for digital communication
-
Switch-over Response: Standard or fast response options available
-
Temperature Range: Operating temperature from -20 to 70 Celsius with ISA Standard G3 compliance
-
Redundancy: Configurable standard or fast redundancy for enhanced reliability
-
Safety: Versions available with or without explosion protection
Technical Specifications
| Specification |
Details |
| Module Type |
Analog Output Module |
| Channels |
16 isolated outputs |
| Output Signal |
4 to 20 mA |
| Communication |
Optional HART protocol |
| Isolation |
Full channel-to-channel isolation |
| Response Time |
Standard or fast switch-over options |
| Temperature Range |
-20 to 70 Celsius (ISA Standard G3) |
| Redundancy |
Standard and fast redundancy options |
| Safety Certification |
Optional explosion-proof version |
| Mounting |
DIN rail or panel mount compatible |
Applications
-
Process control systems requiring precise analog outputs
-
Chemical and petrochemical plants with hazardous zones
-
Refinery and power generation monitoring systems
-
Industrial automation systems with high channel density
FAQ
Q: Can this module be used in explosive environments?
A: Yes, the AAI543-S00 is available in explosion-proof configurations for hazardous areas.
Q: Does it support digital communication?
A: Yes, HART protocol is optionally supported for digital monitoring and configuration.
Q: How does the redundancy option work?
A: The module offers standard or fast redundancy configurations to ensure uninterrupted operation in critical systems.
Q: What is the operational temperature range?
A: The module operates reliably from -20 to 70 Celsius with the ISA Standard G3 option.
